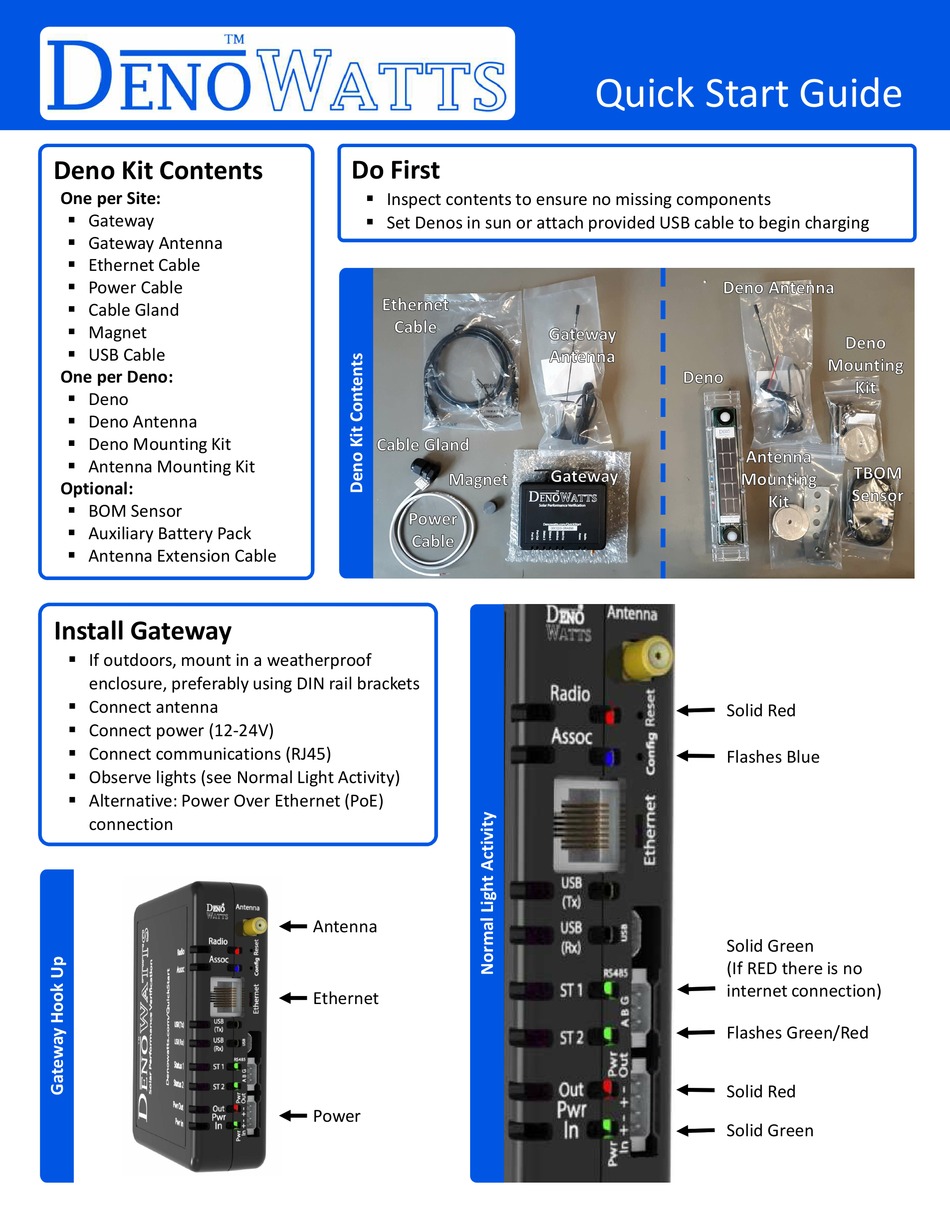

DenoWatts Deno Quick Start Manual

Deno Kit Contents
One per Site:
 Gateway
 Gateway Antenna
 Ethernet Cable
 Power Cable
 Cable Gland
 Magnet
 USB Cable
One per Deno:
 Deno
 Deno Antenna
 Deno Mounting Kit
 Antenna Mounting Kit
Optional:
 BOM Sensor
 Auxiliary Battery Pack
 Antenna Extension Cable
Install Gateway
 If outdoors, mount in a weatherproof
enclosure, preferably using DIN rail brackets
 Connect antenna
 Connect power (12-24V)
 Connect communications (RJ45)
 Observe lights (see Normal Light Activity)
 Alternative: Power Over Ethernet (PoE)
connection
Do First
 Inspect contents to ensure no missing components
 Set Denos in sun or attach provided USB cable to begin charging
Antenna
Ethernet
Power
Quick Start Guide
Solid Red
Flashes Blue
Solid Green
(If RED there is no
internet connection)
Flashes Green/Red
Solid Red
Solid Green
