Summary of Contents for SunMaxx Solar TitanPower Plus-SU2 Collector

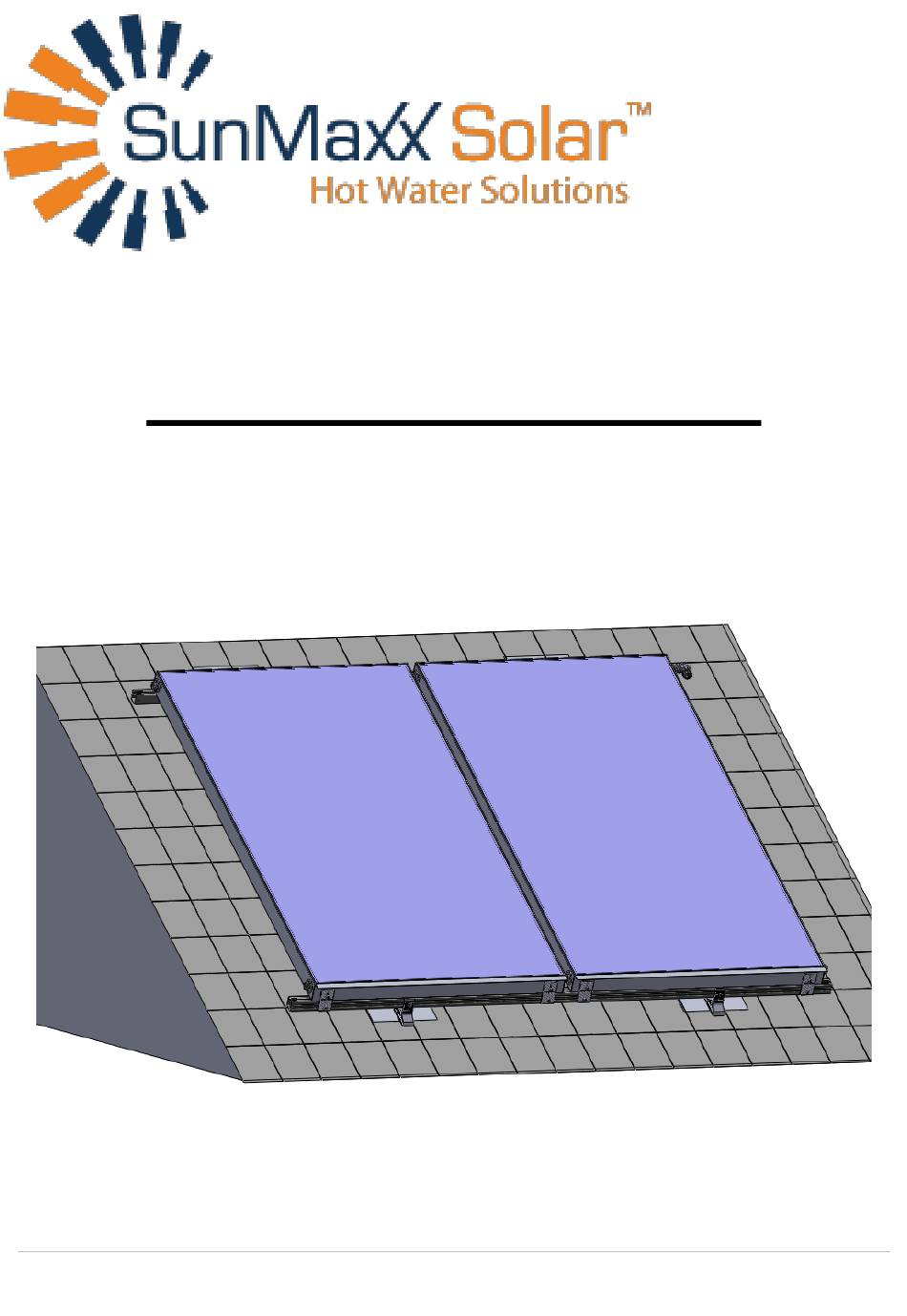

- Page 1 ConnectMaxx Mounting Systems Installation Instructions TitanPower Plus-SU2 Collector Flush Mounting SunMaxx Solar Flush Mounting...
- Page 2 General mounting and security advice To avoid optical interferences (fog, condensate) the TitanPower Plus-SU2 collector must be mounted at an angle between 35 and 75 degrees. For the collector warranty to apply this must be applied. Statics: An adequate load capacity of the roof construction must be taken in consideration, because the connection parts are fixed to the roof structure.
-
Page 3: Technical Data
Attention: Circumferential additional approximately 5.91” of space is needed Field Length Number of Collectors Field Length [inch] 38.78 TitanPower Plus-SU2 78.82 118.86 158.89 198.94 238.98 279.02 319.06 359.09 32mm 1.26inch 399.13 Pressure Loss Tm=20°C Flow [l/h] Pressure Loss [Pa] 1168 1811 2493 3215 SunMaxx Solar Flush Mounting... - Page 4 Mounting Rail Medium 40x40, 7ft length ConnectMaxx-74011003 Rail Connector Fixed for 40x40mm ConnectMaxx-74022601 Adjustable Clamping Plate ConnectMaxx-77000500 Standard Roof Mount ConnectMaxx-77000501 Standard Roof Mount Flashing ConnectMaxx-72201701 Rail Clamping Washer ConnectMaxx-SDS25412 Simpson Strong drive screw 1/4x4.5 in SunMaxx Solar Flush Mounting...
-
Page 5: Installing Mounting Hardware
Is capable of supporting TitanPower Plus-SU2 or ThermoPower VHP collectors at all recommended tilt angles Will not reduce fire resistance below code Will isolate roof and construction materials from the high temperatures generated by the collector array SunMaxx Solar Flush Mounting... -
Page 6: Step 3: Attaching The Rails
Screw the M8 x 22mm socket bolt into the channel, attaching the rail to the roof hook. d. Repeat 2a through 2c for each roof hook, making sure the rail is level. e. Connect two rails by using the Rail Connect and M8 x 22mm bolts and attach the end caps SunMaxx Solar Flush Mounting... - Page 7 SunMaxx Solar Flush Mounting...
-
Page 8: Step 4:Mounting The Collectors
Once the panel(s) are in the desired position, attach the adjustable clamping plate to the panel using the Hex bolts included on the ends of the collector. d. Attach the adjustable clamping plate to the rail, using the M8x22mm bolts. e. Make sure to return and tighten the connections between the panels. SunMaxx Solar Flush Mounting... - Page 9 Left to Right - Piping from bottom left to top right b. Right to Left - Piping from bottom right to top left. **The Hot Supply from the collector should be the shortest pipe run** Top Left of Collector Top Right of Collector SunMaxx Solar Flush Mounting...
- Page 10 Bottom Left of Collector Bottom Right of Collector Top Left of Collector Top Right of Collector Bottom Left of Collector Bottom Right of Collector SunMaxx Solar Flush Mounting...
- Page 11 Contact Us: Headquarters/Sales Office 56 Broome Corp. Pkwy Conklin, NY, 13748 Training Facility/ Sales Office 2917 State Hwy 7 Bainbridge, NY 13733 Sales Office 2475 W. 2nd Avenue Denver, CO 80223 Phone: 1.877.SUNMAXX (1.877.786.6299) SunMaxx Solar Flush Mounting...
