G Size Camera Manual
Version 4.0.0
F R E E 2 Y E A R E X T E N D E D W A R R A N T Y
See page 13 for details
R E A D T H I S M A N U A L
This manual explains the camera hardware. Refer to
the Advanced User Interface Manual for instructions
to program and deploy the camera.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cuddeback G Series

Summary of Contents for Cuddeback G Series

  • Page 1 G Size Camera Manual Version 4.0.0 F R E E 2 Y E A R E X T E N D E D W A R R A N T Y See page 13 for details R E A D T H I S M A N U A L This manual explains the camera hardware.
  • Page 2 Design Highlights This Cuddeback camera has been designed for reliability.  User Interface is weather resistant and covered with a sealing door. This resilient rubber/plastic door is more robust than a conventional hinge door.  The SD card fits into a socket in the bottom of the camera to prevent water from entering the camera when you check your camera in the rain.

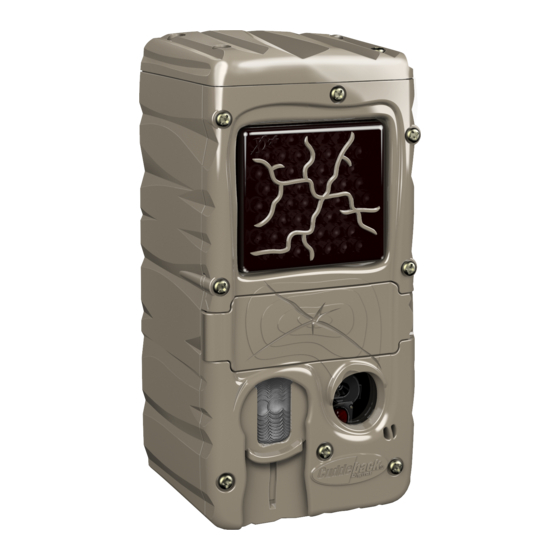

  • Page 3 Flash LEDs Test LED (behind lens) User Interface (behind door) Camera Motion Sensor Zone Control SD card on bottom...

  • Page 4: Internal Memory

    SD Card This Cuddeback camera is compatible with SD cards sizes 2GB to 32GB. Do not use SDXC cards. Micro SD cards will function with the proper adapter (usually included with the micro SD card). Treat your SD cards nice. They are very sophisticated electronic devices made with billions of static sensitive transistors.
  • Page 5 Install SD Card Insert the SD card into the camera label side down. Do not force the card. If it does not go in easily check to make sure you are inserting it correctly. You will break the card socket if you force the card. Insert SD card with label facing down SD Card Tip...
  • Page 6 Battery Notice Remove batteries when the camera is not going to be used for an extended period of time. Failure to follow these guidelines may result in battery leakage which will damage your camera.  Never mix old and new batteries. ...
  • Page 7 Install Batteries Install batteries by loosening the 2 battery door thumb screws and opening the battery door. Insert 4 D batteries as shown then secure the battery door with the thumb screws. Tighten fully but do not overtighten. Make sure to observe the correct polarity. Batteries can explode, leak acid, or ignite if inserted incorrectly.
  • Page 8 Zone Control This camera is equipped with Cuddeback’s patented Zone Control. The motion sensor can be set to detect animals in a wide angle or a narrow view. Wide view will capture more animals but is more susceptible to triggering by non-target animals (such as birds) which can lead to blank images and can result in images of the nose or tail of the animal.
  • Page 9 Push the Zone Control shutter down for wide detection. Push the Zone Control shutter up for centered detection.
  • Page 10 LIMITED WARRANTY FOR THIS CUDDEBACK CAMERA 1. Limited Warranty. Non Typical, Inc. (“Non Typical”) warrants the Product to be free from malfunctions and defects in both materials and workmanship for the period of the warranty (“Warranty Period”). Non Typical will repair or replace, at its option, the Product...
  • Page 11 activity performed by anyone other than Non Typical; c. Any defect in or damage to the Product that occurs due to transport, dropping, shock, or other similar activity after your purchase of the Product; d. Any defect in or damage to the Product that occurs due to careless or improper storage, or improper use or maintenance of the Product;...
  • Page 12 THE PRODUCT, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. NON TYPICAL EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED IN DURATION TO THE TERMS OF THIS EXPRESS LIMITED WARRANTY.
  • Page 13 Free Extended Warranty You can extend this warranty to 2 years by registering your camera online within 14 days of purchase. Visit Cuddeback.com and click REGISTER at the top of the page. You must register your camera to extend your warranty.
  • Page 14 Approvals: FCC, CE, ROHS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 15 to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Page 16 Non Typical, Inc. PO Box 10447 Green Bay, WI 54307 (920) 347-3810 www.cameratraps.co.za info@cameratraps.co.za CAMERA TRAPS cc | SOUTH AFRICA +27 (0)83 560 0555 | +27 (0)82 422 0356...
