Summary of Contents for Lenox DVDHD3470

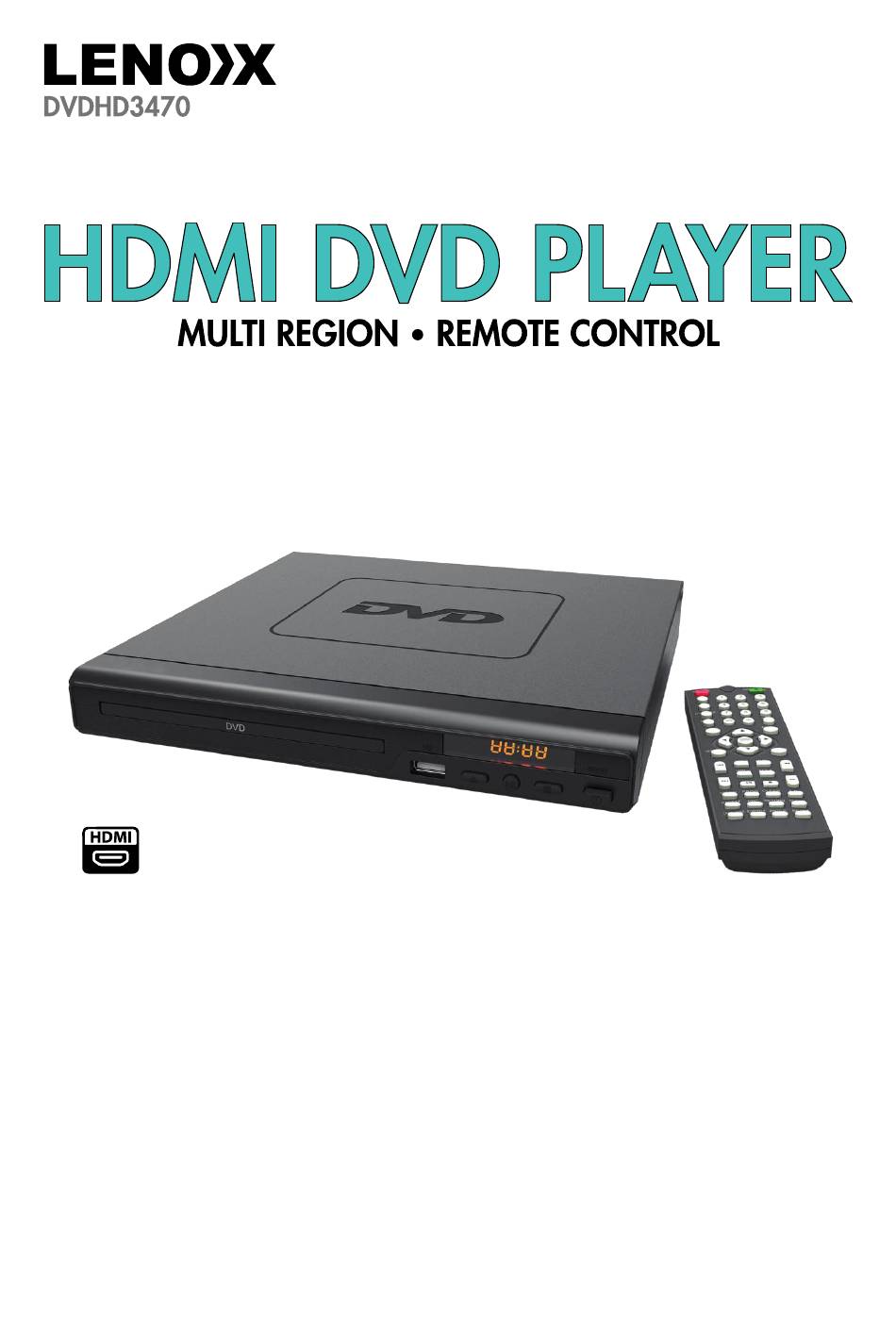

- Page 1 Model no: DVDHD3470 Batch no: PR3868 PLEASE READ AND RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
-
Page 2: Safety Instructions
The illustrations used in this manual are to illustrate the operation method and product structure of the product. Where there is a small difference between the physical item and the illustrations, please take the physical as the standard. SAFETY INSTRUCTIONS: •... -
Page 3: Box Contents
CAUTION: WARNING: DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE, DUE TO THE HIGH RISK OF FIRE OR ELECTRIC SHOCK, DO NOT OPEN THE CABINET DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. ONLY QUALIFIED SERVICE PERSONNEL SHOULD ATTEMPT THIS. •... -
Page 4: Controls And Functions
CONTROLS AND FUNCTIONS: FRONT PANEL: 1. DVD Tray 5. Open/Close 2. Remote Sensor 6. Play/Pause 3. Display 7. Stop 8. Power ON. /OFF 4. USB Port REAR PANEL: 9. (Y. Pb/Cb. Pr/Cr) Output 12. 2 x Audio Output ports 10. Power cable outlet 13. -
Page 5: Remote Control Operation
REMOTE CONTROL: REMOTE CONTROL OPERATION: Insert the batteries into the battery compartment. 2 x AAA batteries are required. Point the remote at the remote sensor in front of the player and make sure there are no obstacles in the way between the remote and the player. The distance between the remote and the sensor must not exceed 3m. - Page 6 REMOTE CONTROLS AND FUNCTIONS: POWER ON/OFF NEXT (>>I) Press to Power On, press again for In DVD mode, press to go to next chapter. With SVCD, VCD, CD, MP3 Standby mode. discs, press to go to next track. PLAY/PAUSE Press for information of the disc to Press once to pause, press again to display play...
-
Page 8: Instructions Guide
INSTRUCTIONS GUIDE: Getting started: Setting Up Connect the power plug of the DVD player to a wall outlet. The power indicator and clock on the front panel will illuminate. Follow the below guidance for cable connections to get your DVD player set up: Cable Connection Options: 1a. -
Page 9: Usb Operation
USB OPERATION: This product has a USB port at the DVD front face for MP3/ Movies playback. Insert a USB unit into the USB port on the front panel of the DVD player (Ref.4). Press the DVD/USB button on the remote control (Rem.4) to enter the USB source. The DVD player will read and display the file list off the USB unit. -
Page 10: System Setup
the track or use the buttons to shift to the track and press the ENTER button (Rem.26) to play the track. SYSTEM SETUP: Menu Operation Press the SET-UP button (Rem.8) on the remote control and the SET-UP menu will display. There are five different menus in the setup: General, Audio, Dolby, Video and Preference. - Page 11 Spanish or Portuguese). Captions The default set-up is Caption off. You can display closed captions (if available). Screen saver Select a screen saver for when the TV display goes into standby or a disc is not played for several minutes. Press any remote on the remote control to wake it up. HDCD Select an output audio signal.
-
Page 12: Menu 4: Video Set-Up
Select to reduce the bass and treble, and to create a fine detailed sound. This mode is recommended for reduced sound to avoid disturbance for nighttime viewing. MENU 4: VIDEO Set-up 1. Press the buttons on the remote control to open the ‘Dolby’ menu (Rem. 7, 24, 25, 28). -
Page 13: Troubleshooting
the set level will not be played. Password Set-up The initial factory password is 0000. You can change the password here. Default Set-up Select to revert to original factory set up on this unit. TROUBLESHOOTING: Malfunction Possible causes/measures Check whether the power is switched on or off No power / function at the wall. -
Page 14: Specification
SPECIFICATION: Power Supply AC 100-240V ~so/6oHz Frequency Response Power Consumption HDMI AN RCA Output USB Input Compatible Connections (Y Pb/Cb Pr/Cr) R/L Video DVD: DVD, DVD-R-RW, CD Video. Compatible Formats Mpeg4 and DivX in AVI format. AUDIO: Mp3, WMA, CD Audio, CD-R- RW, CD PHOTO: Jpg, Jpeg, CD Photo...
