Summary of Contents for Adronic X56

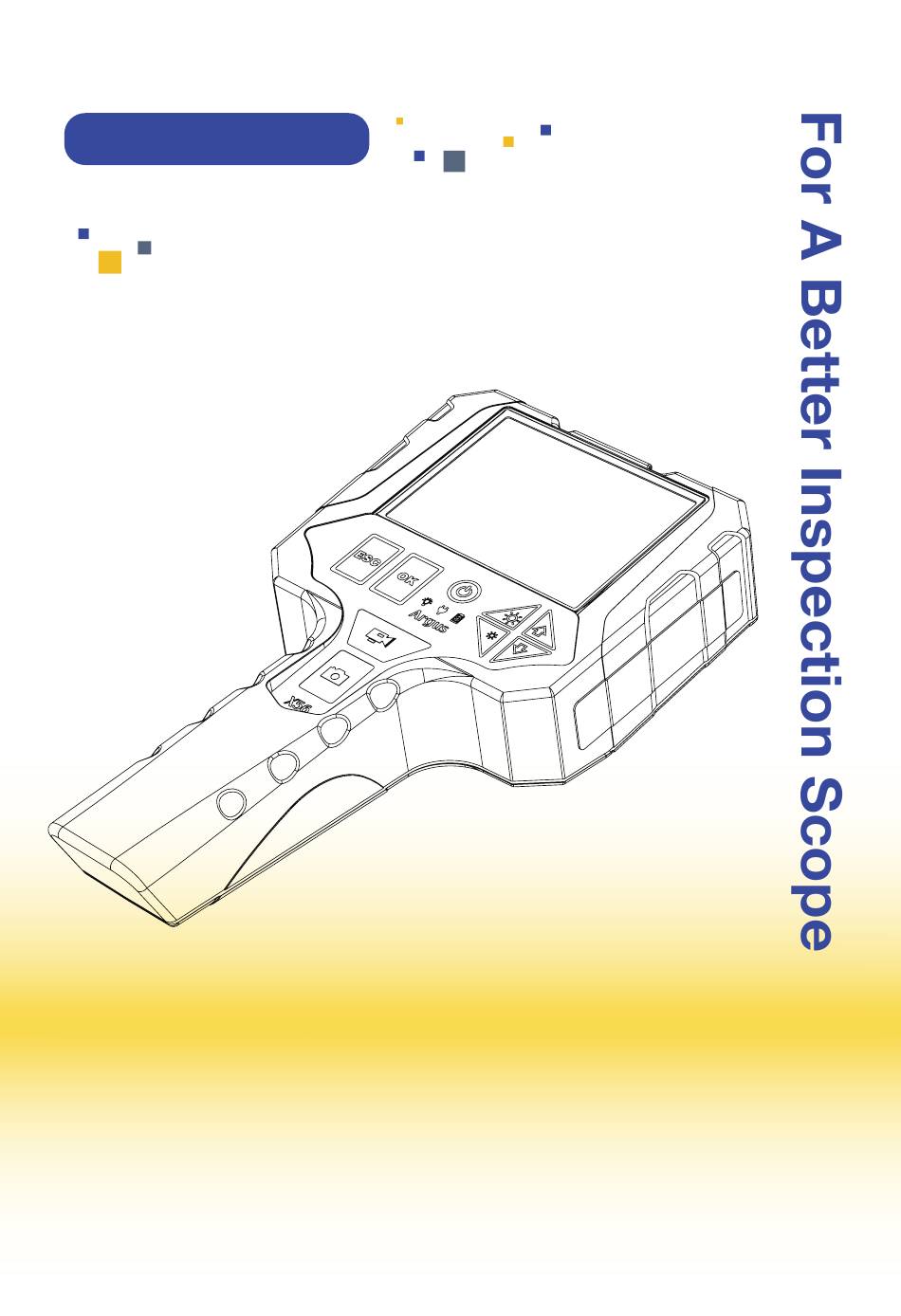

- Page 1 User Manual A.0 Please read the user manual carefully before using this system...
- Page 2 For A better Inspection Scope This user manual will indicate the specification, operation, and maintenance for X56 endoscope system. Please follow the instruction to quickly understand the correct usage, secure maintenance, and avoid risks. Also please pay attention to the“WARNING” before reading the user manual.
-
Page 3: Table Of Contents
Content 01.Introduction 01 02.Main Device and Accessory 03.Scope Function 02 04.Monitor Key Instruction 03 05.Operation Instruction 04 5-1 Video Mode 04 5-2 Play Mode 06 5-3 Setup Mode 06.Specification 07.Mark Instruction 10 08.Preventive Examination 10 09.Product Cleaning and Maintenance ... -
Page 4: Introduction
The screen is clear and stable, also could manually adjust the image size and illumination. X56 enable to support Snapshot, Audio and Video recording to enhance the detection performance. -
Page 5: Scope Function
03. Scope Function Indication Light : Charging Light down key Indication Light : DCIN Video Recording Key Indication Light:Power/SD Card Detection Light Snapshot Key Power On/Off SD CARD Slot OK Key RESET Key ESC Key Downward Key DCIN Upward Key TV-OUT Light up key 1/4”-20 pitch machine screw stud... -
Page 6: Monitor Key Instruction
For A better Inspection Scope 04. Monitor Key Instruction Button Video Mode Play Mode Set up Mode Execute the Enter Setup menu Enter Setup menu selected function Check the photo or Back to Video Mode Exit the menu Video saved in SD card (Enter Play Mode) Left key Check backward... -
Page 7: Operation Instruction
05. Operating Instruction 5 - 1 Video Mode ( Preview Mode ) • Video Menu： Press key to enter；Press to exit ;Press key to select item. Selecting Item Function Remark 1.On 2. Off Sound 1.On 2. Off Grid 1.On 2. Off Mirror Factory Set 1.Brightness 2.Contrast... - Page 8 For A better Inspection Scope (Video Mode) Grid (Video Mode) Mirror (Video Mode) Factory Set 1. Press key to execute setting, then press to select “Brightness” or “Contrast”. Press key to adjust the value of parameter. 3. Press key to confirm setting. Press key to exit setting.
-
Page 9: Play Mode
05. Operating Instruction 5 - 2 Play Mode Under “Video Mode”→ Press key to enter “File List Preview” → Press key to select the file → Press key to check the file. ( Photo File *.jpg） （Video *.avi） 1. Press key : Zoom in. - Page 10 For A better Inspection Scope • Play Menu Press key → Enter “File List Preview” → Under “Preview Mode” to select any photo or Video → Press key twice → Enter “Play Menu”. Function Remark Selecting Item 1.Single 2. All 3. Select Delete This function could be executed when the file...
-
Page 11: Setup Mode
05. Operating Instruction 5 - 3 Setup Mode • Setup Menu Press key then press to enter “Setup Menu”. Selecting Item Default Function Format Menu 1.Cancel 2. Execute 1. English Français 3. Deutsch 4. Italiano 5. Español 6. Português 7. - Page 12 For A better Inspection Scope (Setup Menu) Sys. Reset (Setup Menu) TV Output 功 能 初始值 取消 2. 執行 選單 English, 2. Français, 3. Deutsch, 4. Italiano, (Setup Menu) Date Input 繁體中文 Espa–o, 6. Português, 7. 简 体中文 日本語 English , 9.
-
Page 13: Specification
06. Specification Model Name Display 3.5” digital LCD display Resolution Full HQ 720 x 640 pixels Still Image Storage JPEG Format Video Recording MPEG4/AVI Format 17 languages are available (1 English 2 French 3 German 4 Italian 5 Spanish 6. Portuguese Operation Language 7.Traditional Chinese 8. -
Page 14: Product Cleaning And Maintenance
For A better Inspection Scope 09. Product Cleaning and Maintenance Before operating : Please use 75% alcohol to wipe. After operating : Please use 75% alcohol to wipe. Product maintenance : 3 years factory inspection. 10. Declaration The device would not apply to the warranty policy if the damage caused by the factors as below : The damaged caused due to user did not follow the operating instruction. -
Page 15: Application
12. Application X56 Application OD1.9-10mm Fiber Optical Rigid Scope OD3.9-16mm Standard Probe OD20/25mm Fiber Glass Scope OD3.9-6.5mm 90˚ Rigid Probe OD40/50mm Fiber Glass Scope OD3.9-16mm Articulation Probe Pen Type... -
Page 16: Faq
For A better Inspection Scope 13. FAQ Could not take photo and video recording Power on failure Recharge the battery by power charger. Check the probe connection. No inspection image Be sure to plug tube well and restart the unit. Please take a needle-like object made with insulating material to insert into the reset hole System crash...
