Hubbell ExpressLine NRG300B Series Installation Instructions

WARNING
DISCONNECT POWER DURING INSTALLATION AND BEFORE SERVICING.
READ ALL INSTRUCTIONS COMPLETELY BEFORE STARTING INSTALLATION
SAFETY PRECAUTIONS
Before starting the installation, disconnect the power by turning off the
circuit breaker. Turning the power off by using the light switch is not
sufficient to prevent electrical shock.
Read all warnings and information on carton(s) and product(s).
INSTALLATION

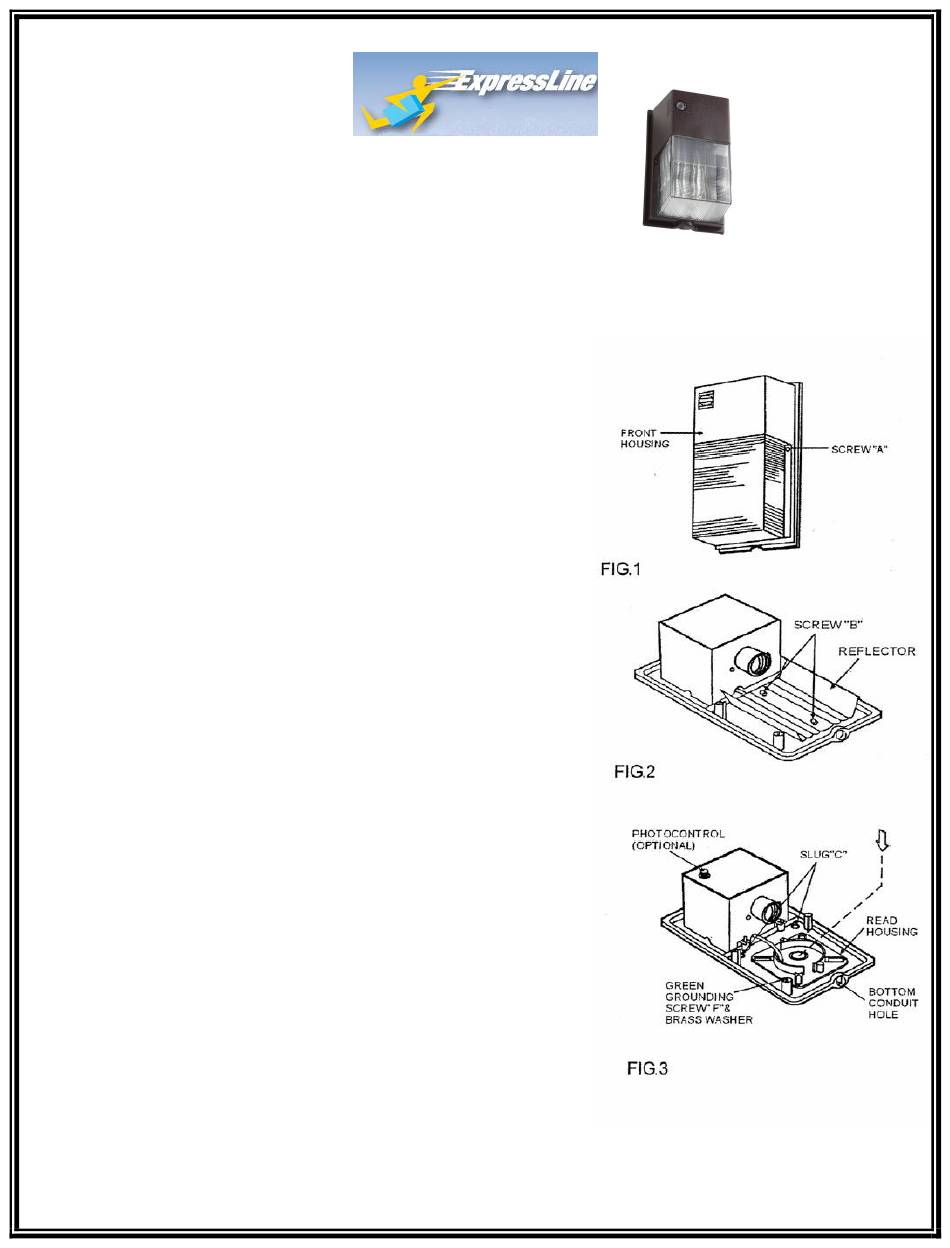

1. REMOVE FRONT HOUSING (Fig.1) Loosen two (2) screws
A ,Remove front housing.
2. REMOVE REFLECTOR (Fig.2) Loosen two screws B
to allow reflector to slide upward until keyhole
in reflector releases two screws B . Remove reflector.
3. MOUNTING WITH TWO (2) BOLTS (Fig.3) Knock out two (2)
plugs C in rear housing. Mount with two (2) lag
screws.
4. MOUNTING ON OUTLET BOX Knock out appropriate
holes around outlet hole in rear housing. Fasten
the rear housing to the outlet box using the screws
supplied with the outlet box.
ELECTRICAL CONNECTIONS
Make wiring connections by connecting white fixture wire
to white Service wire. 120volt fixture wire (which may be
black) to black Service wire: Make sure that there are
no loose wire strands sticking Out of wire nuts.
Connect the ground lead from the service by hooking it
around the green grounding screw F between the screw
head and the brass terminal washer. Tighten the screw
securely.
INSTALL LAMP
Replace reflector and place lamp into lamp socket, and
install lamp securely into lamp socket until it seals
firmly.
Hubbell Canada LP, Lighting Division
870 Brock Road South, Pickering, ON, L1W 1Z8
Tel. (905) 839­1138
INSTALLATION INSTRUCTIONS
NRG Wallpack
NRG300B Series
For more information, visit our website: www.hubbellonline.com
