Summary of Contents for Si-tex SST-110

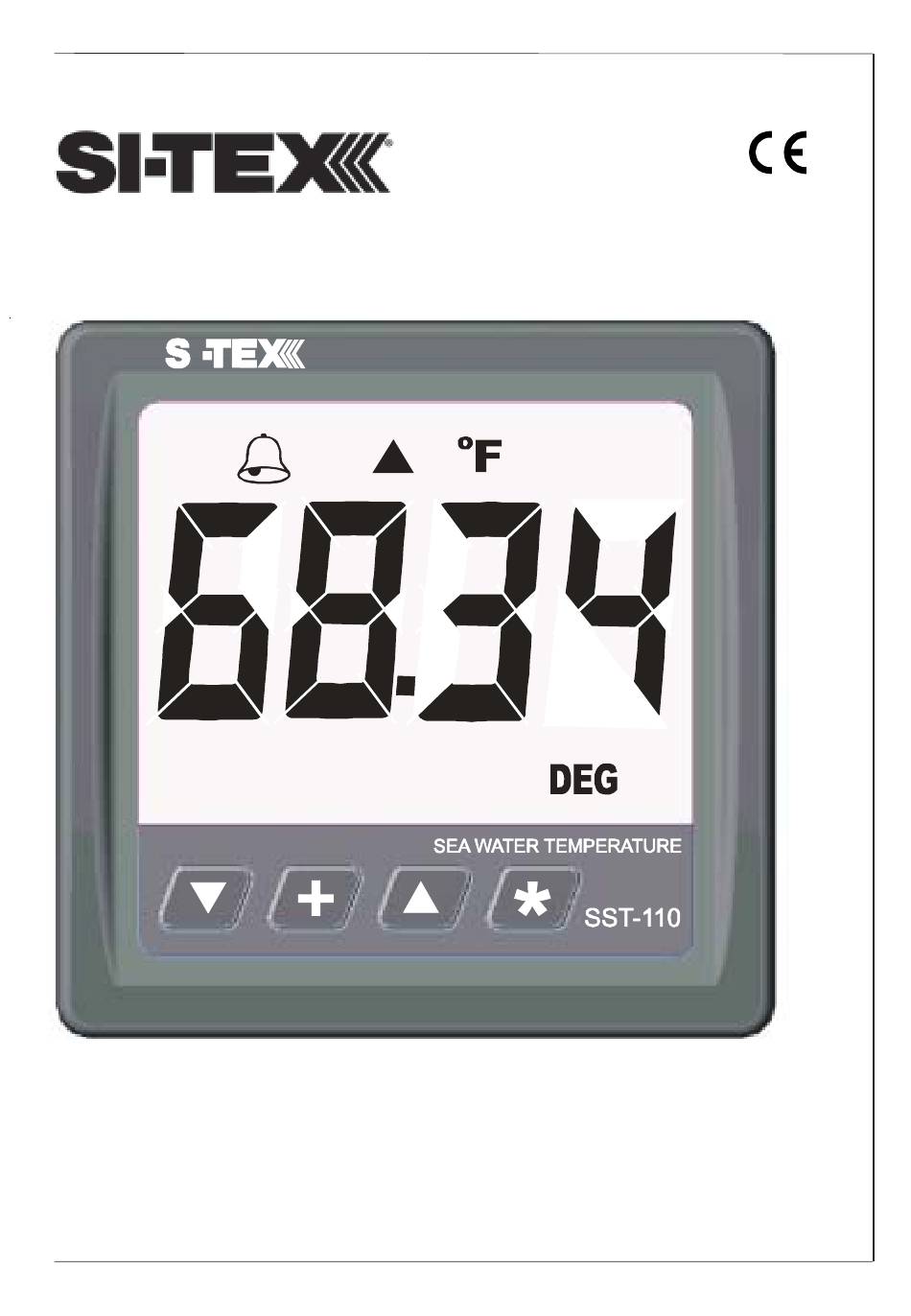

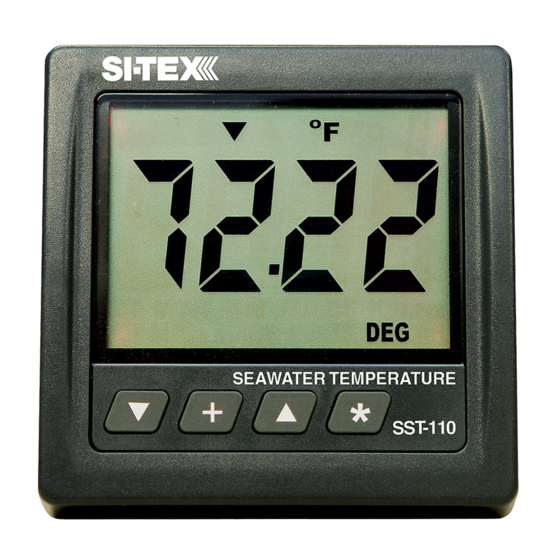

- Page 1 SST-110 Sea Water Temperature Gauge...
-
Page 2: Table Of Contents
Specifications ......13 Transducer Information ..... 14 2010 Si-Tex SST110AG http://www.si-tex.com... -
Page 3: Introduction
When planning the installation of your SST-110 it is important to carefully choose a location for the temperature probe/trans- ducer that will not subject it to high levels of onboard heat such as is found in the engine compartment. - Page 4 Also, avoid mounting the probe near the engine exhaust, as this will adversely affect the overall accuracy of the sea water temperature indication The Si-Tex SST110 provides accurate digital instrumentation for sea water temperature with a resolution of 0.01 degree Fahrenheit or Celsius.
-
Page 5: Installation
Installation Before starting the installation, please read this entire section first. Finger tighten the screws that mount the instrument bracket - It is not necessary or recommended to use tools. Drill a 2-1/8" (55mm) mounting hole where you desire to mount the instrument (Figure 1). - Page 6 Figure 2 To Temperature probe BLUE: LIGHTS On/Off WHITE: NMEA 0183 out BLACK: Power Ground RED: +12/24 VDC IN Not used MALE Figure 3 To Temperature probe BLUE: LIGHTS On/Off WHITE: NMEA 0183 out BLACK: Power Ground MALE FEMALE RED: +12/24 VDC IN Page 6...
-
Page 7: Operation
Operation Key Functions keys are used to select what to display, set backlight levels, calibrate temperature, set alarms and change units of measure. New information is automatically saved to a nonvolatile memory. Backlight Intensity Press the key 1/2 second to adjust the backlight level for night viewing. -
Page 8: View/Set Low Temperature Alarm
View/Set Low Temperature Alarms To set the Low Temperature Alarm value, press the key for ten seconds while viewing water temperature (until you hear a long beep). Use the keys to adjust the value. Press the key for 1/2 second to save the new value to memory. View/Set High Temperature Alarms To set the High Temperature Alarm value, press the key for... -
Page 9: View Minimum Temperature Seen Memory
View Minimum Temperature Seen Memory To view the minimum temperature seen (since last reset), quick press both the Use the keys. The icon will blink and after 5 second the display will revert to showing Temperature. View Maximum Temperature Seen Memory To view the maximum temperature seen (since last reset), quick press both the Use the keys. -
Page 10: Calibrating Temperature
Calibrating Temperature To calibrate the temperature value, press and hold both the keys for ten seconds while viewing water temperature (until you hear a long beep). Use the keys to adjust the value to read correctly. Press the key for 1/2 second to save the new value to memory. -
Page 11: Temperature Trend Indicators
Temperature Trend Indicators To help you see if the sea water temperature is falling, rising or stable the SST110 keeps track of this information and displays an UP arrow “ ”, a down arrow “ ” or no arrow. The sensitivity of the temperature trend indicators (how fast it responds and the duration of its memory) is adjustable using the front panel keys. -
Page 12: Notes And Warnings
The temperature will be unstable for the first 10-15 seconds after the power is first turned on. During this time a “U” will be displayed. f) The SST-110 will display “-HI-” if the temperature sensor connections are a short circuit or too low a resistance.. -
Page 13: Specifications
Specifications Power supply: 9.50 to 33.00 (absolute maximum)VDC, 0.045 amps nominal. Operation outside this range can cause erratic behavior or damage. Operating temperature: 32 to 122 F ( 0 to 50 C) Size: 4.3" x 4.3” x 3.5” deep (110 x 110 x 89 mm). Display Data: Water Temperature, High and Low alarms, temperature trend arrows, alarm symbol. -
Page 14: Transducer Information
Transducer Information The SST110 temperature transducer has the following charac- teristics: Temperature Resistance 50.00 deg F 10.00 deg C 58.80K 59.00 deg F 15.00 deg C 46.20K 68.00 deg F 20.00 deg C 37.00K 77.00 deg F 25.00 deg C 30.00K 86.00 deg F 30.00 deg C... - Page 15 Notes Page 15...
- Page 16 Si-Tex Marine Electronics 25 Enterprise Zone Drive, Suite #2 Riverhead, NY 11901 Main Office: +1-631-996-2690 Fax: +1-631-996-2693 email: service@si-tex.com website: www.si-tex.com...
