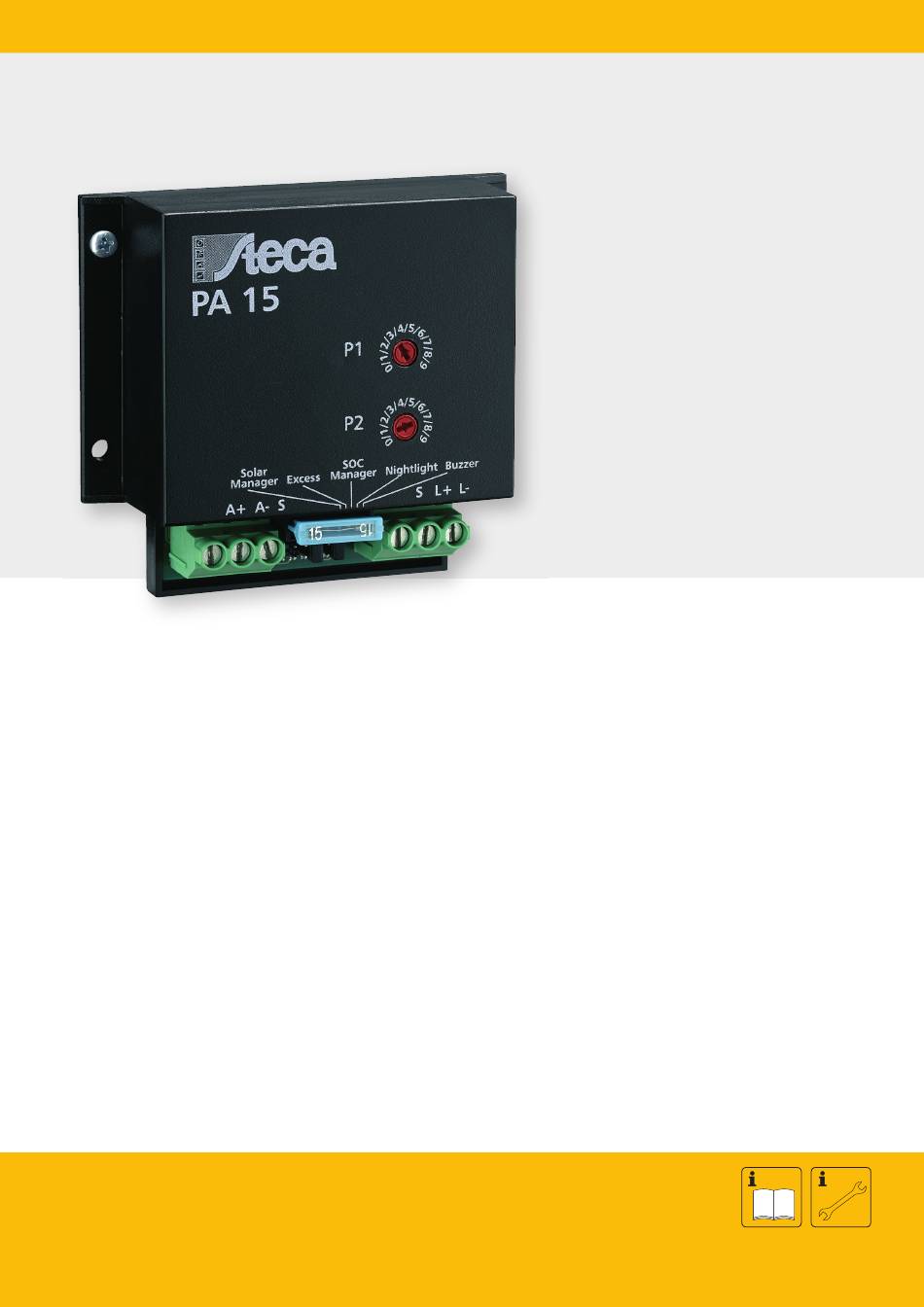

PHOTOVOLTAIK - PHOTOVOLTAIC - PHOTOVOLTAIQUE - FOTOVOLTAICA
Operating Manual
Remote control
Steca PA 15
EN
703.639 | V 04.04 | 09.46

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA 15 and is the answer not in the manual?

Questions and answers

Related Manuals for Steca PA 15

Summary of Contents for Steca PA 15

  • Page 1 PHOTOVOLTAIK - PHOTOVOLTAIC - PHOTOVOLTAIQUE - FOTOVOLTAICA Operating Manual Remote control Steca PA 15 703.639 | V 04.04 | 09.46...

  • Page 2: Table Of Contents

    SAFETY INSTRUCTIONS AND DAMAGE EXCLUSIONS ....4 Symbols used for safety instructions................4 About this manual ......................5 General safety instructions ....................5 INSTALLING THE STECA PA15 TTS REMOTE SWITCH ....6 Precautions........................6 Choosing the installation site................... 6 3.2.1 Wall installation PA15....................
  • Page 3 What does this mean? ..................... 27 4.7.2 How to do this ......................28 HELP WITH TROUBLESHOOTING ..........28 EXAMPLE SYSTEMS............... 32 FUNCTIONAL DESCRIPTION ............32 TECHNICAL DATA ................39 MISCELLANEOUS ................39 Steca GmbH; Version of 04.04; No. 711.576 PA15 TTS Operating Manual Page 3...

  • Page 4: Introduction

    Steca GmbH and it suppliers cannot accept any liability for any damage, losses or third party claims arising as a result of the use of the Steca PA15 TTS remote switch.

  • Page 5: About This Manual

    The manual must also be accessible for third parties for all work being carried out on the system. This manual forms part of the Steca PA15 TTS remote switch and must be included in any onward transfer of ownership. 2.3 General safety instructions...

  • Page 6: Installing The Steca Pa15 Tts Remote Switch

    ⇒ National Electric Code including Article 690 3.2 Choosing the installation site The Steca PA15 must be connected to the battery and the consumer devices. As the line losses and therefore also the voltage drops need to be kept as low as possible, the PA15 must be installed in such a way that the cable paths selected are as short and direct as possible.

  • Page 7: Wall Installation Pa15

    The base on which the PA15 is installed must not consist of flammable material. During operation, the device will heat up due to power dissipation. For this reason, the installation site should withstand a temperature of 85°C. 3.2.1 Wall installation PA15 The PA15 must be installed on an incombustible base.

  • Page 8: Preparatory Measures

    The equipment listed above can be connected to the PA15, of course, but the spatial distance must be observed in order to prevent interference with the data reception. 3.3 Preparatory measures 3.3.1 Line preparation All lines, distributor cans and boxes and fuses should normally be prepared before connection: •...

  • Page 9: Installation And Commissioning

    • Only perform work with a dry base! Components (solar modules, cables, etc.) must not be wet or damp during installation! • Ensure that the correct polarity is used during cabling work! Notes: In standalone systems, earthing of the components is not necessary, not standard or may be prohibited by local regulations (e.g.

  • Page 10: Fuse In The Pa15

    3.6.3 Fuse protection A fuse protects the PA15 against single faults (e.g. load short-circuit, battery reverse polarity, reverse polarity of the consumer equipment, etc.). PA 15 S olar S OC Manager...

  • Page 11: Earthing

    If earthing on the positive side is selected, this can also be used as the common earthing for all system components. All plus lines will still be interconnected inside the device. S olar module T arom c ontroller PA 15 Load (Relay) S olar...

  • Page 12: Negative Earthing

    3.7.2 Negative earthing S olar module T arom c ontroller PA 15 Load (Relay) S olar Manager Excess Manager Nightlight Buzzer A+ A- S 15 A Load Battery wires Button or switc h Only one connection may be earthed on each of the minus connections on the battery input and load output components.

  • Page 13: Release For The Data Transfer On The Solarix Tarom / Powertarom

    4.2 Release for the data transfer on the SOLARIX TAROM / POWERTAROM The Steca PA15 TTS remote switch can only be operated in combination with SOLARIX TAROM 235, TAROM 245, TAROM 430 or POWERTAROM solar charge controllers, software version 12.15 and higher.

  • Page 14: Decentralised Power Management (Soc Manager P1

    The Tarom / Powertarom transfers the following system information: • Current SOC VALUE, • Identifier for the generator manager • Identifier for the excess manager (EXCESS) • DAY / Night information In accordance with this setting, the PA15 TTS remote switch will only react to the signals sent if it receives the information transferred at least 3 times without error.
  • Page 15 S olar module T arom c ontroller PA 15 (Relay) Load S olar Manager Excess Manager Nightlight Buzzer A+ A- S 15 A Load Battery wires Button or switc h 3. To configure the remote switch for this operating mode, plug the jumper on the PA15 into the “SOC MANAGER”...
  • Page 16 The beeps sounded when resetting the adjusting controller are normal and are intended to help you set the required values more easily. The beep signals the transition between two setting options, e.g. starting from the far left 0, turn 4 beeps to the right = 4. SOC values between <10% and >99 % can be set on the scale from 0 –...

  • Page 17: Example

    DIN 57100 Part 410 Prohibition of Earthing for Safety Extra-Low Voltage Electrical Circuits). 4.3.3 Example Let’s say you want to connect a television set to the standalone network via this decentralised exhaustive discharge protection. It should only be possible to operate the device if the load status for the solar battery is at least 50%.

  • Page 18: Generator Manager (Soc Manager P1 > P2)

    Depending on the requirements, it may be necessary to modify the switch signal via additional components, e.g. relays. These components do not form part of the Steca PA15 TTS remote switch and must be purchased and installed as an extra.

  • Page 19: How To Do This

    To do this, the PA15 disconnects the connection to the battery at its output. If the current SOC value transferred is higher than the threshold set using P1, the PA15 output is disabled. Shutdown PA 15 threshold Sola r Manager Exc ess Manager...
  • Page 20 The beep signals the transition between two setting options, e.g. starting from the far left 0, turn 4 beeps to the right = 4. SOC values between <10% and >90 % can be set on the scale from 0 – 9. 0 : SOC between 0 ...

  • Page 21: Special Features, Using The Button / Switch

    When commissioning the device, the consumer output is always shut down first (generator off). Only once a relevant data signal is available to the PA 15 following a successful data transfer is the load activated. If the PA15 has shut off the load (generator) due to its controller position P1 and the data transferred, the load can be reactivated by reducing the shutdown thresholds.

  • Page 22: Solar Manager

    Other power generators (wind, water) can also be used to charge your system battery using remote switches in the solar manager operating mode. 4.5.2 How to do this T arom c ontroller S olar module PA 15 R J 48 Relay S olar Manager Excess...
  • Page 23 0..8 are accepted. The setting 9 is possible, but has exactly the same functionality as position 8. This means that a maximum of 9 additional solar arrays can be included in the system. Position not relevant ! PA 15 Solar generator Sola r Manager Exc ess Manager Nightlight...

  • Page 24: Special Features, Using The Button / Switch

    When commissioning the device, the PA15 output is always shut down first (generator off). Only once a relevant data signal is available to the PA 15 following a successful data transfer is the output active. If the PA15 has shut off the generator due to its controller position P2 and the data transferred, the generator can be reactivated by increasing the generator identifier.

  • Page 25: Excess Management (Excess)

    1. Connect the PA15 to your battery leads with the correct polarity (A+ / A-). 2. Connect the consumer device to the outputs (L+ / L-) with the correct polarity. S olar module T arom c ontroller PA 15 Exc ess c onsumerr S olar Manager Excess Manager...

  • Page 26: Special Features, Using The Button / Switch

    When commissioning the device, the PA15 output is always shut down first (excess consumer off). Only once a relevant data signal is available to the PA 15 following a successful data transfer is the output active. If the PA15 has shut off the generator due to its controller position P2 and the data transferred, it can be permanently activated by increasing the identifier to position 9.

  • Page 27: Nightlight (Nightlight)

    Tarom. The cause of this is related to the transmission security program and provides safe detection and switching. S olar module T arom c ontroller PA 15 S olar Manager Exc ess...

  • Page 28: How To Do This

    Nightlight Buzzer Manager 4. No further settings on the PA15 are required. The adjusting controller positions “P1” and “P2” are ignored in this operating mode. Position not PA 15 relevant ! Solar Manager Exc ess Manager Nightlight Buzzer Position not...
  • Page 29 If the fuse blows again, there is a fault in the device. No function Check the connection and the cabling for the Steca PA15. Check the power supply and the fuse. Is the PA15 correctly connected to the solar system battery? If the input voltage in the permissible range of between 10.5V and...
  • Page 30 Load output on the PA15 does not switch OFF Check the basic function of the PA15 according to the instructions in the “No function” section. Check the connection to the consumer as well, along with the correct functioning of the consumer device. The PA15 does not react immediately to a control signal transmitted.
  • Page 31 SOC Manager is not working Check the basic function of the PA15 according to the instructions in the “No function” section. Compare your settings with the functional description in section 8.4. “SOC Manager” Please also observe the instructions under point “PA15 is not receiving any data”.

  • Page 32: Example Systems

    7 Functional description Basic function The PA 15 is a receiver which can only be used in combination with the Solarix Tarom / Powertarom charge controller. The transfer function for sending data to the battery leads must first be enabled on the charge controller;...
  • Page 33 Only one operating mode can be set at any given time on the jumper block between the two 3-pole connecting terminals. If the overall system is to provide multiple additional functions, additional Steca PA15 units must be used. An incorrect configuration will NOT be indicated acoustically by the PA15.
  • Page 34 Assigning the switching thresholds to the SOC value for P1 and P2, for the relevant operating mode: Value | relevant SOC range | identifier 0 .. 9 % SOC solar generator / identifier 0 10 .. 19 % SOC solar generator / identifier 1 20 ..
  • Page 35 The operating modes The Steca PA15 TTS remote switch has different operating modes. Depending on the function required, the operating mode in question needs to be set on the jumper block and the two adjusting potentiometers. These modes are described below.
  • Page 36 Safety function: Without any data received, the consumer should remain switched on. If the PA15 is connected directly to the battery, the battery can be discharged completely. As an option, the PA15 can also be connected to the load output for the TAROM charge controller.
  • Page 37 A switch between the S terminals can be used to switch the generator on and off manually, regardless of the control from the PA15. Solar generator manager (jumper = Solar Manager) This operating mode is only used for shutting down and activating additional solar arrays –...
  • Page 38 the excess consumer will be shut down once again in order to keep the battery at full charge. The current which the excess consumer is permitted to pick up to ensure that the battery voltage does not fall below the threshold value, depends on the overall system and needs to be determined experientially.

  • Page 39: Technical Data

    Block diagram 8 Technical data Operating voltage range: 10.5V.. 60 V Intrinsic consumption: < 5 mA Maximum continuous current: 15 A @ 25°C ; 10 A @ 40°C Maximum one-off pulse current: 100 A, possible pulse duration determined by the fuse used; max. <...
  • Page 40 703639...
