- Page 1 DXRM59BT INSTALLATION/OWNER'S MANUAL AM/FM Receiver with Bluetooth...
- Page 2 DXRM59BT INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Wiring Diagram
DXRM59BT INSTALLATION Wiring Diagram Antenna Connector FUSE When replacing the fuse, make sure new fuse is the correct type 10 AMP AGC Fuse and amperage. Using an incorrect fuse could damage the radio. The unit uses one 10 amp ATM fuse located beside the wiring connector. -
Page 4: Control Locations

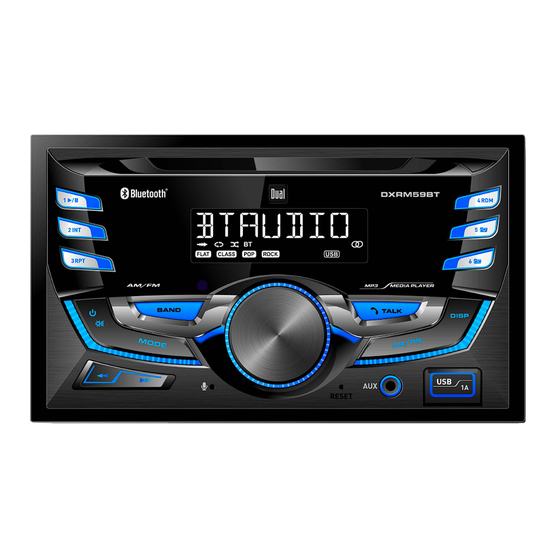

DXRM59BT OPERATION Control Locations 11 12 13 Preset 1 / Repeat Reset Preset 2 / Random Bluetooth Talk Preset 3 / Intro Auxiliary Input Power / Mute USB Port Mode AS/PS Tune / Track Down Display Tune / Track Up Preset 6 / Folder Up... -
Page 5: Remote Control
DXRM59BT OPERATION Remote Control Mode Preset 6 / Folder Up Volume Up Mute Power Audio / Menu Select Preset 5 / Folder Down Tune / Track Up Preset 4 / Play / Pause Volume Down Preset 1 / Repeat Band / Go Back... -
Page 6: General Operation
DXRM59BT OPERATION General Operation Press the button to turn the unit on. Press again to Power On/Off turn the unit off. Changing Modes Press MODE to select between Radio, USB, Auxiliary Input and Bluetooth. Modes of operation are shown in the display. Volume Adjust volume using the volume knob (00-40). - Page 7 DXRM59BT OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE to seek to the previous or next strong station. Manual Tuning Press and hold TUNE or TUNE to enter manual tuning mode, then press TUNE or TUNE momentarily to change radio frequency up or down one step at a time.
-
Page 8: Usb Operation
DXRM59BT OPERATION USB Operation Playing MP3 Files To play MP3 files, insert a USB device containing MP3 files. Track Select Press TUNE to skip to the beginning of the next track. Press TUNE to skip to the beginning of the previous track. Fast Forward Press and hold TUNE ... -
Page 9: Bluetooth Operation
Complete the pairing sequence from your Bluetooth device. Refer to the owner’s manual for your device for more details. The device name is “Dual Media Player”. The Bluetooth passcode is "1234”. Note: The head unit can be in any mode of operation when pairing is performed. -
Page 10: Limited One Year Warranty
2. If you require service during the the original purchase. warranty period, you must carefully pack the product (preferably in the Dual Electronics Corp. agrees, at our original package) and ship it by prepaid option, during the warranty period, transportation with a copy of the original... -
Page 11: Troubleshooting
DXRM59BT OPERATION Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse... -
Page 12: Specifications
DXRM59BT OPERATION Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: <42dBu Frequency response: 30Hz-2.2kHz General Speaker output impedance: 4~8 ohms Line output voltage: 2 Volts RMS... -
Page 13: Fcc Compliance
DXRM59BT OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 14 Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2019 Dual Electronics Corp. All rights reserved. Other trademarks and trade names are those of their respective owners. NSA0919-V01...
