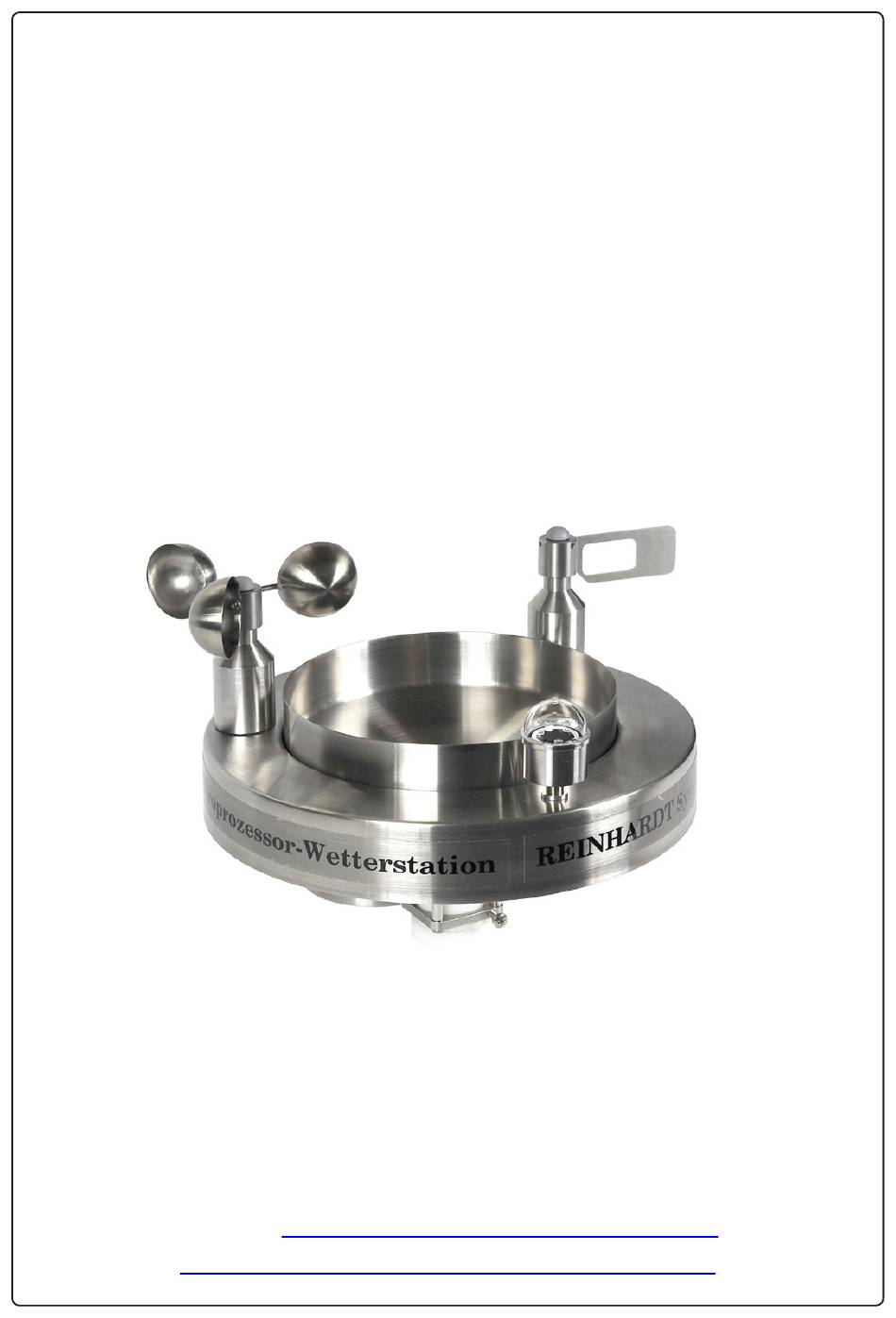

- Page 1 Manual MWS 9-5 Microprocessor-Weather Station (Version 1.4 and later) REINHARDT System- und Messelectronic GmbH Bergstr. 33 D-86911 Dießen-Obermühlhausen Tel. 0049 - (0) 8196/934100 Fax 0049 - (0)8196/7005 or 1414 E-Mail: wetter@reinhardt-testsystem.de http://www.reinhardt-wetterstationen.de...
-
Page 2: Table Of Contents
Table of contents 1 Caution ...............................5 1.1 Intended Use ..........................5 1.2 Safety Regulations .........................5 1.3 Mounting............................5 2 Setting up the MWS 9-5 Weather Station ....................6 2.1 Installation of Hardware........................6 2.1.1 Warning!! ..........................6 2.1.2 Overvoltage protection ......................7 2.2 Software Installation ........................8 2.3 Start the Software...........................9... - Page 3 4.1.2.1 Connection Diagram Cable with Heating Device ............19 4.1.3 Allocation of the Connection Cable for MWS9-5 with RS422 / 485 Interface: .......20 4.1.3.1 Connection Diagram MWS 9-5 with RS422 / 485 Interface ...........20 4.2 Pin assignments ..........................21 4.2.1 Allocation of the Remaining MWS 9-5 Connections ..............21 5 Excerpts from the Directions of DWD for Automatic Weather Stations ..........22...
- Page 4 MWS 9-5 Manual MWS 9-5 Microprocessor Weather Station erstellt am 30.05.2012 von DO MWS 9-5e.p65 Page 4 REINHARDT System- und Messelectronic GmbH Fax: 08196/7005 and 1414 email: wetter@reinhardt-testsystem.de Web: www.reinhardt-wetterstationen.de...
-
Page 5: Caution
1 Caution 1.1 Intended Use REINHARDT-Weather stations and sensors are exclusively built for stationary operation on a fixed 1" pipe for automatically collecting climatic parameters outside. Any use other than described above may cause damage of the product or or other danger. -
Page 6: Setting Up The Mws 9-5 Weather Station
NOTE Very Important ! The wind vanes of the MWS 9-5 weather station are very sensitive sensory equipment which can easily be destroyed by mechanical influence. Therefore do keep the packing of your weather station. Whenever you want to ship your weather station later, this packing guarantees that the weather station is not damaged in transport !! Time and again we have noticed that the units are damaged by wrong packing. -
Page 7: Overvoltage Protection
MWS 9-5 Manual 2.1.2 Overvoltage protection The MWS 9-5 contains an integrated overvoltage protection (Suppressordiods) at it's supply- and data wires. The power linie is protected by a SMCJ26CA-diode. This diode breaks through at voltages above 31VDC and is able to carry up to 1500W for a few milli seconds. -
Page 8: Software Installation
GmbH\Wetter\... key in the registry which is only created when running and is not deleted when the software is de-installed. Please note the instructions given on the CD for mounting the MWS 9-5. Then the weather station can be used 20 seconds after it is plugged in. -
Page 9: Start The Software
If they differ more than 10 minutes, the pro grams asks if the MWS 9-5-clock is to be set. Needless to say, the clock of the connected PC must give the correct time, as MWS 9-5 is set to the PC-clock. -
Page 10: Technical Details
-99999 that data are missing and creates a gap in the graphical displays. You may also set MWS 9-5 in such a way that it writes into the datalogger in the set memory in- terval as soon as operating voltage is applied. Then the datalogger contains data with the wrong time and cannot be read out by the delivered software. -
Page 11: The Sensors
It is therefore not recommended to set up the MWS 9-5 weather station where it is exposed to salt or salt water ( e.g. directly at the coast etc.). -
Page 12: Solar Sensor
With Version 1.2 the potentiometer will be replaced by a precision magnetical encoder without dead angle in the north direction. (since 2009) erstellt am 30.05.2012 von DO MWS 9-5e.p65 Page 12 REINHARDT System- und Messelectronic GmbH Fax: 08196/7005 and 1414 email: wetter@reinhardt-testsystem.de Web: www.reinhardt-wetterstationen.de... -
Page 13: Rain / Precipitation Sensor
If they need higher currents, the sensors must have an external power supply and its ground has to be connected to the MWS 9-5-ground (Pin 1 of the connector socket). You can call for adjustment instructions of the additional inputs at any time. -
Page 14: Accuracy Sensors
0 to 15000 mW/m (Spectral range 210..380nm) Light intensity: from 0 to 150000 Lux (Spectral range 370..680nm) erstellt am 30.05.2012 von DO MWS 9-5e.p65 Page 14 REINHARDT System- und Messelectronic GmbH Fax: 08196/7005 and 1414 email: wetter@reinhardt-testsystem.de Web: www.reinhardt-wetterstationen.de... -
Page 15: Adjustment Of Additional Sensors
After you have determined the necessary adjustment values and entered them in the adjustment file, you can transmit the changed file to MWS 9-5 as follows: Start program WS_CFG.EXE, set the interface parameters and select the name of your adjustment file. -
Page 16: Power Supply
15:24:32, 15.09.03, TE22.09, SO233.32, DR952.25, WR78.91, FE35.58, RE2.01, WG0.00, WS4.11, WD494.29, WC22.09, WV80.79, Every 2 seconds, MWS 9-5 transmits a data record which starts with time and date. Separated by comma, the single measured values with sensor identification come in the following order:... -
Page 17: System Requirements
MWS 9-5 Manual 3.8 System requirements 3.8.1 System requirements (16bit-Versions) The MWS 9-5-software needs a computer with at least 486 processor and 4MB RAM (2MB of which must be free (XMS)). Runs with WIN3x. You need a free COM-Port (COM1 or COM2, with Windows-versions COM3 or COM4 as well). -
Page 18: Connections And Pin Assignments
MWS 9-5 Manual 4 Connections and pin assignments 4.1 Cables 4.1.1 Power / Data Cable Allocation of the Connection Cable for MWS 9-5 (for version 1.4 and later). 8 way connector (MWS 9-5-connection) 9-way interface connector 1 (GND) < >... -
Page 19: Allocation Of The Connection Cable For Mws9-5 Heating Device
MWS 9-5 Manual 4.1.2 Allocation of the Connection Cable for MWS9-5 Heating Device 5 way connector (MWS 9-5-connection) Power Supply for Heating Element (24V / 1A) 2 (GND Heating) < > GND 3 (VCC Heating) < > VCC The cable (10m) must not be lengthened as it may happen that there is not enough power for the heating device when it device is working. -
Page 20: Allocation Of The Connection Cable For Mws9-5 With Rs422 / 485 Interface
Pin 1 and 2 ! The data cable can be lengthened to up to 1,000 m, the cable of the power supply to up to 50m. 4.1.3.1 Connection Diagram MWS 9-5 with RS422 / 485 Interface erstellt am 30.05.2012 von DO MWS 9-5e.p65 Page 20... -
Page 21: Pin Assignments
MWS 9-5 Manual 4.2 Pin assignments 4.2.1 Allocation of the Remaining MWS 9-5 Connections erstellt am 30.05.2012 von DO MWS 9-5e.p65 Page 21 REINHARDT System- und Messelectronic GmbH Bergstr. 33 86911 Diessen-Obermühlhausen Postfach 12 41 D-86908 Diessen Tel. 08196/934100... -
Page 22: Excerpts From The Directions Of Dwd For Automatic Weather Stations
By standard wind direction and wind speed is measured 10m above ground. erstellt am 30.05.2012 von DO MWS 9-5e.p65 Page 22 REINHARDT System- und Messelectronic GmbH Fax: 08196/7005 and 1414 email: wetter@reinhardt-testsystem.de Web: www.reinhardt-wetterstationen.de... -
Page 23: Trouble Shooting
Caution! This log-file is overwritten each time, when the software is restarted. To keep this file, store it in another place or rename it. erstellt am 30.05.2012 von DO MWS 9-5e.p65 Page 23 REINHARDT System- und Messelectronic GmbH Bergstr. 33 86911 Diessen-Obermühlhausen Postfach 12 41 D-86908 Diessen Tel. 08196/934100... -
Page 24: Rs422/Rs485 Port
To enable the weather station, you need to transmit a ? (ASCII 63) to the weather station. Only then the weather station begins to send data. When using the enclosed REINHARDT software this will be performed automatically! Otherways you may use the tool ENA422.EXE which allows to send a string to the weather sta- tion over the COM-port. -
Page 25: Options
It takes about 20sec (max.) until the display receives data from the weather station and displays them. If a MWS 9-5 weather station is connected to your display, time and date will be adopted from MWS 9-5. -
Page 26: Commands For Controlling The Lcd-Display
Baud rate by default is 4800 BAUD and the ma x imum display interval is about ca 30 sec. erstellt am 30.05.2012 von DO MWS 9-5e.p65 Page 26 REINHARDT System- und Messelectronic GmbH Fax: 08196/7005 and 1414 email: wetter@reinhardt-testsystem.de Web: www.reinhardt-wetterstationen.de... -
Page 27: Other Available Displays
Small digital meteo display for displaying 10 parameters simultaneously with digit size 13 mm. Available for wall mounting or placing on a table. For indoor use only. erstellt am 30.05.2012 von DO MWS 9-5e.p65 Page 27 REINHARDT System- und Messelectronic GmbH Bergstr. 33 86911 Diessen-Obermühlhausen Postfach 12 41 D-86908 Diessen Tel. 08196/934100... -
Page 28: Technical Appendix
E.g.: You measure 3054 V at 24.5 °C for additional sensor A in the 3rd position of your adjustment table, it will look like this : !L5,3,F3054 <#13> !L5,3,W24.5 <#13> erstellt am 30.05.2012 von DO MWS 9-5e.p65 Page 28 REINHARDT System- und Messelectronic GmbH Fax: 08196/7005 and 1414 email: wetter@reinhardt-testsystem.de Web: www.reinhardt-wetterstationen.de... -
Page 29: Controlling The Microprocessor
Bit 5 - Resets the lightning-input once every day (Version 2.24 and later) Bit 4 - Connection of serial Reinhardt-sensors to the GPS-input (Version 2.24 and later) Bit 3 - ALTERNATIVE SENSORS (Version 2.13 and later) (outputs alternative sensors (valuePort A and GPS-satellites) instead of the Standard-... - Page 30 X is the decimal value of the following binary list for the various protocols. Binary list of the protocol-parameter for X. X (binary) = xxxxxx00b : RS232 - MWS 9-5 transmits a data record every 2 sec xxxxxx01b : RS422 - MWS 9-5 transmits a data record every 2 sec xxxxxx10b :...
- Page 31 !Z0#13 no storage Time zone with GPS-reception (deviation from UTC-time): '!' 'ZZ' <full hours> <#13> erstellt am 30.05.2012 von DO MWS 9-5e.p65 Page 31 REINHARDT System- und Messelectronic GmbH Bergstr. 33 86911 Diessen-Obermühlhausen Postfach 12 41 D-86908 Diessen Tel. 08196/934100...
-
Page 32: Querying Parameters Of The Microprocessor
Only the info about the configuration of the sensors will be sent. '!' '?2' <#13> Only the info about the sensor 2 (temperature) will be sent..and so on. erstellt am 30.05.2012 von DO MWS 9-5e.p65 Page 32 REINHARDT System- und Messelectronic GmbH Fax: 08196/7005 and 1414 email: wetter@reinhardt-testsystem.de Web: www.reinhardt-wetterstationen.de... -
Page 33: Order Of The Mws5M Sensors
Voltage Heating control Leaf moisture PF Watchdog or PortA resp. PF Voltage control or GPS-Satell. erstellt am 30.05.2012 von DO MWS 9-5e.p65 Page 33 REINHARDT System- und Messelectronic GmbH Bergstr. 33 86911 Diessen-Obermühlhausen Postfach 12 41 D-86908 Diessen Tel. 08196/934100... -
Page 34: Packing Mws 9-5 Properly
In case you want to ship your MWS 9-5, you must use the original packing. This packing was especially designed for MWS 9-5. It is the best protection against damage or destruction during transport. In this packing it will not even be damaged if it falls from 1 m height onto a stone floor.
