NuTone Smart Home Series Quick Start Manual

QUICK START GUIDE
Your phone is smart. Your home should be too.
Thank you for purchasing a NuTone Smart Home Series product that will allow
you to automate your home on your terms. Operate and control virtually any
electrical device or appliance from anywhere without the expense and hassle of
running new wiring. Choose your favorite Home Automation gateway with
Z-Wave, connect it to the internet and add the NuTone Smart Fixture Control to
operate virtually any electrical device or appliance from your smart phone or
another NuTone Smart Home Series switch.
A video of this installation procedure can be viewed on-line at:
www.nutone.com/HomeAutomation
For additional help, please view the NFS20Z Troubleshooting
and FAQ guide.

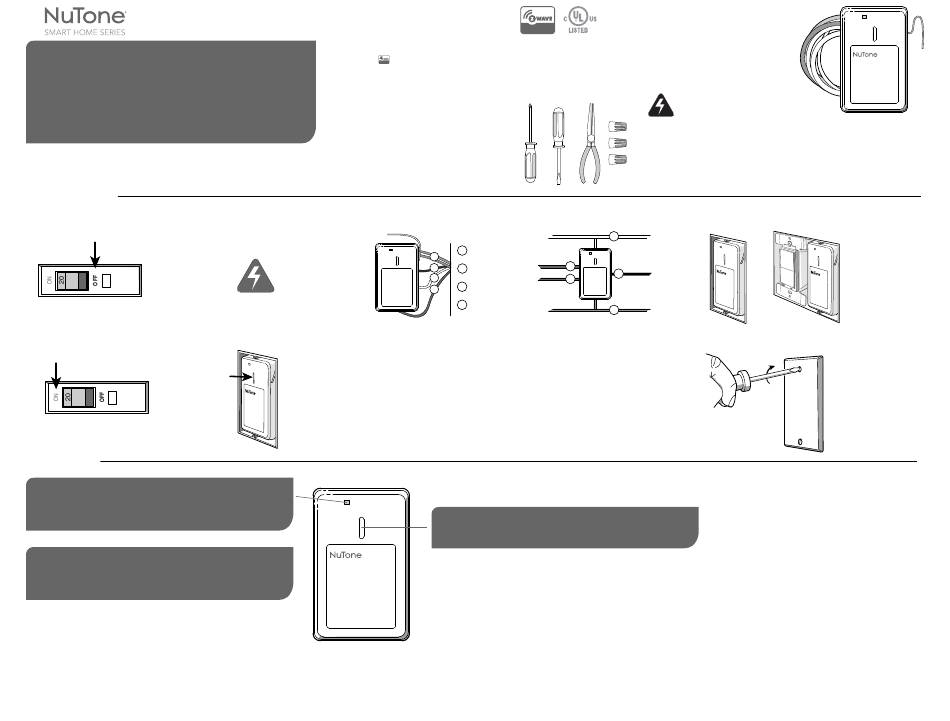

INSTALLATION

1 2
Turn power OFF for control at
Ensure power to all wires and
the main circuit breaker panel. controlled device is turned off.
5 6
Turn power ON at the main Push button to turn on.
circuit breaker panel.

OPERATION

The LED on the NFS20Z will turn on when the load attached is
ON. If desired, the LED can be user configured to turn ON
when the load attached is OFF. The LED will flicker when
NFS20Z is transmitting.
Refer to the NFS20Z instructions included with this RF
Controlled Isolated Contact Fixture Module and the Home
Automation gateway instructions for your specific system to
assign devices to your system network.

SPECIFICATIONS

Power: 120 VAC, 50/60 Hz
Signal: (Frequency): 908.42 MHz
Range: Up to 100 feet line of sight between the Wireless Controller and/or closest Z-Wave Repeater.
Broan-NuTone LLC 926 West State Street Hartford, WI 53027
NFS20Z
Smart Fixture Control
Series 300
Ensure your favorite home automation gateway (SOLD SEPARATELY) has
Z-Wave, connect it to the internet and you are now ready to add the
NFS20Z.
The NFS20Z Smart Fixture Control
which guarantees compatibility.

TOOLS REQUIRED

• Screwdriver, Flat Head
• Screwdriver, Phillips
Head
• Pliers
3
Connect all wires.
NuTone
7
System Pairing adding the NFS20Z to your controller
1. Place your Home Automation gateway with Z-Wave into
Discovery or Add mode.
2. Refer to your Z-Wave controllers instructions for additional
information on adding devices.
NuTone.com Toll Free (855) 249-0610
has Z-Wave certification
WHITE
LOAD &
1
LOAD POWER
1
(BLUE)
BLUE
1
2 LOAD
2 POWER
NuTone
(BLACK)
3
1
LOAD
POWER
BLUE
3 NEUTRAL
4
(WHITE)
4 GROUND
(GREEN)
GREEN
For testing, when the button on the face of the NFS20Z is
pressed, the power to the controlled load will turn on. When the
button is pressed again, the controlled load will turn off.

IC NOTICE

This Class B digital apparatus complies with Canadian ICES-003. Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device.

COMPONENTS SUPPLIED

• Smart Fixture Control
DANGER! SHOCK HAZARD. Read and
understand the installation instructions and this quick
start guide before installing. This device is intended for
installation in accordance with the National Electric
code and local regulations in the United States, or the
Canadian Electrical Code and local regulations in
Canada. It is recommended that a qualified electrician
perform this installation. Retain instructions and guide
for future use.
4
Install
NFS20Z.
3
BLACK
2
CONTROL
POWER
4
8
Install wall plate.

REGULATORY INFORMATION

The NFS20Z is certified to comply with applicable FCC and IC rules
and regulations governing RF and EMI emissions.This device
complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.

FCC NOTICE

Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions may
cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
Z-Wave® is a registered trademark of Sigma Designs
99045337A
