Package Content
The following items should be included:
• NAS Server unit (including 4 HDD trays)
• Power cord
• Screws
• CD-ROM (includes user's manual, utilities)
• Quick Installation Guide
If any of the above items are damaged or missing, please contact your dealer
immediately.
ESD (Electro-static Discharge) Warning
Electro-Static Discharge (ESD) can damage the internal components of the NAS-
3410. Avoid contact with any component or connector on any adapter card, printed circuit
board, or memory module.
Perform all unpacking and installation procedures on a ground-connected anti-static mat.
Wear an anti-static wristband grounded at the same point as the anti-static mat. You can
also use a sheet of conductive aluminum foil grounded through a one-megaohm resistor
instead of the anti-static mat.
Similarly, a strip of conductive aluminum foil wrapped around the wrist and grounded
through a one megaohm resistor serves the same purpose as a wristband.
Hardware Installation Procedures
Step 1: Pull out a HDD tray from the NAS-3410 mobile rack.
Step 2: Configuring the jumper on your hard disk using Cable Select (CS) before installing
to the hard disk tray. (Refer to your hard disk's user manual for the instruction)

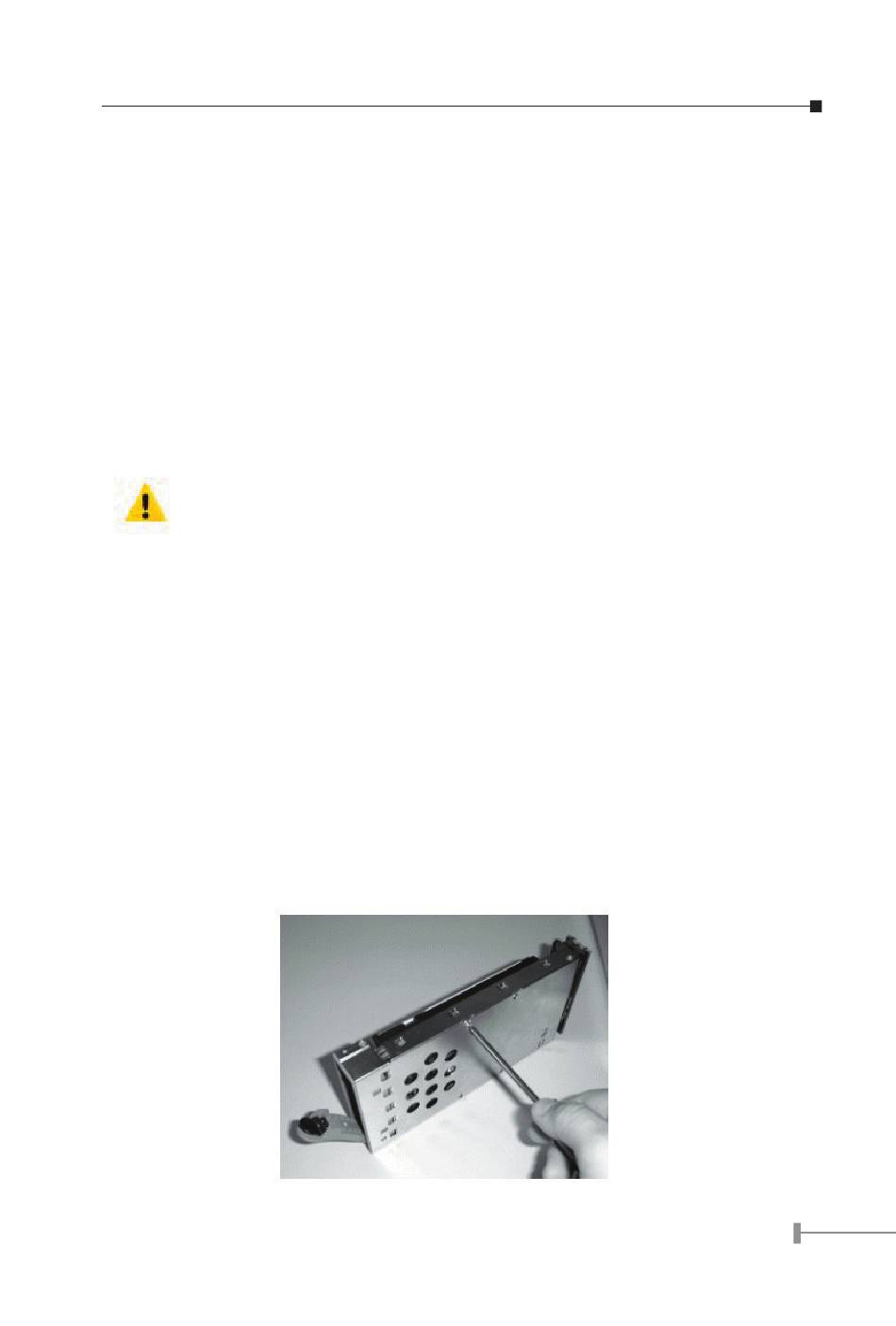

Step 3: Secure and mount a hard disk onto the HDD tray using four screws under the
tray.
1
Advertisement
Table of Contents
Summary of Contents for Planet Networking & Communication NAS-3410
-
Page 1: Package Content
Hardware Installation Procedures Step 1: Pull out a HDD tray from the NAS-3410 mobile rack. Step 2: Configuring the jumper on your hard disk using Cable Select (CS) before installing to the hard disk tray. - Page 2 Step 5: Repeat Step 1 to Step 3 if necessary for the other HDD trays. Step 6: Connect your NAS-3410 to the network by attach a LAN cable from the LAN port located at the back of your NAS-3410. (At least one network connection is required) Step 7: Plug the power cord into the power connector on you NAS-3410.
- Page 3 Step 3: Move the cursor to Yes by pressing the left button and then press the middle button to confirm. Step 4: Move the cursor to the correct position using the left or right button. Then press the middle button to change that number. Step 5: After you edit the last digit of the IP address, press the right button and configure the Subnet Mask address.
-
Page 4: Create Volume
Accessing the Administration Home Page You can configure the detail settings of your NAS-3410 in the administration home page. To access the administration home page, type the IP address of your NAS-3410 in the address field of the web browser: http://192.168.1.1 /admin/... - Page 5 Create Folder 1.Enter NAS-3410 homepage Security -->File/Folder page 2.Enter the volume that you want to add a new folder.
- Page 6 4. Enter the folder name and the new folder will be created immediately. Create Share You can share a specific folder in any volume created in the NAS-3410 with others on the network. When you create a share, you can assign the permission to the share that others will be allowed or denied when they access the share over the network.
- Page 7 2. Select the folder you want to share and click the hyper link Create. 3. Enter the share name, share comment and select which protocol you want to share. When done please click the Apply button.
- Page 8 NAS-3410. Further Configuration If you want to configure more settings of NAS-3410, please refer to the user's manual in the CD. If you have any difficulty on resolving the problem while installing or using the NAS-3410, please feel free to contact your local dealer or PLANET Technical Support.
