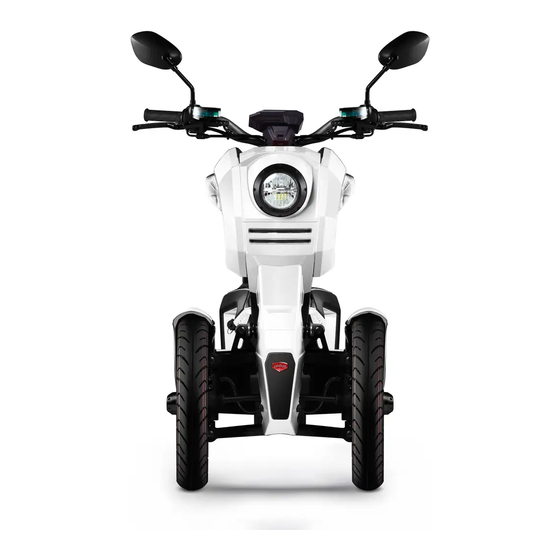

  • Page 2 DOOHAN Intelligent Electric Motorcycle DH01 Intelligent Electric Motorcycle Product use instructions Executive standard：168/2013/EU Q/ZGDQ· 001 Zhejiang Doohan Technology Corp LTD...
  • Page 3 The company reserves the right of final interpretation. Hope you enjoy your driving, once again thank you for purchasing DOOHAN DH01 intelligent electric motorcycles.
  • Page 4 Important notes  Driver and passenger  This motorcycle is designed for only one driver to operate. Never exceed the load weight provided on this manual.  Road Conditions  This motorcycle shall only be driven on the normal road. The motorcycle can be driven in the rain and snow, but cannot wade.
  • Page 5 Warning： It means that if not abiding by the instructions in the manual, your operation may cause serious casualties. Attention： It means that if not abiding by the instructions in the manual, your operation may make people injured or machine parts damaged. This manual shall be regarded as a permanent part of the right three-wheel electric motorcycle.

  • Page 6: Table Of Contents

    Contents I、Safe Driving of intelligent electric motorcycles. II、Position drawing of every machine part and operation manual III、Daily inspection and adjustment IV、Operation guidance V、Maintenance and repair VI、Common Fault and elimination methods VII、Vehicle Storage VIII、Vehicle Identification IX、Main technical data X、Electrical schematic diagram...
  • Page 7 I Safe Driving of Right Three-wheel Electric Motorcycle Safe Driving Regulations 1. Many traffic accidents of right three-wheel motorcycles are caused because car drivers fail to see intelligent electric motorcycles drivers, therefore, right three-wheel electric motorcycle drivers should try to enable car drivers to see them clearly, for example: ※...
  • Page 8 7. While driving, both hands must hold the handlebar, and two feet should be put on the pedal. 8. While driving, calling or answering the phone, as the main cause of inattention, is likely to cause traffic accidents. Please stop your motorcycle first, then call or answer the phone. 9.

  • Page 9: Position Drawing Of Every Machine Part And Operation Manual

    Position drawing of every machine part and operation manual Diagrammatic sketch of components and parts License Head instru Glove Back plate Lamp Side ment compartment mirror lamp battery Steering cover Side lamp Tail stand light Cushion Front keyhole battery cover...
  • Page 10 Diagrammatic sketch of components and parts Front brake Handle Charging handle Handrail port Reflector Rear brake handle...
  • Page 11 Instrument board illustration...
  • Page 12 Icon illustration...
  • Page 13 Power switch： Starting state Off state Locking handlebar △ Starting up operation ① Hit the unlock key of remote control, and unlock successfully. ② After the confirmation of successful unlock, insert the key and turn to“ ”position. After that, the motorcycle can be started and keys cannot be pulled out. ③...
  • Page 14 Right combination switches: ： Back-up switch Dial up R for backing, dial down D for moving forward 2. Gear switch： 1 is the low gear 25km/h, and 2 is high gear 45km/h. Gear switches can be used to interchange 25km/h and 45km/h. 3.
  • Page 15 Left combination switches： Distant Light and dipped headlight 1. Headlight dimmer switch： Overtake Press down “ ”to light up the indicator light distance indicator light; “ ”to light up the dipped headlight. Press down 2．Overtake indicator light button Turning indicator lights Press down this button, the overtake indicator light will be lit up.
  • Page 16 Battery Installation Battery installation of side compartment 1. Open the front and back battery compartment ① Open glove compartment: insert the key into the keyhole of glove compartment, and reeling open the glove compartment cover. ② Open battery compartment: rotate the rotary knob to the corresponding position along the direction of B to open the lock of front battery compartment, and rotate along the corresponding direction of A to open the side battery compartment lock.

  • Page 17: Daily Inspection And Adjustment

    Attention: When the battery level is lower than 1%, please charge the battery immediately. When battery is in under voltage, you can’t charge the battery by connecting the charging port in the scooter, while you need taking the battery out then charge the battery. (When battery is in under voltage, overcurrent, overheat, the battery is the state of protection.
  • Page 18 （3）If the brake pads are abraded, and the brake fluid does not exceed the limitation, usually it indicates that oil leak exists. Please seek check and repair service from maintenance station. （4）Brake oil：DOT3 or DOT4 Notice: Once you need to maintain brakes, drivers should ask for the handy special maintenance department who is responsible for the maintenance and inspection of motorcycles.
  • Page 19 Warning:  Substandard tire pressure would make the tire treads suffer a serious abrasion and may cause accidents because of that. While much lower tire pressure would cause tire slip or pulling away from rims.  It is extremely dangerous to use seriously worn tires, which would impact the adhesive forces between tires and the road surface, and make difficulties for driving and even cause accidents.

  • Page 20: Operation Guidance

    IV、Operation guidance 1. Starting, hold the handlebar with both hands, bestride the motorcycle from the left side and sit on the saddle with left leg support against ground, turn the power switch to ON and rotate the handlebar in the direction of the rider gradually instead rotate rapidly it to maximum. Warning: After the front and back wheels of the intelligent electric motorcycles is down to the ground, provided that the rider is not sitting on the saddle for riding, do not turn the power on and rotate...
  • Page 21 3. Parking ① Rotate anticlockwise the key to state after reach the destination and the entire motorcycle will power off, then remove the key. ② Make the side shoring be parking state and the motorcycle inclines to left with side shoring supported.
  • Page 22 6 Braking operation (1) Control speed This is very significant that in case of speed reduction of the intelligent electric motorcycles, control the rotation，coordinate the operation of the front and back brakes. Warning: when riding on humid or loose road or in rainy day, pay more attention whether braking, speeding up or steering.
  • Page 23 7. Charging Motorcycle charging ① Open the motorcycle charging port by turning the cover, insert the charging plug into recharge socket until you hear “click” which means that the charging plug has connected with the socket, then connect the charger’s input with electric supply. The indicator light turns green to red means it starts charging and on the contrary, it is fully charged.
  • Page 24 Attention: If the batteries cannot be fully charged after more than 10 hours charging, please stop charge and contact the aftersales department for maintenance. In order to expand the batteries’ maximum service life, circularly use it with the scope of batteries quantity between 20%-80% if possible.

  • Page 25: Maintenance And Repair

    V、Maintenance and repair In order to expend the motorcycle’s service life and have a safety and comfortable ride, please check and maintain the right three-wheel electric motorcycle regularly even if it has been placed for a long term. 1．Scheduled maintenance and repair It is required to have first maintenance after one month or 500km since purchase and go to aftersales department for complete maintenance and inspection every six months or 3000km after that, which can maintain your motorcycle in best safety state and ensure the safety of the rider as well as the...
  • Page 26 Warning: for your own safety, in the event that you cannot repair or adjust the motorcycle, please send back to dealer for maintenance. Please repair and adjust the motorcycle on flat road with kickstand set up, if it is necessary to check while riding, pay attention to traffic safety.
  • Page 27 Periodic Maintenance and Inspection Items Brake Wheel bearing Shock absorber lamplight Construction check Main jiffy stand Regular safety and Horn Steering bearing performance inspection Electronic parts Fuse wire Battery Tire Major parts Main harness Control system Construction check Lubrication 3. Using tips for the usage of the whole motorcycle ⑴...
  • Page 28 and rain, lest the corrosion of motorcycle body or rotating parts; using in rainy day, the wheel hub should not be covered above axle centerline, lest motor is broken down with water flowed in. ⑹ Please scrub the motorcycle, clear the surface of motor and other parts and keep clean; do not scour the electric parts and drive parts with water directly.
  • Page 29 controller (MCU), MCU immediately executed, the speed control in 35 yards, no output will not result in a vehicle, just reduce the power consumption rate. Content inspection extensive search 1） Stationary handlebar 2） Flexible rotation 3） No axial float and loose 1）...
  • Page 30 ⑾ The motorcycle has been checked out when delivery and unauthorized modification is not allowed, the factory is not responsible for the significant problems caused by above reason. 4. Using tips for motor and controller ⑴Please do not speed up rapidly when start at zero speed or on the uphill, muddy or upwind road, lest cause incremental losses of motor and accumulator.
  • Page 31 If some metal enter the battery holder, it may cause batteries leaking, heating, and smoking, even fire disaster or explosion. In case of the batteries have peculiar smell, emit heat or are out of shape, please cease using immediately, keep away from the batteries and contact after sales department. Warning: Batteries are not belongs to the assembly units which users can repair by their selves, in case of fault, please contact the after sales department for maintenance, disassemble batteries without approval may cause batteries leaking, heating, and smoking, even fire disaster or...

  • Page 32: Common Fault And Elimination Methods

    ⑸ The charger should be stored in dry and ventilated place and do not jolt or collide in case of carrying; otherwise, it will lead to breakdown. ⑹ Miniwatt AC voltage stabilizer is advised to use in areas of voltage instability; otherwise, it may cause that the batteries are undercharge or the charger breaks down.
  • Page 33 Reference Disposal Method for Common Fault Elimination methods Fault Fault cause phenomenon 1． Remove the key and reinsert 1． Battery plug isn’t inserted properly; Turn power on, the plug. 2． Key switch is breakdown; but the entire 2．Replace electric door lock 3．...
  • Page 34 low or distance 2． Low tire pressure 2． Check the tire pressure per charge is before using. 3． Too often braking and start or short overload 3． Develop good driving habits. 4． Aged or normally damped batteries. 5． Under low-temperature 4．...
  • Page 35 Storage Short-term Storage： 1）Please store the motorcycle on flat place with good ventilation and desiccation； 2）In order to insure the batteries’ service life, please charge them to at least 50% prior to store it； 3）Try to prevent the motorcycle from sun and rain, which can help reduce damages or aging of the parts；...

  • Page 36: Vehicle Identification

    VIII、Vehicle Identification Vehicle model，number and label position of the products The intelligent electric motorcycles VIN and Motor number are required to present when registration, receiving driving license and annual verification, as well as reparation or replacement of parts in the “three guarantee”...
  • Page 37 Maintenance Record Date Mileage Notes Dealer...
  • Page 38 Maintenance Record Date Mileage Notes Dealer...

  • Page 39: Main Technical Data

    IX、Main technical data Main dimension vehicle length 1780mm vehicle width 730mm vehicle height 1030mm Wheelbase 1250mm Track front 460mm Main performance Curb weight 108kg Designed maximum First gear 45km/h speed Second gear 70km/h Rated voltage ≤2m(20km/h) Maximum ayload 160kg Braking distance（dry ≤3.5m(30km/h) land）...
  • Page 40 saddle height 750mm ≤30° Max angle of leaning ≤32.5° Max angle of steering Maximum Range of the Head in the Front 183mm Wheels Battery system Battery type 18650 Ternary Lithium Battery Voltage Capacity 26AH×2 Standard charge current Maximum discharge current Standard charge time 6H~7H Biggest continue voyage course...
  • Page 41 Cover plate material of the Battery Aluminum plate Compartment Power system BOSCH custom motor Motor type Motor controller Sine wave controller Maximum rotation rate/idling 920rpm/48W/13.5% power/efficiency Rated power/rotation rate/efficiency 3000W/700rpm/88.1% Maximum power/rotation rate/efficiency 3600W/740rpm/88% Maximum torque/rotation rate/efficiency 135N· m/75rpm13.7% Maximum energy recovery 10%~15% Maximum current of controller Motor energy utilization rate...

  • Page 42: Electrical Schematic Diagram

    X、Electrical schematic diagram...
