Operating Instructions
11060S AUTORANGING MULTIMETER
Instrucciones de uso
Multímetro de Rango Automático 11060S
UL61010-1
Scan for warranty information
and to access our mobile site.
Escanea para información de garantía
y acceso a nuestro sitio móvil.
12/14 Rev. 1
TESTING EQUIPMENT
11060S manual
E361819
southwiretools.com
1-855-SW-T00LS
Toll Free Technical Help
Línea de Ayuda Técnica Gratuita
Contents Made in China
Product distributed by Southwire Company, LLC
One Southwire Drive, Carrollton, GA 30119
©2014 Southwire Company, LLC. All rights reserved.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Southwire 11060S
Summary of Contents for Southwire 11060S

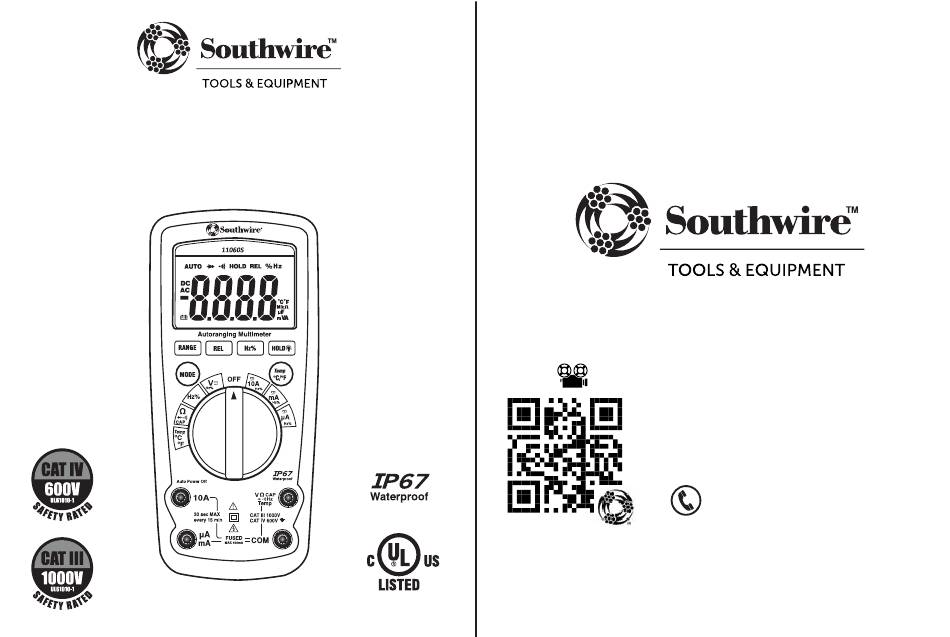

- Page 1 Product distributed by Southwire Company, LLC and to access our mobile site. One Southwire Drive, Carrollton, GA 30119 Escanea para información de garantía ©2014 Southwire Company, LLC. All rights reserved. y acceso a nuestro sitio móvil. UL61010-1 12/14 Rev. 1...
-
Page 2: Input Limits
• Replace the battery as soon as the low battery warning appears. • Do not apply voltage or current that exceeds the meter’s The Southwire 11060S multimeter measures AC and DC voltage and current, resistance, temperature, capacitance, frequency and maximum rated input limits. -
Page 3: International Safety Symbols
Maintenance International Safety Symbols Potential danger. Indicates the user must refer to the This Multimeter is designed to provide years of dependable service, manual for important safety information if the following care instructions are performed: Indicates hazardous voltages may be present 1. -
Page 4: Operation
Operation Operation The “HOLD” icon will be displayed on the LCD. Momentarily press the HOLD MODE Button button again to return to normal operation. To select Ω/Diode Test/Continuity/Capacitance, AC/DC Voltage, AC/DC Current Backlight Button RANGE Button The backlight illuminates the display when the ambient light is too low to permit When the meter is first turned on, it goes into the Autoranging mode. -
Page 5: Ac And Dc Voltage
Operation Operation AC and DC Voltage 6. Remove power from the circuit under test, then open up the circuit at the point where you wish to measure current. WARNING: Observe all safety precautions when working on live voltages. 7. Touch the test probe tips in series with the circuit being tested. For DC measurements, touch the red test probe to the positive side of the 1. -
Page 6: Continuity Test
Operation Operation Capacitance Measurements Continuity Test WARNING: WARNING: Safely discharge capacitors Never test continuity on a live circuit. before taking capacitance measurements. 1. Set the rotary function switch to the CAP position. 1. Set the rotary function switch to Wire 2. -
Page 7: Temperature Measurements
Operation Operation Temperature Measurements WARNING: To avoid electric shock, do not operate your meter until WARNINGS: the battery door is in place and fastened securely. To avoid electric shock, do not let the temperature probe contact live circuits. Replacing the Fuses 1. -
Page 8: Specifications
Specifications Specifications NOTE: Accuracy is stated at 65°F to 83°F (18°C to 28°C) and less than 70% RH. Function Range Resolution Accuracy (% of reading) Function Range Resolution Accuracy (% of reading) ± 0.8% of rdg ± 5 digits 400.0 ±... - Page 9 Range Resolution Accuracy (% of reading) the QR code on this manual. At Southwire, we are dedicated to providing you with the best customer experience. By following a few quick steps to register, ± 3% of rdg ± 5°C -20°C~+760°C 0.1°C...
