Summary of Contents for AquaDriver SkimClean HELIX

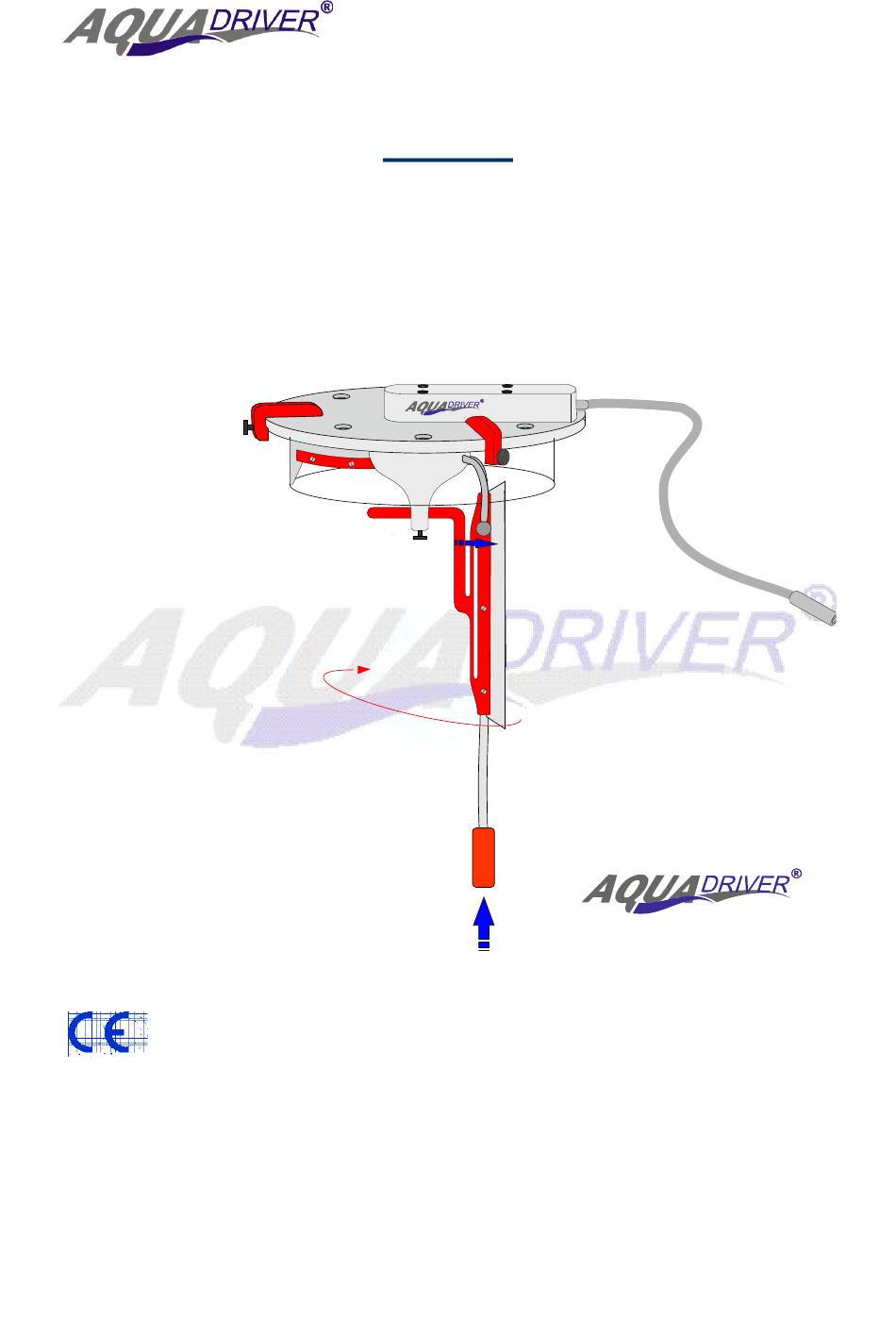

- Page 1 Manual AquaDriver SkimClean HELIX* SkimClean Helix *Device for automatic, hydromechanical verticas & horizontal Cleaning in skim tubes from Proteinskimmers - 1 -...
- Page 2 Safety Advice Please, read this manual carefully and keep it in a safe place. • The power supply unit from the SkimClean supplied may only be used within buildings where a correct connection to sockets with 110 – 230 volts voltage is provided.
- Page 3 After adjusting and assembling the SkimClean HELIX, place it back on top of the skimmer collection cup and start testing the function of the self-sucking rotation pump by using the plug power supply unit.
- Page 4 During the cleaning process or right after a large amount of skim could be developed due to the fact that a thin protein layer is being removed by the skim wiper. Test the effect of the device before the SkimClean HELIX is controlled by a timer making sure that the skimmer doesn’t overflow.
- Page 5 - 5 -...
- Page 6 Explanation Position 1: Drive unit 12V DC Position 2: Lid set screw Position 3: hydromechanical rotation pump Position 4: humidification nozzle horizontal & vertical Position 5: connection plug to 12V DC Position 6: vertical adjustment device / Wiper Position 7: Wiper with hose and wiper blade Position 8: self sucking silicon hose Position 9: Removable filter Position 10: Horizontal Wiper for Lid Cleaning...
- Page 7 EG-Conformity Declaration according to EG-Machine regulations 98/37/EG Annex II A We declare that the machine described as following goes conform by the listed regulations. Brand: SkimClean HELIX (automatic cleaning device for skim tubes of floatation reactors) EG-Regulations: Machine regulations (98/37/EG)
