Combination Ladder User Manual (KTY)

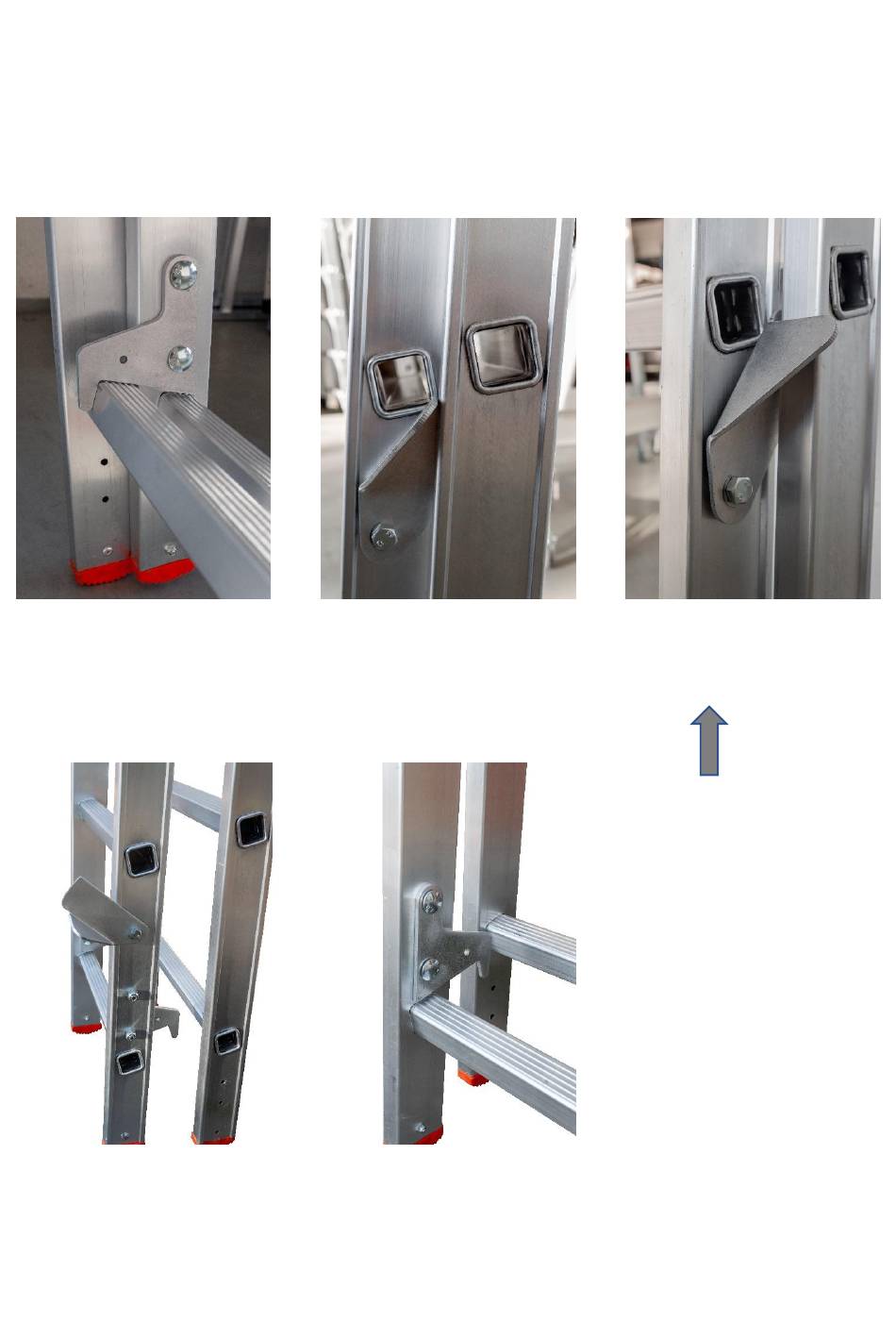

Segment hook in place
The segment hooks are used to adjust ladder height step by step. The segment lock is used to lock the
ladder at the desired height, so that the ladder can be moved and lifted.
Segment lock (open)
Segment lock (closed)
Segment hook not in place
Segment lock (closed)
Before climbing onto the ladder,
you must always check that the
segment hooks are properly in
place and that the segment lock is
closed, as shown in the pictures
above.
Photos on the left:
When the segment lock is open,
the segment hook can be moved
freely to adjust ladder height.
Advertisement
Table of Contents
Summary of Contents for Suomi-tikas KTY
- Page 1 Combination Ladder User Manual (KTY) Segment hook in place Segment lock (closed) Segment lock (closed) The segment hooks are used to adjust ladder height step by step. The segment lock is used to lock the ladder at the desired height, so that the ladder can be moved and lifted.
- Page 2 Top guide from the inside Top guide from the outside Before use, you must always make sure that the ladders’ top guides are placed correctly and that the ladder stiles pass through them as shown in the picture. In combination ladders, the top guides are equipped with hinges (see photos below) that allow the ladder to be used as a trestle ladder.
- Page 3 Limiter strap is loose. Limiter strap is tight. Do not climb onto the ladder! It is safe to use the ladder! Only climb onto the ladder from the front side of the ladder, otherwise the steps will not be at the correct angle in relation to your feet. In the picture you can see how the steps are tilted towards the user when standing in front of the ladder.
