Hotronix Power Platen Quick Start Manual

Hotronix
POWER PLATEN

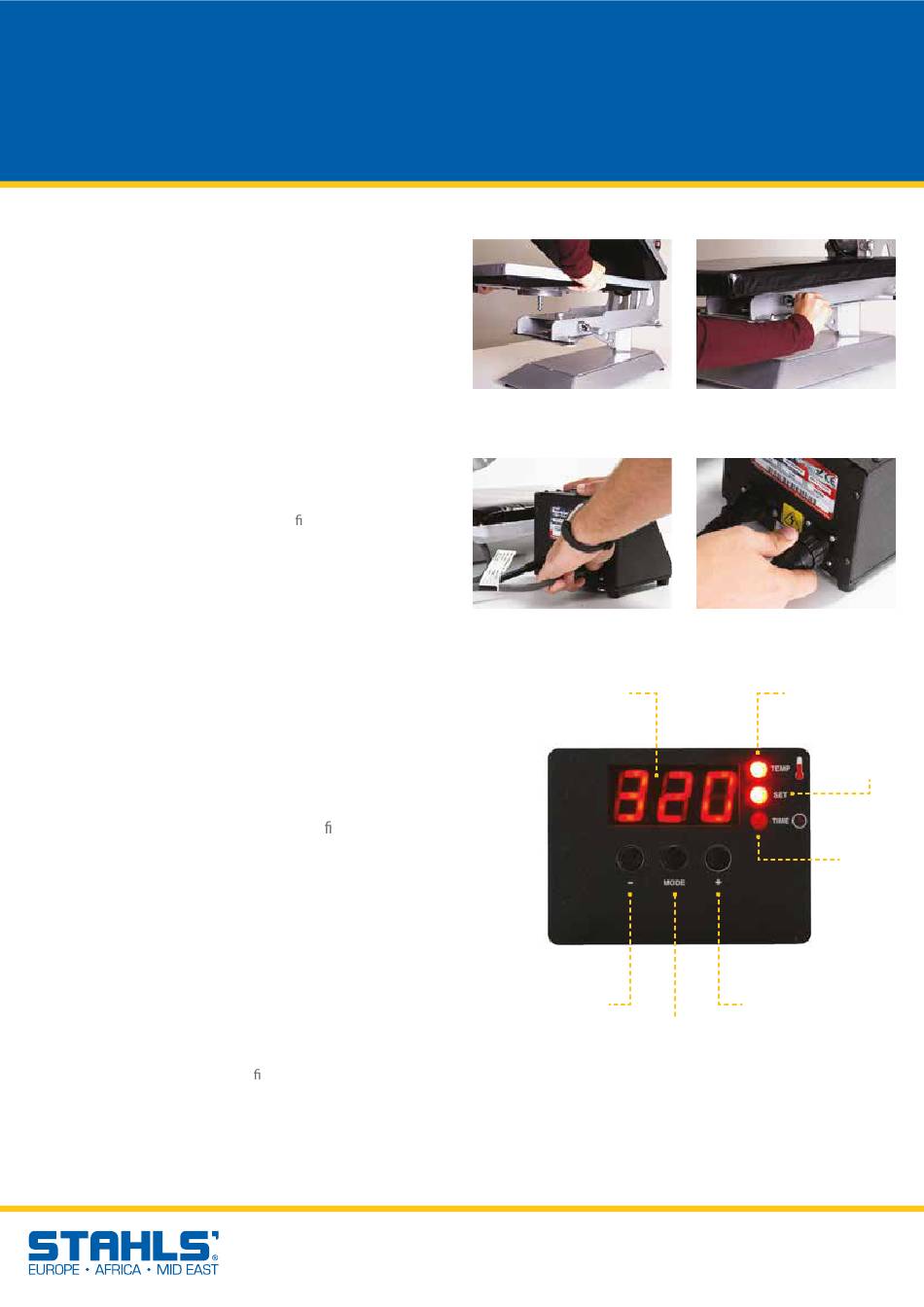

Attaching to Press

Remove existing lower platen (1.1).
Leave Power Platen controller disconnected and to the side.
Insert Power Platen spindle and secure (1.2).

Attaching Controller to Power Platen

Once the platen is securely in place, attach the UNPLUGGED
controller by inserting the cable (2.1) and nger tightening
the clamp (2.2).
Now plug the Power Platen controller into a dedicated circuit.
Note: Do not lay platen face down on any surface when hot.

Adjusting Temperature

Press the Mode Select button in the center of the Control Panel.
The (SET) and (TEMP) lights located next to the display will illuminate.
Press the (+) or (-) button to raise or lower the temperature setting.
The temperature can be set from 205°F (96°C) to 320°F (160°C).
The LED Display will show changes as you make them.
Pressure will be adjusted on the upper platen.
Caution: Please note the maximum pressure speci cation when using the Power Platen:
15x15 cm
Sleeve/Leg 15x50 cm
28x28 cm & 40x50 cm
Note: The temperature indicator will only display temperatures 200°F (93°C) and up.
When using Power Platen please use this settings to apply your transfer:
Heat Platen Transfer Press:
Power Platen:

Safety

This product is designed for a speci c and intended use; do not use this product for anything other than its intended use.
CAUTION: HOT Do not remove until unit is completely cooled.
INFO:
Compatible with all Hotronix® Heat Presses, use Hotronix® Fusion™ with Power Platens only in Swing Mode.
For heat presses with a machine born-on date before 2014, call us please.
®
max. 1 bar (light pressure)
max. 2 bar (light to medium pressure)
max. 2-3 bar (medium pressure)
120°C
130°C
STAHLS' Europe GmbH
Dieselstraße 62
66763 Dillingen
™
Quick Start Guide
1.1
2.1
Digital
Display
Decrease
Mode Select
Tel.: +49 (0) 68 31/97 33 - 0
info@stahls.de
www.stahls.eu
1.2
2.2
Temperature
Indicator
Set
Indicator
Time
Indicator
Increase
2-Year-Warranty!
