Summary of Contents for First Innov PRIMAPROTECT

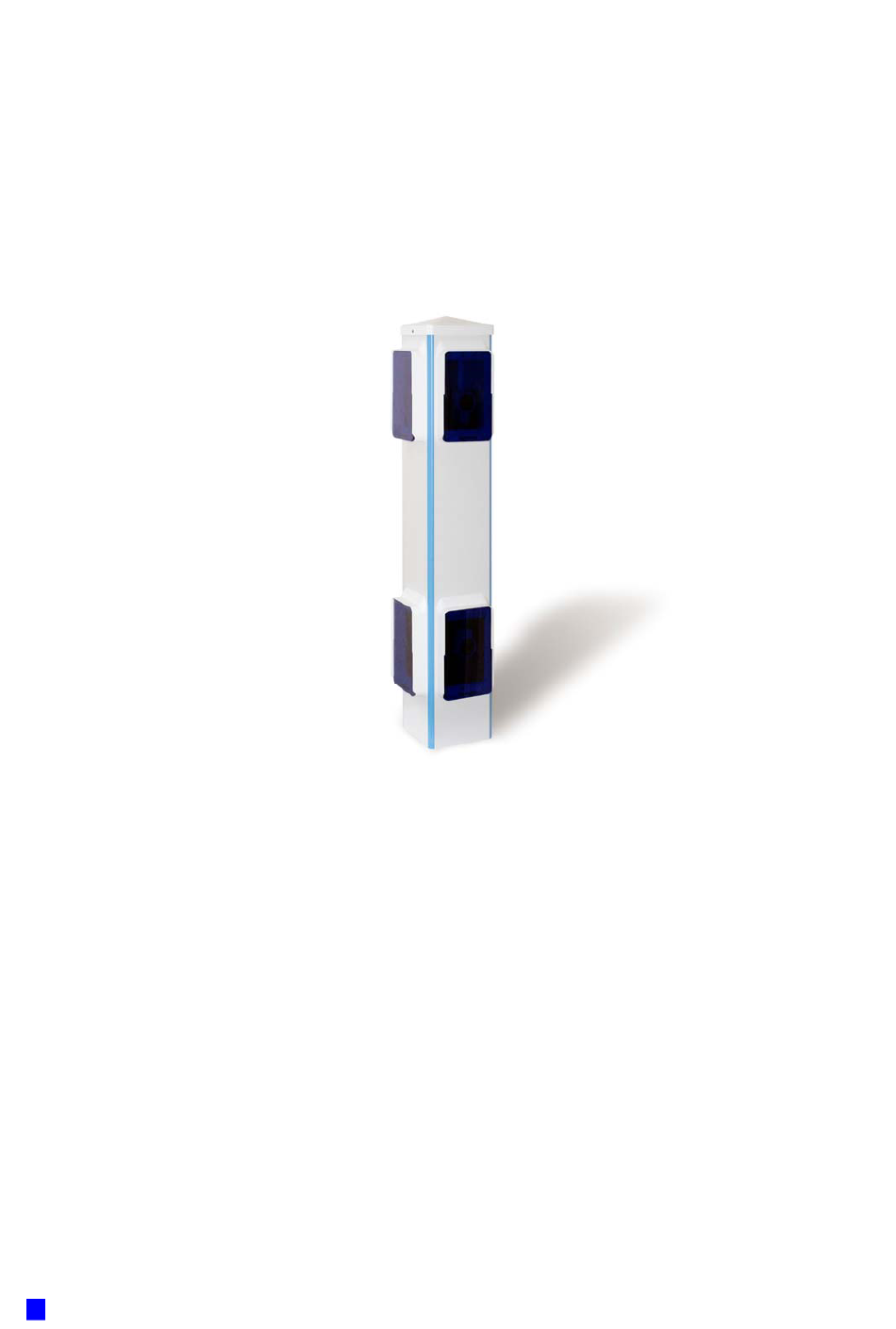

- Page 1 User notice Primaprotect version 1.0 INFRARED PERIMETER POOL ALARM SYSTEM PRIMAPROTECT User and Installation Notice To read attentively and to conserve for further consultation The alarm system Primaprotect is AFNOR NF P 90-307 compliant.
- Page 2 User notice Primaprotect version 1.0 This alarm system does not replace neither the common sense nor the individual liability. Its purpose is not to replace the vigilance of the parents and/or the responsible adults, which remains the main factor of protection of children under five years old.
-
Page 3: Table Of Contents
User notice Primaprotect version 1.0 Table of contents FUNCTIONAL DESCRIPTION OF THE PRIMAPROTECT ALARM SYSTEM COMPONENTS OF THE KIT : INSTALLATION Positioning the posts: Limits regarding the positioning of the posts Preparing and mounting the posts Plugging the batteries Matching and aligning the infrared beams... -
Page 4: Functional Description Of The Primaprotect Alarm System
One at 20 cm and the other one at 45 cm from the ground. You can add various extra features to the Primaprotect alarm system such as (see § 6) : - A remote control or a remote keypad with a digit security code - A safety bracelet that detects the fall into the water of the child that wears it. - Page 5 User notice Primaprotect version 1.0 Receiving cell LEDs : Transmitting cell Green LED : the cells are properly aligned The cells are not Red LED : Battery connector aligned. Red LED: ” Failure” 9V battery 3V battery Activation/Deactivation Integrated siren...
-
Page 6: Installation
NB : It is advised to have a professional install and maintain your alarm system. Your central unit Primaprotect must be installed in such way that it can not be moved with bare hands (without appropriate tools). Use an adapted drill with a 12 mm diameter bit, an electric or a regular Phillips screwdriver For your installation, do not start drilling right away. -
Page 7: Limits Regarding The Positioning Of The Posts
User notice Primaprotect version 1.0 3.2 Limits regarding the positioning of the posts Warning A wrong installation may cause dysfunctions of the system which represents a real danger to the safety of your child. Do not expose the posts too close to a reflecting surface (minimum 1.5m). Whichever season it is do not let any vegetation cut through the infrared beams. -
Page 8: Preparing And Mounting The Posts
User notice Primaprotect version 1.0 3.3 Preparing and mounting the posts > 30cm Concrete > 50cm Illustration 9 : Mounting the posts. Remove the four screws from the bottom of the posts and use the anchor bolts provided with the kit to mount them. Sealing the posts must be carried out carefully To obtain the best resistance of the posts, it is advised to mount the fastening bracket with an anchor bolt of at least 800x10 mm. -
Page 9: Matching And Aligning The Infrared Beams
User notice Primaprotect version 1.0 Plug the battery pack to the slave post as shown below. The LEDs of the two receiving cells light up. 3V Battery pack and connector Figure 11 : Plugging the batteries to the slave post. - Page 10 VERY IMPORTANT : 1h30mn after the batteries were plugged. This time is plenty enough for the installation of your Kit Primaprotect. Passing this delay the LEDs of the cells turn themselves off and you are no longer in “installation mode”.
-
Page 11: Utilisation
User notice Primaprotect version 1.0 Figure 13a : Horizontal orientation Figure 13b : Vertical orientation Figure 14 : Positioning the optical filter UTILISATION 4.1 Arming / Disarming the alarm system The system can be activated at any time with the magnetic key. Position the magnetic key against the reference mark «... -
Page 12: Shutting Off The Siren
User notice Primaprotect version 1.0 4.2 Shutting off the siren The siren is triggered in the two following cases: One of the beams has been crossed while the alarm system was armed. Presence of an obstacle for a period of time of 60 minutes when the alarm system is disarmed. - Page 13 User notice Primaprotect version 1.0 Correct Positioning Incorrect Positioning Switch Switch Switch Switch Master post N°1 Slave post N° 2 Slave post N° 3 Slave post N° 4 Installation of 4 segments of protection Factory configuration Installation of 3 segments of...
-
Page 15: Accessories (Provided In Option)
User notice Primaprotect version 1.0 ACCESSORIES (provided in option) The central unit of the Primaprotect alarm system can handle up to 16 radio accessories. Safety bracelet Remote Keypad with a digit Gate sensor security code 1 : Security clasp 5 : deactivation... -
Page 16: Sensor Bracelet
User notice Primaprotect version 1.0 In order to have the accessories recognised by the post, follow the procedure below and repeat it for each accessory: Maintain the magnetic key against the reference « Mode » (see illustration 2), the red LED lights up continuously. -
Page 17: Remote
The remote enables you to arm and temporary disarm the alarm system from a distance The alarm system Primaprotect can operate with the remote as soon as the recognition procedure has been carried out (§ 6.1). However the system can always be used with the... -
Page 18: Failures
User notice Primaprotect version 1.0 The alarm system can be activated at any time by pressing the button 3 (see illustration 15) of the remote. The activation of the system is only possible if there is no obstacle in the alignment of one of the infrared beams. -
Page 19: Weak Battery Indicator Of The Posts
If the system continues to emit beeps, it means that another accessory has a weak battery. In that case, repeat the identification procedure. MAINTENANCE It is advised to regularly test the proper operation of the Primaprotect alarm system. Regularly clean the panes of the posts (Warning ! Do not use abrasive products). -
Page 20: Changing The Batteries Of The Safety Bracelet
User notice Primaprotect version 1.0 The spare parts must be originals or in conformity with the specifications of the NF P 90 307 standard. 8.1 Changing the batteries of the safety bracelet The battery of the sensor bracelet lasts 2 years. If the indicator announces « weak battery bracelet »... -
Page 21: Cleaning The Panes
User notice Primaprotect version 1.0 8.3 Cleaning the panes For an optimum operation of the system, it is advised to clean the panes of the posts when they ‘re dirty in order not to block the infra-red beam. Take off the panes as follows : Illustration 23 : Dismounting the panes Do not wash the post with a large amount of water or a hose. -
Page 22: Guarantee, Responsibility
FIRSTINNOV, along with the copy of your invoice. The products provided with the Kit Primaprotect (Batteries not included) are guaranteed for two years from the purchase date. If during the guarantee, a product is defective because of a manufacturing defect, FIRSTINNOV will fix or replace (at the appreciation of FIRSTINNOV) the device or its defective parts according to the conditions specified herein. - Page 23 The sale by the initial purchaser of the Primaprotect to a third person will cause the loss of the guarantee for the new owner. We will consider that the new owner has accepted this condition.
-
Page 24: Safety Notice
11 Safety notice It is preferable to let a professional, trained on the Primaprotect product, handle the installation. The siren must be heard from any location of your home. Depending on the distance between your residence and your pool it might be necessary to add remote sirens in order to be heard from any location of your residence. - Page 25 User notice Primaprotect version 1.0 WATCH AND ACT: The children monitoring must be close and constant around the pool. Designate only one person responsible for the safety around the pool. Reinforce your surveillance when there are several users in the pool.
-
Page 26: Technical Characteristics
The sticker with the pictogram reminding the adults of their duty to monitor young children and that announces the electronic monitoring of the pool must remain stuck on the central unit by the pool. Regularly carry out the crossing tests of your Primaprotect alarm system. 12 Technical characteristics Height of the beam :... -
Page 27: Waste Collection For Electronic Equipments And Batteries
User notice Primaprotect version 1.0 13 WASTE COLLECTION FOR ELECTRONIC EQUIPMENTS AND BATTERIES WARNING While replacing the batteries do not touch the printed circuit. Any damage to the printed circuit will not be covered by FIRSTINNOV’s guarantee. This product is labelled with the symbol indicating separate waste collection for electrical... - Page 28 User notice Primaprotect version 1.0 Firstinnov' 5, rue du Chant des Oiseaux 78360 Montesson France Email : dsp10@firstinnov.com Phone : 08 92 259 220 (0,41 € TTC/minute) (1) Facturation selon les conditions tarifaires de l’OBL de l’appelant – tarifs applicables en...
