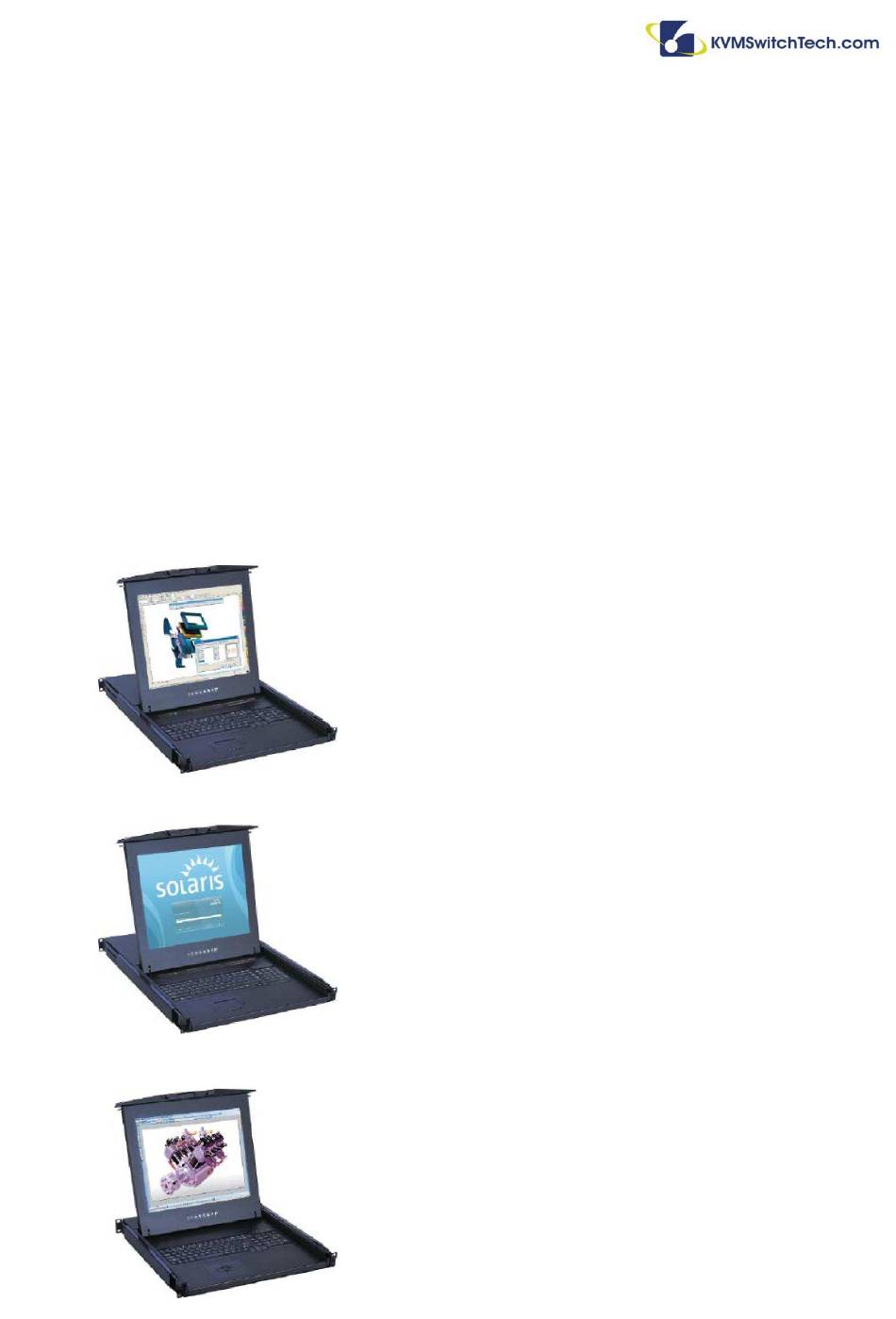

- Page 1 User Manual 1U LCD Keyboard Drawer 17", 19" screen size Models RKD-KVM-17 / 19 Series - With KVM options Models RKD-SKVM-17 / 19 - With KVM options - 1U 17", 19" screen size - Designed for SUN Solaris Models RKD-KVMSD-17 / 19 Series - Short depth version - Without KVM options...
-
Page 2: Table Of Contents
Contents Chapter 1 Getting Started Important Safeguards ............1 Regulatory Notice ..............2 Package Contents ..............3 Before Installation .............. 4 Unpacking ................4 Optional Accessories ............. 4 Peripheral Products ............... 5 Structure Diagram ..............5 How to Install “One Man” Installation Slides ...... 6-7 1.10 How to Use The Slides ............ - Page 3 Contents Chapter 4 Optional Specification KVM Options ................ 19 DVI-D Option ................ 19 BNC + S-Video Option ............19 Audio Option ................. 20 DC power Options ..............20 Touchscreen Options ............21 Chapter 5 Troubleshooting ........Chapter 6 Dimensions ..........
-
Page 4: Important Safeguards
Chapter 1 1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover Any product, on which the serial number has been defaced, modi ed or removed. -
Page 5: Regulatory Notice
Chapter 1 1.2 Regulatory Notice Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 6: Package Contents
Chapter 1 1.3 Package Contents... -
Page 7: Before Installation
Chapter 1 1.4 Before Installation It is very important to locate the LCD Keyboard Drawer in a suitable environment. The surface for placing and xing the LCD Keyboard Drawer should be stable and level or mounted into a un-bo suitable cabinet. Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. -
Page 8: Peripheral Products
Chapter 1 1.7 Peripheral Products Item Description Matrix Cat6 16 port KVM Matrix IP Cat6 16 port KVM Matrix Cat6 KVM Matrix Cat6 32 port KVM Matrix IP Cat6 32 port KVM Matrix DB-15 8 port KVM Matrix IP DB-15 8 port KVM Matrix DB-15 KVM Matrix DB-15 16 port KVM Matrix IP DB-15 16 port KVM... -
Page 9: How To Install "One Man" Installation Slides
Chapter 1 1.9 How to Install "One Man" Installation Slides Install into rack... - Page 10 Chapter 1 1.9 How to Install "One Man" Installation Slides Remarks : NBK-01 is for RKD-KVM-17 / 19 & RKD-SKVM-17 / 19 series only. NBK-02 is for RKD-KVMSD-17 / 19 series only. Installation procedures of NBK-02 are same to that of NBK-01.
-
Page 11: How To Use The Slides
Chapter 1 1.10 How to Use the Slides... -
Page 12: How To Use "Rkd" Series Lcd Keyboard Drawer
Chapter 1 1.11 How to Use "RKD" Series LCD Keyboard Drawer... -
Page 13: S" Series (Single Console)
Chapter 1 1.12 “S” Series (Single console) - Use KVMCB-6 to connect to server via USB interface Figure 7. Example of connecting KVMCB-6 2-in-1 USB KVM cable to server via USB interface 1.13 “S” Series (Single console) - Use KVMCB-6 to connect to KVM via USB interface Figure 8. -
Page 14: Rkd Series (Single Console)
Chapter 1 1.14 RKD Series (Single console) - Use KVMCE-6 to connect to server via PS/2 interface Figure 9. Example of connecting KVMCE-6 4-in-1 Combo KVM cable to server via PS/2 interface 1.15 RKD Series (Single console) - Use KVMCE-6 to connect to KVM via PS/2 interface Figure 10. -
Page 15: Rkd Series (Single Console) - Use Kvmce-6 To Connect To Kvm Via Usb Interface
Chapter 1 1.16 RKD Series (Single console) - Use KVMCE-6 to connect to server via USB interface Figure 11. Example of connecting KVMCE-6 4-in-1 Combo KVM cable to server via USB interface 1.17 RKD Series (Single console) - Use KVMCE-6 to connect to KVM via USB interface Figure 12. -
Page 16: On-Screen Display Operation
Chapter 2 2.1 On-screen Display Operation P.13... -
Page 17: On-Screen Menu
Chapter 2 2.2 On-screen Menu P.14... -
Page 18: Specifications
Chapter 3 3.1 Specifications Note: RKD-KVM-17 / RKD-SKVM-17 series in single console, with Combo Cat6 KVM or Combo DB-15 KVM integration is UL approved... -
Page 19: Keyboard & Mouse
Chapter 3 3.2 Keyboard & Mouse For RKD-KVM-17 / 19 & short depth series P.16... - Page 20 Chapter 3 3.2 Keyboard & Mouse For RKD-SKVM-17 / 19 series P.17...
-
Page 21: How To Use "Ns" Keyboard
Chapter 3 3.3 How to Use "NS" keyboard NS SUN-compatible keyboard incorporates SUN short-cut keys. P.18... -
Page 22: Kvm Options
Chapter 4 4.1 KVM Options Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions: For KVM operation, please refer to KVM user manual Option with Multiple consoles Matrix KVM Option with high density & cost eff cient Combo KVM integration with either 8 / 16 / 32 ports Option with low cost PS/2 KVM Please ask your supplier for full KVM details... -
Page 23: Audio Option
Chapter 4 4.4 Audio Option Remarks : Package does not include 1 x power cord and 1 x AC power adapter The depth of RKD-KVMSD-17 will be extended from 480mm ( 18.9" ) to 530mm ( 20.9" ) P.20... -
Page 24: Touchscreen Options
Chapter 4 4.6 Touchscreen Options e-Resistive Model -17TRB / -17TRS -19TRB / -19TRS Screen size 17" 19" Interface USB / serial Optical transmittance 80% ± 3% Surface hardness ≥3H (JIS K5400) Operating system Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux e-Capacitive Model -17TCB / -17TCS... -
Page 25: Chapter 5 Troubleshooting
Chapter 5 5.1 Troubleshooting For RKD series P.22... -
Page 26: Chapter 6 Dimensions
Chapter 6 6.1 Dimensions Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 442 x 650 x 44 mm 589 x 856 x 168 mm 15 kg 21 kg RKD-KVM-17 17.4 x 25.6 x 1.73" 23.2 x 33.7 x 6.6"... - Page 28 The company reserves the right to modify product Specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2010 AHS Ltd. All rights reserved. CV-RKD1-1010V9...
