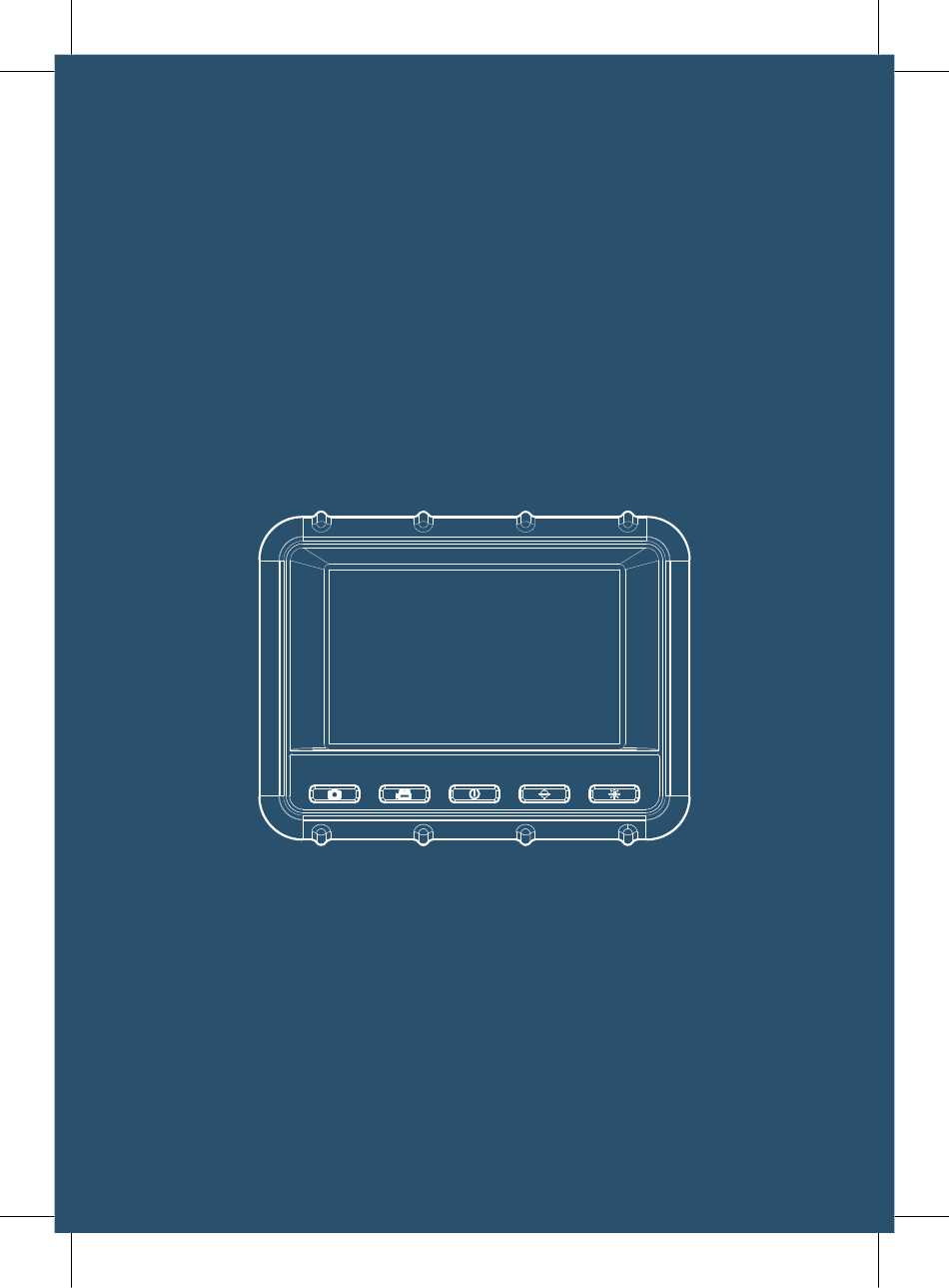

X500
VIDEOSCOPE SYSTEM
User Manual
©2015 Medical Intubation Technology Corporation (Mitcorp).
All rights reserved. Design and specifications are subject to change without prior notice. Actual product and accessories
may differ from illustrations. Errors and omissions excepted. Reproduction in any manner without written permission of
Mitcorp is strictly forbidden.
Advertisement
Summary of Contents for Mitcorp X500
- Page 1 VIDEOSCOPE SYSTEM User Manual ©2015 Medical Intubation Technology Corporation (Mitcorp). All rights reserved. Design and specifications are subject to change without prior notice. Actual product and accessories may differ from illustrations. Errors and omissions excepted. Reproduction in any manner without written permission of...
-
Page 3: Table Of Contents
Table Of Contents Product Outlook..................4 Getting Started With Touch Panel...........9 Function Keys..................16 Maintenance.................17 WEEE Notice & FCC Notice............18 R o H S N o t i c e & C h e m i c a l C o m p a t i b i l i t y ......1 9 Legal and Other Notices &... -
Page 4: Product Outlook
Product Outlook X500 FRONT VIEW Decrease Record brightness Increase brightness Snap Power button SIDE VIEW SD card slot Charging socket AV out... - Page 5 BACK VIEW Threaded hole for tripod mount TOP VIEW Insert tube connector...
- Page 6 360 ARTICULATION TUBE FRONT VIEW Joystick Increase Brightness Decrease Brightness SIDE VIEW Snap/Freeze...
- Page 7 Frequent operations Generally, use your thumb to control the joystick, and use other fingers to grip the handle. The joystick operations Capture images • Press to capture desired image. • Hold to keep freezing the frame. Adjust brightness • Press increase brightness •...
- Page 8 TWO WAYS ARTICULATION TUBE FRONT VIEW CONNECTOR SEALING NUT Articulation Control Wheel Wheel Lock Snap Increase / Decrease Camera Head Brightness Button Lock Protection Cap Protective Ring Fitting Ring Probe Neck...
-
Page 9: Getting Started With Touch Panel
Getting Started With Touch Panel When system turns on (with insert tube connected ), it’s ready to start the inspection. Time stamp Battery capacity Snapshot Enlargement Video Recording Mirror Rotation Particle Free Menu Preview Brightness adjustment Touch this arrow to view Full Screen Video Recording Time stamp... - Page 10 Function Menu Menu Submenu CLARITY : To enhance image edge DISPLAY GRID: To measure the size of sophisticated object, m/ft switchable White Balance - DEFAULT Menu Submenu...
- Page 11 White Balance - CUSTOM Menu Submenu Hue adjustment SD Card Status Menu Submenu...
- Page 12 Settings Menu Menu Submenu LANGUAGE set up operation language SYSTEM TIME set up system time FORMAT display form at yy/mm/dd, dd/mm/yy, mm/dd/yy TIMESTAMP set up time stamp AUTO POWER OFF set up system off time : OFF/5/10/20/30(minutes) REPEAT RECORDING set up record restart time : OFF /5/10/20/30(minutes)
- Page 13 USB Menu Menu Submenu Reader: Connect PC to read the data stored in the SD card Camera: Connect PC to share real-time inspection status AV Output Menu Menu Submenu Connect the X500 system to TV ( NTSC or PAL )
- Page 14 Browse photo/Video - PHOTO File saved time In chronological order Previous file Next file Album display Delete file Back Image enlargement : You can move the image to view picture details in green box - VIDEO File saved time In chronological order Previous file Next file Album display...
- Page 15 Video Play Play/Pause You can drag the green dot backward/forward, but Can’t slide in this area not in red area(last 5 seconds) Album play Previous file Next file Single pic display Delete file Back Video file To view certain file, check and click; to delete files, check and put them in the trash can...
-
Page 16: Function Keys
Function Keys Functions Button Touch Screen icon Note Snapshot Take picture Recording Video record To enter preview mode and check Preview Power button photo/video files Touch screen and slide the light Brightness LEFT/RIGHT Slide light bars bars to adjust Image Mirror Horizontal flip Image Rotaion 90°... -
Page 17: Maintenance
Press and hold both simultaneously to power on and the system will start updating procedure automatically. • When firmware update is done, the X500 videoscope system will power off automatically. ** Please always have insert tube connected when you update the firmware**... -
Page 18: Weee Notice & Fcc Notice
WEEE Notice • The cross-out wheeled bin symbol indicates that according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, this product must be collected in a separated way instead of being disposed of as unsorted municipal waste. •... - Page 19 Restriction of Hazardous Substances (RoHS) directive. This means that our product is both lead-free and without the hazardous substances either in the manufacturing process or in the final product. Chemical Compatibility All insertion tubes made by Mitcorp had passed following liquid immersion test: • Water •...
-
Page 20: Legal And Other Notices & Cautions For Use
This Mitcorp product is warranted to be free from defects in material and workman shop for 1 year from the date of purchase. Mitcorp agrees to repair or replace the product, at its own option and at no charge. This warranty... -
Page 21: S P E C I F I C A T I O N
Specifications X500 Features Description Dimensions 160mm x 120mm x 55mm Weight 745g Display 5" TFT LCD (VGA), 800x480 resolution Rechargeable Li battery Power Power consumption DC 5V 3A Waterproof Can be operated in rain Video out NTSC & PAL / AV OUT... - Page 22 2 WAYS ARTICULATION TUBE Features Description Probe head diameter 6.0mm Tube length 2m / 3m Articulation angle >120° Articulations 2 ways Front / Side Button Snapshot /LED + / LED - Button lock Lock up button functions Water proof Can be used under water (tube only) Working temperature 0°~ 60 ℃...
- Page 24 VER.1...
