Summary of Contents for Parweld XTS-904

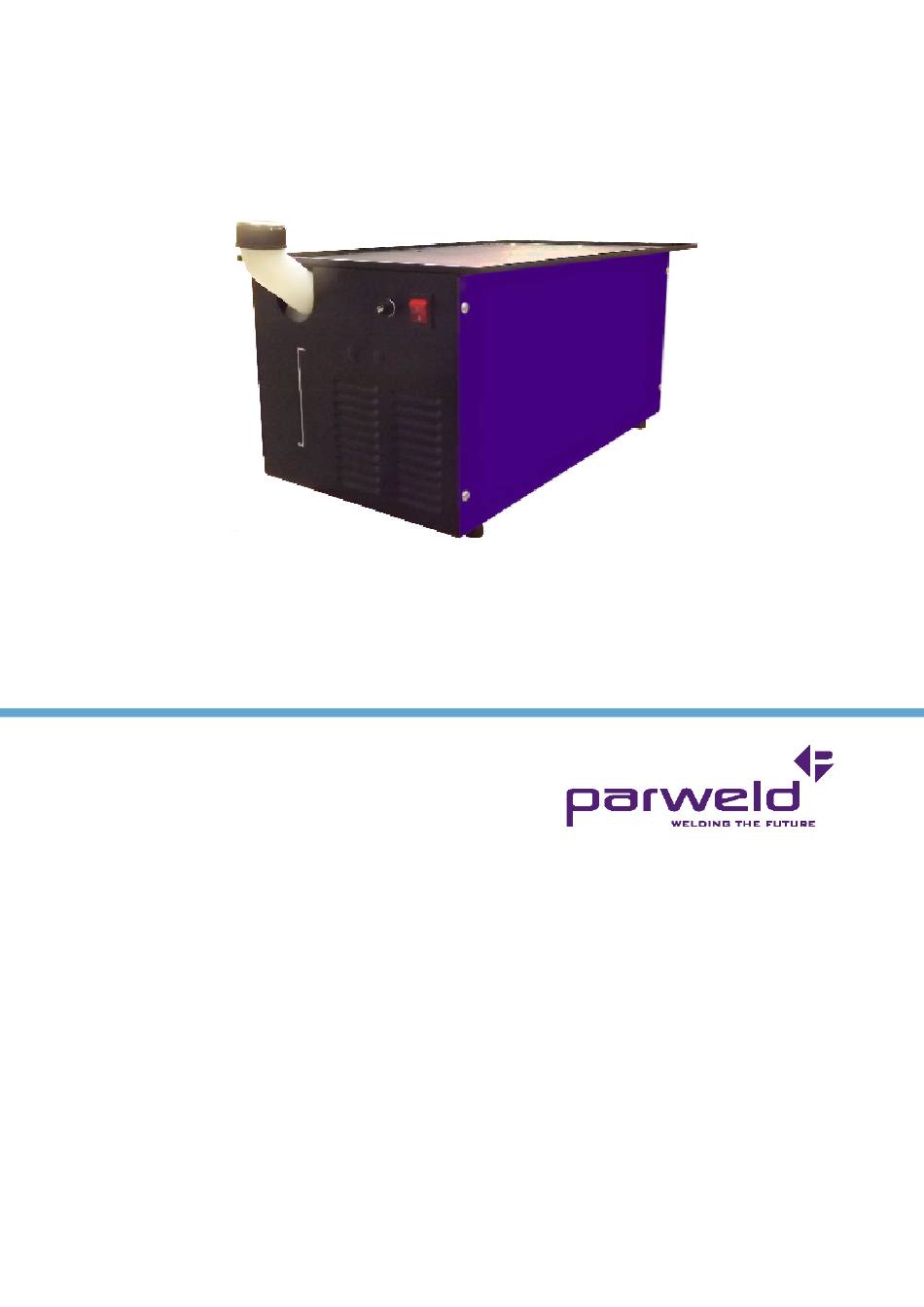

- Page 1 XTS-904 XTS-905 OperatOr Manual ISSue 1...
- Page 2 Thank you and congratulations on choosing Parweld. This Owner’s Manual is designed to help you get the most out of your Parweld product. Please take time to read the Safety precautions. They will help you protect yourself against potential hazards in the workplace. With proper maintenance this equipment should provide years of reliable service.
-
Page 3: Table Of Contents
Contents page 1.0 Safety precautions 2.0 product Description 3.0 Technical Specifications 4.0 Description of Controls 5.0 Installation 5.1 Unpacking the Machine 5.2 Location 5.3 Input and grounding connection 5.4 Output Connections 5.5 Coolant filing 6.0 Flow switch 7.0 Operation 8.0 Fault Finding 9.0 parts and accessories 9.1 Accessories 9.2 Spare parts... -
Page 4: Safety Precautions
Be alert that welding sparks and hot materials from welding can easily go through small cracks and openings to adjacent areas. Watch for fire, and keep a fire extinguisher nearby. Be aware that welding on a ceiling, floor, bulkhead, or partition can cause fire on www.parweld.com... -
Page 5: Product Description
Specifications BuIlD up OF GaS can injure or kill. Shut off shielding gas supply when not in use. Always ventilate Machine Model confined spaces or use approved air-supplied respirator. XTS-904 XTS-905 19.5 19.5 Weight empty (kg) HOt partS can cause severe burns. -
Page 6: Description Of Controls
Manual should install and operate this equipment. • Machine must be grounded per any national, local or other applicable electrical regulations. • The power switch is to be in the OFF position when installing work cable and electrode cable and when connecting other equipment. www.parweld.com... -
Page 7: Input And Grounding Connection
5.5 Coolant filling Remove the filler cap (3) and fill the unit with Parweld UltraCool until the Max mark is reached in the sight glass. Secure the filler cap before starting the unit. There is not need to prime the pump... -
Page 8: Operation
Have a service engineer check the operation of the flow switch. 8.1 rOutIne MaIntenanCe The only routine maintenance required for the water cooler is a thorough cleaning and inspection, with the frequency depending on www.parweld.com... -
Page 9: Parts And Accessories
9.0 parts and accessories 9.2 Spare parts 9.1 accessories Item Stock Code Description Item Description Stock Code XTSUC Parweld UltraCool coolant 10l Water Pump, 230V 764816 XTSH1 Hook up kit 1m 974236 XTSH3 Hook up kit 3m Heat Exchanger 709945... -
Page 10: Ec Declaration Of Conformity
10.0 eC declaration of conformity Hereby we declare that the machines as stated below Type: XTS-904, XTS-905 Conform to the EC Directives: 73/23/EEC and 89/336/EEC European standard: EN/IEC 60974-1 This is to certify that the tested sample is in conformity with all provisions of the above detailed EU directives and product standards. -
Page 11: Weee Statement
WEE compliance outside the UK please contact your supplier/Importer Parweld is registered with a compliance scheme Official registration number is WEE/FD0255QV When your equipment reaches the end of its service life you should return it to Parweld where it will be reconditioned or processed for recycling. - Page 12 Parweld Limited Bewdley Business Park Long Bank Bewdley Worcestershire England DY12 2TZ tel. +44 1299 266800 fax. +44 1299 266900 www.parweld.com info@parweld.co.uk...
