Rexnord Smart Condition Installation Manual

Rexnord Smart Condition Monitoring System • Installation Manual
(Page 1 of 12)

TABLE OF CONTENTS

1. Connecting AC Input Power and CAT 5 Data Cable
to the Smart Condition Monitoring System Edge ...........1
1.1 How to Attach the Supplied Ethernet
Connector to Cat 5 Cable .......................................2
1.2 How to Attach the AC Input Power Connector
to Power Cable ........................................................3
2. Connecting the Rexnord Supplied Current Transducer ....5
2.1 Connecting your Own 4-20mA Current Transducer ....6
2.2 Connecting your Own 0-5V dc Output
Current Transducer ..................................................8
3. Installing the Oil Quality Sensor .....................................9
4. Allowing the Edge device on your network
(Security Guidelines) .......................................................10
5. Setting up your PLC Interface ........................................10
Appendix A: Troubleshooting ............................................11
Appendix B: Enclosure Details .........................................11
Appendix C: FCC Statements ...........................................12
1. CONNECTING AC INPUT POWER AND
CAT 5 DATA CABLE TO THE SMART
CONDITION MONITORING SYSTEM EDGE
The Smart Condition Monitoring System Edge device must
be connected to AC power to operate. The input power
specifications include:
• Nominal voltage: 100V to 240V ac nominal 50-60Hz
• Maximum power: 120 Watts

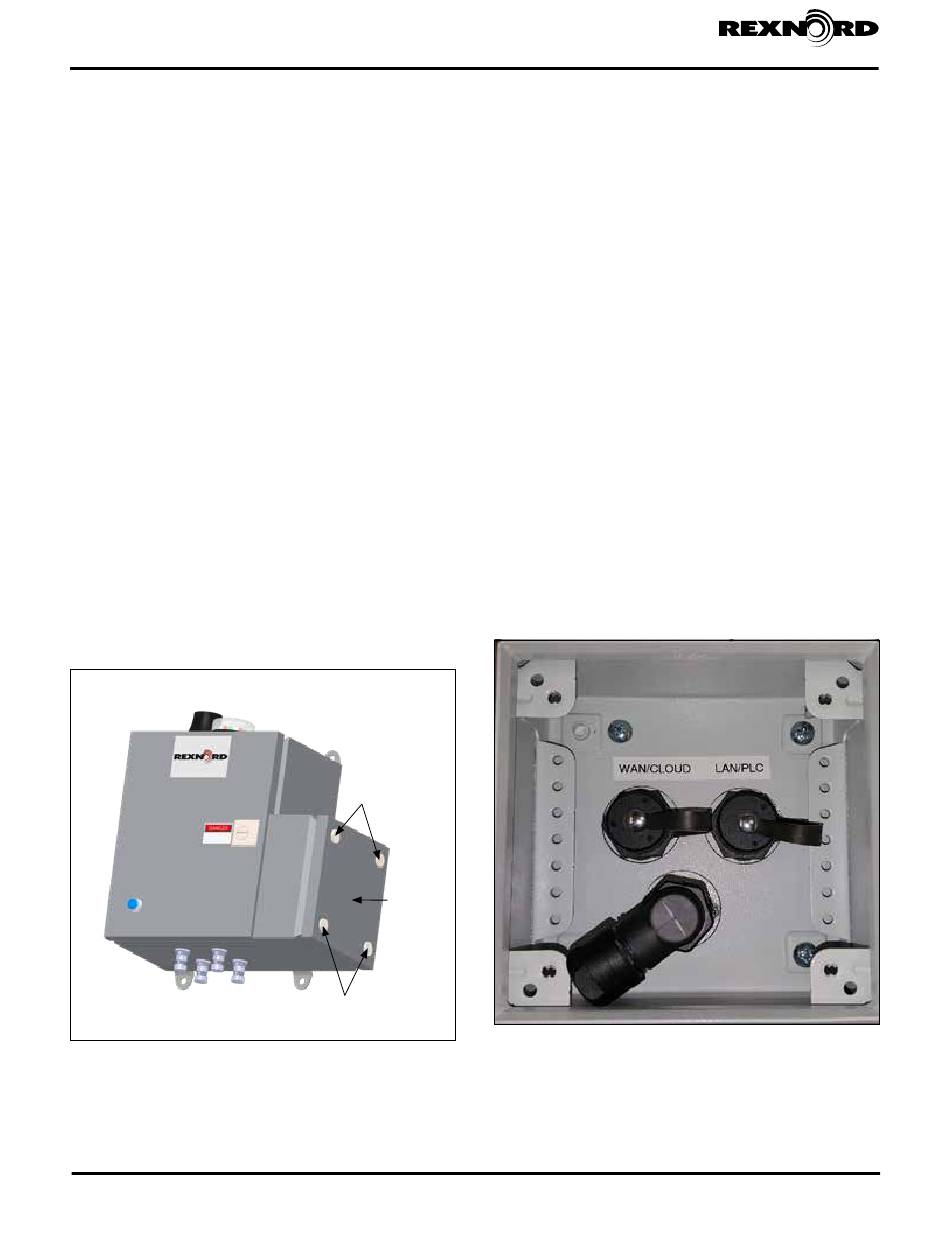

Figure 1 - Drawing of Smart Condition Monitoring
System Edge with option cellular antenna and
Andon light. M12 sensor connections (bottom),
interface box (right)
SS3-001
August 2019
Supersedes 5-19
Large Gear Drives
Cover Fasteners
Interface
Box
Cover Fasteners
NOTE: OPENING THE EDGE DEVICE ENCLOSURE
COVER, OR ANY OTHER INTRUSION INTO THE EDGE
DEVICE ENCLOSURE, VOIDS THE WARRANTY OF THE
EDGE DEVICE. ALL CONNECTIONS MUST BE MADE
USING THE INTERFACE BOX.
Remove the cover of the interface box by loosening the
4 cover fasteners shown in Figure 1. Using a knockout
punch, remove either a 1/2", 1", or 1-1/2" hole for AC power
metal conduit on the bottom (preferred) or top of the
interface box and securely tighten the conduit to the box.
CAT 5 data cable is used for connectivity from the
Smart Conditioning Monitoring System Edge device to
a PLC (LAN connection), as well as for the connection
to the internet (WAN connection). Alternatively, cellular
connectivity may be used for the WAN connection, with
specific versions of the Edge device equipped with a
cellular antenna. As above, remove a second hole for
the CAT 5 data cable(s) metal conduit on the bottom
(preferred) or top of the interface box and securely tighten
the conduit to the box. It is best practice to have the
data cables plugged in before power is turned on.
Locate the AC power plug assembly and the RJ-45
connectors that are provided in the interface box. The
power and data ports are shown in Figure 2. For correct
assembly of the connectors, refer to page 2 for the
data connectors and page 3 for the power connector.
Remove any excess slack that is remaining in the power or
data cables inside of the box and replace the cover.
Figure 2 - AC Power and Data Connections inside
interface box
