Summary of Contents for MEDIPIA Endoclean Series
- Page 1 AUTOMATIC AUTOMATIC ENDOSCOPE CLEANER ENDOSCOPE CLEANER ENDOCLEAN USER MANUAL Manufacturer : MEDIPIA Co., Ltd. Address: #101-1213, Ssangyong3, Bucheontechnopark, 36-1, Sanmjungdong, O-junggu, Bucheonsi, Kyunggido, Korea Tel: 82-2-3436-1693 | Fax: 82-2-3436-1694 MEDIPIA Co.,Ltd...
-
Page 2: Table Of Contents
CONTENTS 1. MEANING of SIGNS --------------------------------------------------------------- 3 2. SAFETY PRECAUTIONS ------------------------------------------------------------ 4 1) Power Supply Caution 2) Installation Caution 3) Cleaning Caution 4) Others Caution 3. PRODUCT DESCRIPTION ---------------------------------------------------------- 7 1) Product Name and Class 2) Appearance of Structure and Composition 4. -
Page 3: Meaning Of Signs
1. MEANING of SIGNS Prohibition Keep allowed No disassembly Be sure to disconnect the power plug from the outlet Don't touch Ground connection to avoid an electric shock... -
Page 4: Safety Precautions
2. SAFETY PRECAUTION 1) Power Supply When not use the appliance for a long time, always disconnect the power cord. Don’t connect the power plug when not using for a long time, including in thunder & lightning weather. ♧ an electric shock or fire may occur. Don't use a faulty power cord or plug, and a loose wall socket. -
Page 5: Cleaning Caution
! Don't install the cleaner in the highly saline air. ♧ It may quicken corrosion of the machine. ! Don't install the cleaner by near inflammables. ♧ Ex: Gasoline, Benzene. etc ! Don't install the cleaner in the place getting a heavy shock or vibration. ! Keep the connecting hose and water pipe warm to avoid winter-sowing, when using at sub-zero temperature. - Page 6 ♧ It may cause malfunction or injury. ! Pay careful attention to ventilation ! When not use the cleaner for a long time, keep it in the dry and clean room. ♧ It may cause malfunction or injury ! Don't use any component other than the original accessories. ♧...
-
Page 7: Product Description

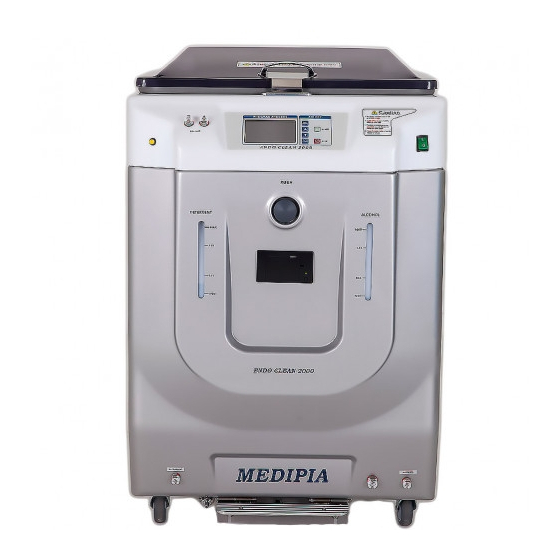

3. PRODUCT DESCRIPTION 1) Products Name and Class Products Name: Automatic Endoscope Cleaner (Model: Endoclean-2000) 2) Appearance and Structure and Composition A. Overview Put in water, disinfection solution and remove foreign substances inside & outside Endoscope by rotated. B. Composition This product consists of control part and main body. - Page 8 Chanel 1~6 Air Shower Vent Water Basin/ Inlet Drain Level Sensor Detergent Alcohol Rotary/Nozzle Disinfectant Inlet Air Shower ! Air Emit Button : After Leakage test, Push this button for 1~2 seconds. It make to pull out the air to be left air in the scope. (See Leakage test Process of page 16 ) ! Detergent : Detergent Tank.
- Page 9 ! Control Panel POGRAM PROCESS SELECT BACK AUTOMATIC (HOME) TANK LEVEL START MANUAL SERVICE ENTER STOP DETER (SAVE) DISINF ALCOHOL : Return to Main Program Screen : Up : Down : Choosing & Save : Process Start : Process Stop...
- Page 10 * AUTOMATIC MODE POGRAM PROCESS SELECT BACK AUTOMATIC (HOME) TANK LEVEL START MANUAL SERVICE ENTER STOP (SAVE) DETER DISINF ALCOHOL ENTER AUTOMATIC (SAVE) : Choosing Automatic Mode using UP or Down button and then Push Enter button POGRAM PROCESS AUTOMATIC SELECTION A-TYPE B-TYPE C-TYPE...
- Page 11 POGRAM PROCESS AUTO -A Time- 0 Hou 00 Min 00 Sec 000 sec 000 min WASH 1 DISINFECT 000 sec 000 sec DETERGENT AIR 2 000 sec 000 sec AIR 1 WASH 3 000 sec 000 sec WASH 2 AIR 3 000 sec 000 sec AIR SHOWER...
- Page 12 * MANUAL POGRAM PROCESS SELECT BACK AUTOMATIC (HOME) TANK LEVEL START MANUAL SERVICE ENTER STOP (SAVE) DETER DISINF ALCOHOL ENTER MANUAL (SAVE) : Choosing Manual Mode using UP or Down button and then Push Enter button POGRAM PROCESS MANUAL SELECTION LEAKAGE DISCHARGE WASH...
- Page 13 : Leakage test LEAKAGE : Washing WASH : Air blowing : Disinfection DISINFECT : Disinfectant Drain DISCHARGE : Disinfectant into the tank RETANK : Alcohol ALCOHOL : Water Drain DRAIN -13-...
- Page 14 * SERVICE POGRAM PROCESS SELECT BACK AUTOMATIC (HOME) TANK LEVEL START MANUAL SERVICE ENTER STOP (SAVE) DETER DISINF ALCOHOL SERVICE ENTER (SAVE) : Choosing Service Mode using UP or Down button and then Push Enter button POGRAM PROCESS SERVICE SELECTION TEMP DET- TIME Celsius...
- Page 15 : Year : Month : Date : Hour : Minute : Second : Temperature TEMP : Choose Celsius or Fahrenheit TEMP TYPE : Choose Printing O or Off PRINTING : Choose Disinfection Using Expiration Count or Days DIS ALRAM : Set Count No. or Day No. COUNT : Choose Detergent Method General or Dipping(Deposit) DET TYPE...
- Page 16 Leakage Test Process Leakage Test Process Put the testing SCOPE inside of Basin. Remove ETO cap and Connect Leakage Tube with adapter. Olympus Pentax Connector Connector Set LEAKAGE and Push START button. Leakage testing water come into Basin from Leakage water Inlet until SCOPE is sunk under water.
-
Page 17: Preparation Before Use
4. PREPARATION BEFORE USE Exchange period of disinfection should be indicated write on the product. ♧ Suitable amount of disinfection is 12 . If the amount is over or low the suitable level this product may not operate properly. <Period of used time: indicated write on the bottle of disinfection solution>... - Page 18 ☞ Caution In using underground water or unidentified water instead of running water, water have to through certified filter for cleaning. ! DRAIN: CONNECT TO DRAIN HOSE IN ENDOSCOPE WASHER ! WATER IN: CONNECT TO WATER IN HOSE IN ENDOSCOPE WASHER ! AC 230V: POWER IN PUT CONNECT TO POWER CORD Drain Water IN...
-
Page 19: Specification
6. SPECIFICATION 1) Weight: 90 2) Rated voltage: 220~240VAC 3) Rated frequency: 50/60Hz 4) Max Consumption power: 200W ±10% 5) Electric Shock Protection Type: Class II and B-type 6) Main body: 630mm!700mm!980mm (W!D!H) -19-... -
Page 20: Service Information & Others
7. SERVICE INFORMATION & OTHERS We appreciate your full support and purchase on our MDIPIA Cleaner. We will humbly admit customer's opinion, and manufacture better cleaner for customer satisfaction. We intend to consider again in a customer position and always make efforts to give the best service based on solid technology, warm humaneness, and perfect customer system.
Need help?
Do you have a question about the Endoclean Series and is the answer not in the manual?
Questions and answers
Вопрос. Куда подключать пневматический пистолет у автоматической мойки Endoclean 2000
The pneumatic gun (Air Gun) is part of the main body of the MEDIPIA Endoclean 2000 automatic washer. It is connected as one of the components listed in the appearance and structure section of the device. However, the exact connection point for the pneumatic gun is not specified in the provided information.
This answer is automatically generated
Как пользоваться, для чего предназначен Пневматический пистолет в Medinova ENDO CLEAN 2000.
The pneumatic gun (referred to as "Air Gun") in the Medipia Endoclean Series is used to blow air on the outside of the endoscope to remove water. Its purpose is to assist in drying the endoscope exterior after cleaning. The context does not provide specific steps for operating the air gun.
This answer is automatically generated
