WHEN BACK OF TELEVISION LOOKS SOMETHING LIKE THIS:
IT IS NECESSARY TO PURCHASE THE DAC-202 TO MAKE YOUR TV

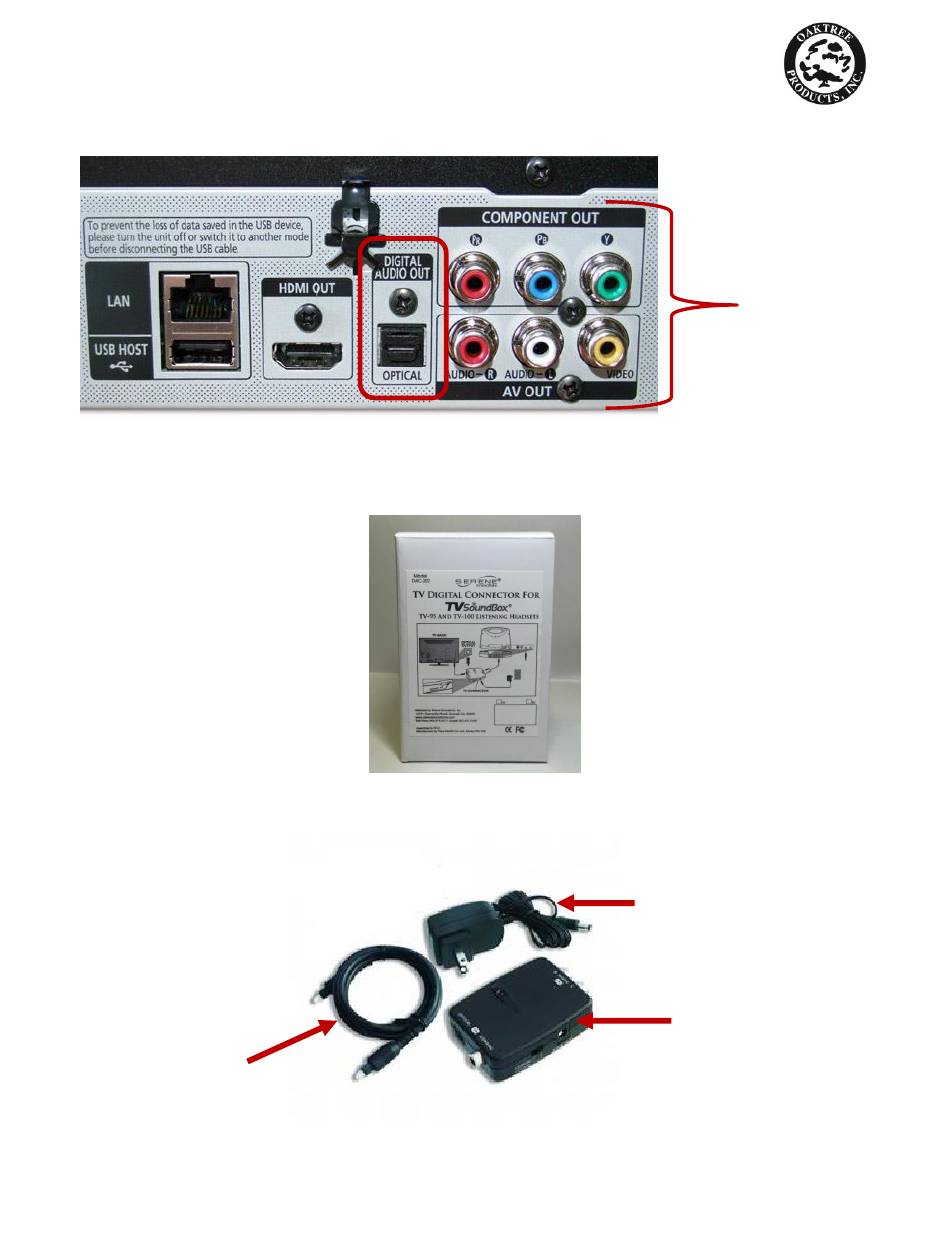

The DAC-202 COMES WITH THE FOLLOWING COMPONENTS:
Digital Optical Cord*
*remove plastic tip covers from optical cord plugs
LISTENING SYSTEM WORK
Oaktree Products, Inc
800.347.1960
otp@oaktreeproducts.com
TV missing
traditional red,
white and yellow
RCA cable
connections
labeled AUDIO OUT
(note: AV OUT is NOT
same as AUDIO OUT)
AC Adapter
TV Digital Connector
Advertisement
Table of Contents
Summary of Contents for Serene DAC-202
- Page 1 RCA cable connections labeled AUDIO OUT (note: AV OUT is NOT same as AUDIO OUT) IT IS NECESSARY TO PURCHASE THE DAC-202 TO MAKE YOUR TV LISTENING SYSTEM WORK The DAC-202 COMES WITH THE FOLLOWING COMPONENTS: AC Adapter TV Digital Connector...
- Page 2 SETTING UP TV LISTENING DEVICE TO TV USING DAC-202 Note: Illustrations are approximations of set up as each TV Listening system will have similar components that may vary slightly Turn off all related audio and video devices before installation. Reactivate those devices only after all connections are complete.
- Page 3 4. Connect RCA ends of audio cable from above (packaged with TV Listening system) to the AUDIO R-L output on the back of the DAC-202, making sure red plug connects to red port, and white plug connects to white port CONNECTING DAC-202 TO YOUR TV: 5.
- Page 4 7. Connect one end of the Digital Optical Cord (packaged with the DAC-202) in the black U-shaped optical cable port (not the coaxial port with protruding silver one) located on the other end of the DAC-202 Other end plugs into OPTICAL cable port in back of TV 8.
