Orlit Rovelight RT-400 Manual

Monolight
Hide thumbs
Table of Contents

Advertisement

Quick Links

Rovelight RT 400 TTL
MONOLIGHT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rovelight RT-400 and is the answer not in the manual?

Questions and answers

Related Manuals for Orlit Rovelight RT-400

Summary of Contents for Orlit Rovelight RT-400

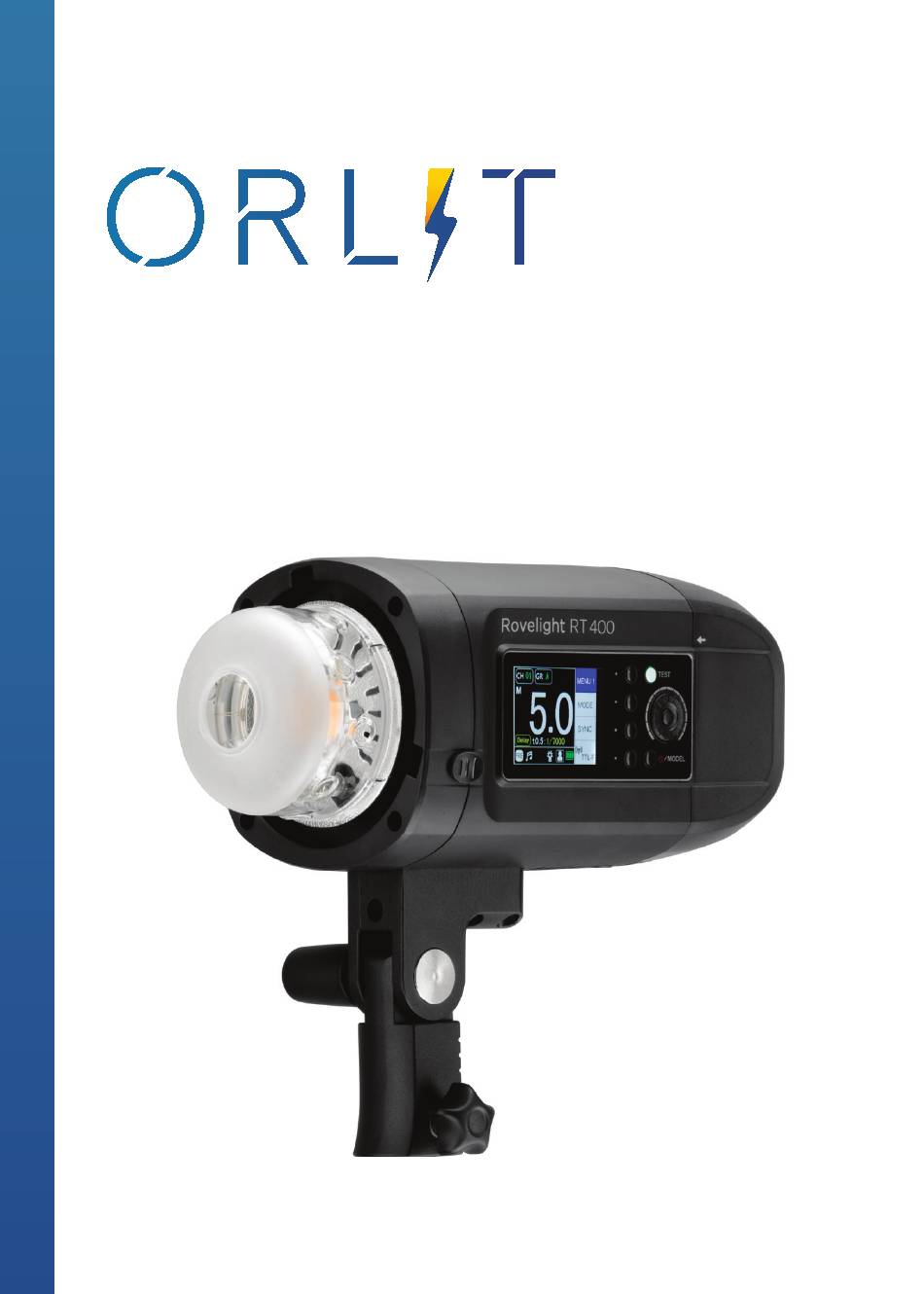

  • Page 1 Rovelight RT 400 TTL MONOLIGHT...

  • Page 2: Safety Notes

    Thank You for Purchasing the ORLIT Rovelight RT-400 Please read all the information contained in this user’s guide carefully, keep it in a safe place and pass it to other users if necessary. • Please do not put the RT-400 in an environment where flammable liquid is likely to come into contact with this product.

  • Page 3: Table Of Contents

    Content Safety notes ....................1 Overview ....................3 Quick menu ..................... 6 Operation ....................7 Power on/off ................... 7 TTL mode ....................7 M mode ..................... 8 Note ......................9 Battery maintenance ................. 10 Warranty ....................11 Specifications ..................12...
  • Page 5 Glass flash tube protector Light head tilt lock Accessories release button Function set button Light stand lock Test button Battery release button Power output dial LED indicator button Select button Battery LED indicator Power switch Umbrella socket / Modeling lamp button Group: A/B/C/D/E/F/G/H/I/J Sync mode Normal/HSS/Freeze...
  • Page 6 Menu--Menu 1--Menu 5 Function icon--Mode(Menu1)/CH(Menu2)/Audio Beep (Menu3) / EasyCap(Menu4)/ “Z” Flash Master mode (Menu5) Function icon--SYNC(Menul)/GR(Menu2)/ (Menu3) EasyCap: All 2-6(Menu4)/Delay(Menu5) Function icon--TTL-C, TTL-N, TTL-S, TTL-F, CH/GR, TRS-V, OFF (Menul) ID(Menu2)/Modeling Lamp: PRO, 1-9, OFF (Menu3) / EasyCap: No, I —6 (Menu4)/Delay: 00.00-30.00(Menu5) Battery-100% / 75% / 50% / 25% Modeling lamp Battery groove Battery guidepost...

  • Page 7: Quick Menu

    TTL-S: Sony remote control (TR-Q6S ) TTL-F: Fujifilm remote control (TR-Q6F) CH/GR: Orlit CH&GR remote control (TR-A6II C/ TR-A6II N /TR-V6 ) TRS-V: Orlit TRS-V remote control (TRS-V) ––Channelcan be chosen between 00-15 GR--Group can be chosen between A/B/C/D/E/F/G/H/I/J ID–– CanonRT radio “ID”numbers can be set between 00-99/AU. Flash and Canon speedlites can be synchronized when CH&ID numbers are...

  • Page 8: Operation

    Using the Rovelight RT400 TTL The Rovelight RT-400 can be operated in two modes to satisfy photographers’ different demands. Power on/off Switch on: Press power switch button [12] for 1.5 second until LCD screen lights up and enters the operation interface.

  • Page 9: M Mode

    . Press Function button [ 8 ] and switch to MENU2 to set up CH and GR. CH and GR numbers should be the same as the Orlit trigger. Press Function button [ 8 ] and switch to MENU3.

  • Page 10: Note

    Orlit TTL trigger. When CH/GR is selected in wireless remote control on screen, RT-400 is set to be triggered or controlled by a TR-V6 by Orlit. In this mode, GR does not appear on the RT-400. Set the TR-V6 in the same channel on the RT-400.

  • Page 11: Battery Maintenance

    When outdoor flash usage time shorter than normal, kindly replace with a new battery. Batteries most be Orlit original battery. Environment temperature effects the useful life and recharge of the battery.
  • Page 12 Battery capacity Up to 400 times at full power Battery life 300 charge cycle (to 80% capacity left) Operating room temperature 0-40º C / 32-104º F Orlit products develop continuously,technical data and product information are subject to change without notice...
  • Page 13 More ORLIT Products TTL Flash Extraordinaire with Rovelight RT Rovelight RT 600AC RoveLight RT 601 TR-V6 2.4GHz Wireless Transmitter Rover RT Rovelight RT 800AC ST-RT Wireless Transmitter RT600-C Speedlite TR-Q6 RT Studio Flash Trigger Rovelight RT 610...
  • Page 14 The Orlit RT Radio – Important Information The Orlit RT Radio system has two radio modes: RT and RF. Let’s understand why: Canon created the 600EX-RT flash, which uses its RT radio system. The RT radio system was designed for controlling Canon SPEEDLIGHTS only.

  • Page 15: Warranty

    Orlit’s entire liability and your exclusive remedy for any breach of warranty shall be, at Orlit’s option, to repair or replace the hardware, provided that the hardware is returned to the point of purchase or such other place as Orlit may direct with a copy of the sales receipt or dated itemized receipt.
  • Page 16 ORLFRL400RTB For assistance, you can always email Brands@Adorama.com...
