DEGREE CONTROLS ROOSTER PRESSURE 100 User Manual

Room monitor, high performance air pressure sensor with full-color touch screen display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

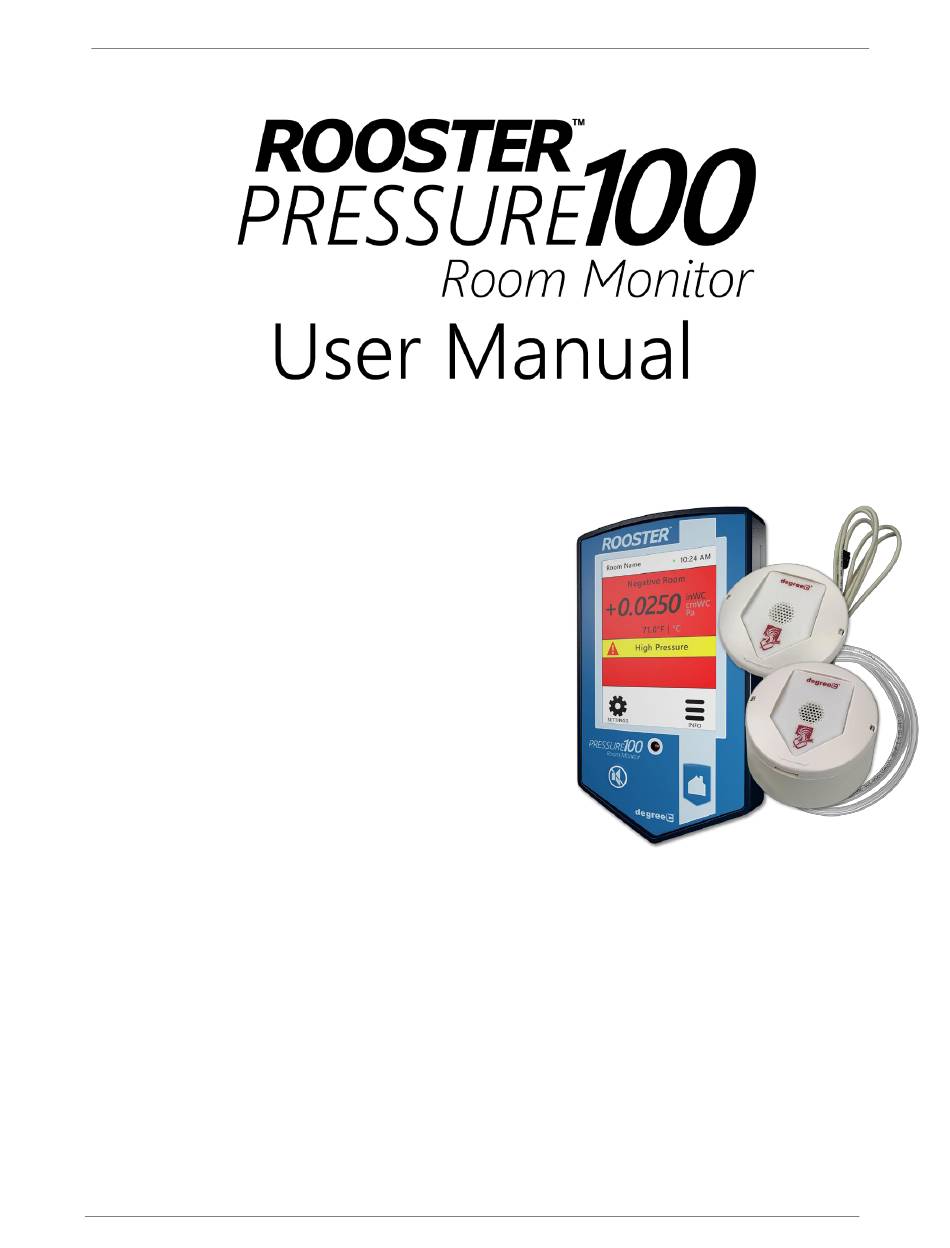

Rooster™ Pressure100 USER MANUAL 62314MN000-A00
High Performance Air Pressure
Sensor
with Full-Color Touch Screen Display
Version 1.01
Complete Kit includes:
o Sensor Display Module
o Pressure Sensor
o Power Supply (optional)
o Door Switch (optional)
This is proprietary information of Degree Controls Inc., contents are protected under US copyright laws ©
Degree Controls, Inc. 2020.
1 of 30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROOSTER PRESSURE 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DEGREE CONTROLS ROOSTER PRESSURE 100

Summary of Contents for DEGREE CONTROLS ROOSTER PRESSURE 100

  • Page 1 Complete Kit includes: o Sensor Display Module o Pressure Sensor o Power Supply (optional) o Door Switch (optional) This is proprietary information of Degree Controls Inc., contents are protected under US copyright laws © Degree Controls, Inc. 2020. 1 of 30...

  • Page 2: Table Of Contents

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 Contents Product Overview ..............................4 Contents ..................................4 Hard Button Overview ............................... 5 Soft Buttons and Home Screen Layout ........................6 Rear Panel Layout for Advanced Connections ......................9 Technical Specifications ............................10 Connection and Wiring Information ........................10 Door Switch Input ..............................
  • Page 3 Rooster™ Pressure100 USER MANUAL 62314MN000-A00 I/O Polarity ................................26 Data Logging ................................ 26 Troubleshooting ..............................27 Alarm Troubleshooting ............................27 General Troubleshooting ............................27 USB Field Upgrade Procedure ..........................28 Factory Reset Procedure ............................28 GUI Map ................................29 Warranty ................................30 3 of 30...

  • Page 4: Product Overview

    Degree Controls Inc. designed the Rooster Pressure100 to meet the demand for high performance room pressure sensing applications with an intuitive, glove-friendly, color touchscreen interface and best-in-class pressure and humidity sensing module.

  • Page 5: Hard Button Overview

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 Base Cover Figure 2 Pressure Module, Cover Removed Cover Base Figure 3 External Face Plate with Removable Cover Hard Button Overview MUTE Mutes the audible alarm, any time it is sounding. When the alarm has been muted, a mute icon [ ] will appear in the top center portion of the home screen.

  • Page 6: Soft Buttons And Home Screen Layout

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 Soft Buttons and Home Screen Layout Unoccupied Room/Mute Indicator Data Logging Indicator (Green Dot) Room Name Time of Day Pressure Mode Status Color (Green, Yellow or Red) Air Pressure (touch to toggle units) Alert Banner % Relative Humidity Air Temperature Quick access to current...
  • Page 7 Rooster™ Pressure100 USER MANUAL 62314MN000-A00 ALARM VOLUME Users can toggle through low, medium or high alarm volumes. If logged in as an EH&S or Certifier, a global minimum volume threshold can be set. This restricts a standard user from setting an alarm volume too low for a facility’s safety requirements. Home>...
  • Page 8 Rooster™ Pressure100 USER MANUAL 62314MN000-A00 keypad OR plug in a USB interface keyboard to enter a 12 character alphanumeric tag. Home> Settings>System>Advanced>Configure Room Name PASSWORD-PROTECTED ACCESS TIERS: CERTIFIER & EH&S Password protected access tiers enable advanced configuration options and features. Home>...

  • Page 9: Rear Panel Layout For Advanced Connections

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 Rear Panel Layout for Advanced Connections Figure 4 Connections Connection Connector Type Mating Connector Description 2-pin, polarized, Power Entry Included with display module. Phoenix Contact 4-pin, push-in Included as part of pressure sensor. RS485 spring connection For replacement, Part Number: Phoenix Contact 1778573 8-pin, polarized, Not included.

  • Page 10: Technical Specifications

    RoHS Connection and Wiring Information Degree Controls recommends 18-24 AWG wire be used for all wiring connections to the input and output connectors. The Power Entry connection has been prepared for you, and merely needs to be pulled through the electrical box knock-out and connected to the Power Entry connection of the display module.

  • Page 11: Door Switch Input

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 The I/O connectors present on the Rooster Pressure100 have some pins deactivated as these are reserved for future Rooster models designed for more advanced control functionality. Leave these pins non-connected. Door Switch Input This door switch input is a digital input, dry contact, and the default I/O polarity of this door switch input is normally closed.

  • Page 12: Mechanical Information

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 Mechanical Information Display Module Mechanical Drawing Rear Panel of Display Module Figure 5 Display Module Mechanical Drawing Pressure Sensor Mechanical Drawing Figure 6 Pressure Sensor Dimensions 12 of 30...

  • Page 13: Template For Pressure Sensor Mounting

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 Template for Pressure Sensor Mounting Optional Pre Pilot Drill Figure 7 Pressure Sensor Mounting Template Dimensions External Face Plate Mechanical Drawing Figure 8 External Face Plate Dimensions 13 of 30...

  • Page 14: Installation

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 Installation Installation Overview Installation of the Rooster Pressure100 involves selecting and preparing an appropriate location, wiring and connecting the unit, and then mounting the unit to the wall securely. Notes: Typically, the Rooster Pressure100 display module is mounted near an access door, at ...

  • Page 15: Back Plate Mounting - Display Module

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 The Rooster Pressure100 is a pre-calibrated device, with stated accuracy performance. It does not require any special certification process to function properly. However, this should not imply that industry standard annual laboratory certification processes should not be adhered to.
  • Page 16 Rooster™ Pressure100 USER MANUAL 62314MN000-A00 a. The display module is designed to mount semi-flush where the back plate sits partially inside a standard electrical box. Using this method, the display module protrudes 15mm [0.6”] from the wall. Electrical Box Display Module Back Plate Figure 11 Semi-Flush Back Plate Mounting Pressure Sensor Mounting Preparation 3.
  • Page 17 Rooster™ Pressure100 USER MANUAL 62314MN000-A00 The pressure sensor is typically mounted on the side of the wall with the display module. 9. Feed the flexible tubing through the pressure sensor base. 10. Connect the tubing to the appropriate piton on the pressure sensor. Be sure to leave enough bend radius to ensure that the tubing will not kink, disrupting airflow.
  • Page 18 Rooster™ Pressure100 USER MANUAL 62314MN000-A00 16. Secure the display module back plate using Sensor the included screws. Cable Power Cable Figure 15 Back Plate Secured to Electrical Box 17. Connect power and sensor to the display module. Make any other optional connections to the display module.

  • Page 19: Boot Up Procedure

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 Tubing Base Screw (2X) Cover Figure 18 External Face Plate Mounting Boot Up Procedure The Rooster Pressure100 does not have a power-on switch and will become energized as soon as you apply power to it. The Rooster Pressure100 boots to the screen depicted on the right, with a slot for a custom logo.

  • Page 20: Access Tier Privileges: User, Eh&S & Certifier

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 ACCESS TIER PRIVILEGES: USER, EH&S & CERTIFIER Users have the ability to customize their pressure areas within Manufacturer default passcodes: a defined set of options for each authorization level. There are three levels of access to the Rooster : User, EH&S = 6823 EH&S/Facility Manager and Certifier.

  • Page 21: Thresholds

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 Under “Calibration Info,” you can view the date the unit was last calibrated successfully. To calibrate the unit: 1) Press “Calibrate.” The Calibration Setup screen will display. 2) On the Calibration Setup screen, you will have the option to select the amount of allowed turbulence, either normal or high.

  • Page 22: Alarms/Sound

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 adjust these values as needed. You can clear both the occupied and unoccupied thresholds by pressing the “Clear” button. 2) By default, no value is set for the unoccupied mode of operation. Depending on your application or setup, you may not need to have an active alarm during unoccupied mode.
  • Page 23 Rooster™ Pressure100 USER MANUAL 62314MN000-A00 Note that users can optionally reverse the input relay trigger behavior by adjusting settings here: Home> Settings>System>Advanced>I/O Polarity Door Alarm Mute The Rooster Pressure100 provides the user with the ability to temporarily mute alarms for low or high pressure when the door is open.
  • Page 24 Rooster™ Pressure100 USER MANUAL 62314MN000-A00 Settings Definition 5min A muted alarm will ringback audibly after 5 minutes if the unit is still in an active alarm state. 10min A muted alarm will ringback audibly after 10 minutes if the unit is still in an active alarm state.

  • Page 25: Brightness

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 Brightness Brightness is adjusted via the left and right arrows. Actual screen brightness adjusts immediately as the setting is changed. The Enter button will save the brightness setting and cancel will leave the setting unchanged. Normal and dim brightness levels are displayed as percentages.

  • Page 26: I/O Polarity

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 I/O Polarity For advanced users, it may be helpful to toggle relay and input nodes from Normally Closed to Normally Open. Two input relays, and one output relay, may be configured as shown in the image to the right.

  • Page 27: Troubleshooting

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 To delete the log file, press the “Delete Log” icon at the bottom center of the screen. A screen will appear asking you to confirm deletion. Troubleshooting The Rooster Pressure100 is designed to be user-friendly and trouble free. Possible system problems are outlined below.

  • Page 28: Usb Field Upgrade Procedure

    If this is not the case, repeat steps 1-5 again. Factory Reset Procedure The Master Reset will return the Rooster Pressure100 to its default alarm & input/output settings. For more information, contact Degree Controls. 28 of 30...

  • Page 29: Gui Map

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 GUI Map 29 of 30...

  • Page 30: Warranty

    Rooster™ Pressure100 USER MANUAL 62314MN000-A00 Warranty For a period of one (1) year following the date of delivery, and subject to the other provisions of this Warranty Section, DegreeC warrants that all new products that are both (a) manufactured by DegreeC and (b) purchased directly from DegreeC (or an authorized distributor of DegreeC) shall be free of material defects in materials and workmanship.
