Summary of Contents for Kontron ADA-LVDS-DVI

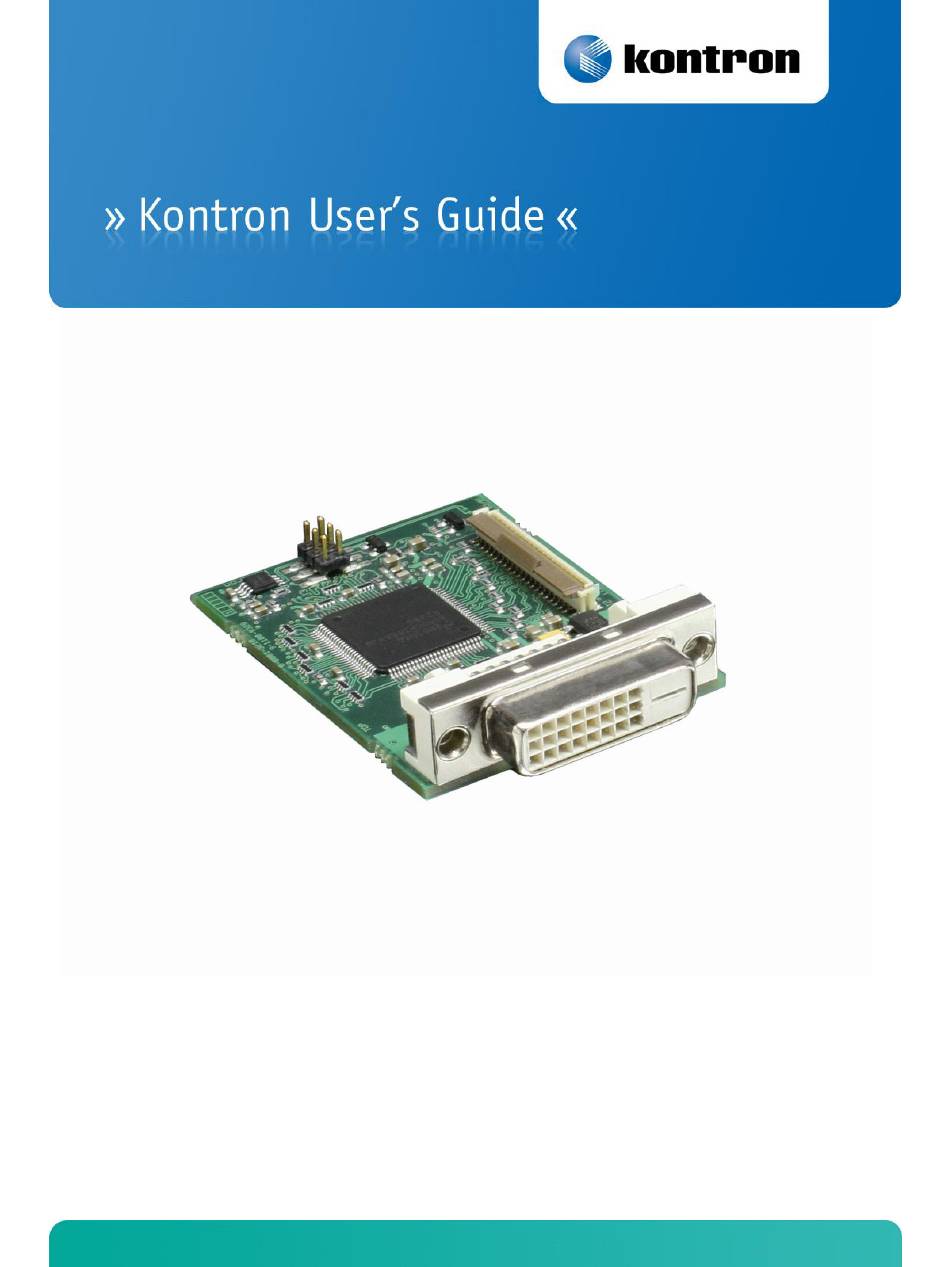

- Page 1 ADA-LVDS-DVI Document Revision 122 If it’s embedded, it’s Kontron.
-
Page 3: Table Of Contents
Supply Voltage ........................7 Environmental Specification ...................... 8 MTBF ............................ 8 Connector Layout ................9 Layout ..........................9 Interfaces ..........................9 Getting started ................10 Chipset..................11 LVDS Receiver DS90CF388 ....................... 11 PanelLink Transmitter Sil1160CTU ..................... 11 LVDS Interface ................12 www.kontron.com... - Page 4 Connector..........................12 Connection table ADA-LVDS-DVI to JILI interface ................. 13 DVI Interface ................14 Connector..........................14 DDC and Hot-Plug information ....................15 Schematics .................. 16 10 Document Revision History .............. 21 www.kontron.com...
-
Page 5: User Information
“as-is” and is subject to change without notice. For the circuits, descriptions and tables indicated, Kontron assumes no responsibility as far as patents or other rights of third parties are concerned. -
Page 6: Warranty
This Kontron Embedded Modules GmbH product is warranted against defects in material and workmanship for the warranty period from the date of shipment. During the warranty period, Kontron Embedded Modules GmbH will at its discretion decide to repair or replace defective products. -
Page 7: Introduction
BIOS versions to support this feature. Most LVDS interfaces are 18 and 24bit compatible to work with default ADA-LVDS-DVI 24bit. For chipsets supporting 18bit LVDS only the second variant ADA-LVDS-DVI 18bit should be used. -
Page 8: Specification
» Silicon Image Sil1160CTU PanelLink transmitter(digital-to-DVI) LVDS interface » Input to the adapter » Compliant with the 40pin JILI standard of Kontron Embedded Modules GmbH » Dual link LVDS channel with 1 DDC DVI interface » Output from the adapter »... -
Page 9: Block Diagram
ADA-LVDS-DVI / Specification Block Diagram... -
Page 10: Meachnical Specification
ADA-LVDS-DVI / Specification Meachnical Specification » PCB Length x Width: 52mm x 40mm (2.05" x 1.57") » Module Length with DVI connector: 59mm (2.32”) » Minimum Cable Length: 200mm (7.87”) » Height on Top: Maximum 10mm (0.39”) » Height on Bottom: Maximum 3mm (0.12”) »... -
Page 11: Electical Specification
ADA-LVDS-DVI / Specification Electical Specification 3.4.1 Supply Voltage » 5VDC ±5% Supply Current » Typical: 240mA » Maximum: 500mA Power Supply Risetime » The input voltages shall rise from ≤10% of nominal to within the regulation ranges within 0.1ms to 20ms. -
Page 12: Environmental Specification
ADA-LVDS-DVI / Specification Environmental Specification Temperature » Maximum operating temperature: 0 to +60 °C (**) » Non operating: -10 to +85 °C Note: **The maximum operating temperature is the maximum measurable temperature on any spot on a module’s surface. You must maintain the temperature according to the above specification. -
Page 13: Connector Layout
ADA-LVDS-DVI / Connector Layout Connector Layout Layout Interfaces Connector Function Used Connector Description MicroCross™ DVI Socket, right angle DVI Interface For DVI Monitor cable (Molex 74320-1004) FFC 1x40 SG Head2 LVDS Interface For flat-foil cable (Hirose FH12-40S-0.5SV) PIC Programming Interface 2mm 2x3 pos. -
Page 14: Getting Started
ADA-LVDS-DVI / Getting started Getting started Getting started with the ADA-LVDS-DVI adapter is very easy. For location of the connectors, see Chapter 3: Connector Layout. Take the following steps: » Turn off the power supply of your system. » Connect the 40pin flat-foil cable coming with the adapter to the ADA-LVDS-DVI printed circuit board. -
Page 15: Chipset
ADA-LVDS-DVI / Chipset Chipset The chipset of the ADA-LVDS-DVI consists of the National DS90CF388 LVDS receiver and the Silicon Image Sil1160CTU PanelLink Transmitter. LVDS Receiver DS90CF388 » Supports dual-pixel data transmission » Up to UXGA (1600x1200) resolution » Complies with OpenLDI specification for digital display interfaces »... -
Page 16: Lvds Interface
ADA-LVDS-DVI / LVDS Interface LVDS Interface The LVDS interface functions as an input to the ADA-LVDS-DVI module. It is available through the flat-foil connector J2 (40 pins). You can connect the LVDS interface to your Kontron Embedded Modules board's JILI connector via the 40pin flat-foil cable delivered with this adapter. -
Page 17: Connection Table Ada-Lvds-Dvi To Jili Interface
ADA-LVDS-DVI / LVDS Interface Connection table ADA-LVDS-DVI to JILI interface The following table gives a better understanding about which signal of the LVDS interface corresponds to which signal of the JILI interface. The pin counting is inverted due to the use of the 40pin flat-foil cable with contacts on one side. -
Page 18: Dvi Interface
DVI Interface The DVI interface functions as an output from the ADA-LVDS-DVI. This interface is available through the female DVI-D connector J1 (24 pins). You can directly connect a DVI monitor with its male connector to this interface. This interface is a single link TMDS®... -
Page 19: Ddc And Hot-Plug Information
ADA-LVDS-DVI / DVI Interface DDC and Hot-Plug information The ADA-LVDS-DVI is equipped with an onboard microcontroller. After power-on of the system the /HOTPLUG signal of the LVDS interface goes high for about 10ms and the microcontroller is initialized. After initialization the /HOTPLUG signal goes low and the microcontroller will read in the DDC (Display Data Channel) of the connected DVI monitor. -
Page 20: Schematics
ADA-LVDS-DVI / Schematics Schematics... - Page 21 ADA-LVDS-DVI / Schematics...
- Page 22 ADA-LVDS-DVI / Schematics...
- Page 23 ADA-LVDS-DVI / Schematics...
- Page 24 ADA-LVDS-DVI / Schematics...
-
Page 25: 10 Document Revision History
ADA-LVDS-DVI / Document Revision History 10 Document Revision History Revision Date Edited by Changes 03.01.2006 Initial Release Changed to new Kontron Style 09.09.2008 Updated descriptions due to compatibility to all new Intel Chipsets 14.01.2009 Replaced DVI-I with DVI-D in functional specification 13.09.2010...
