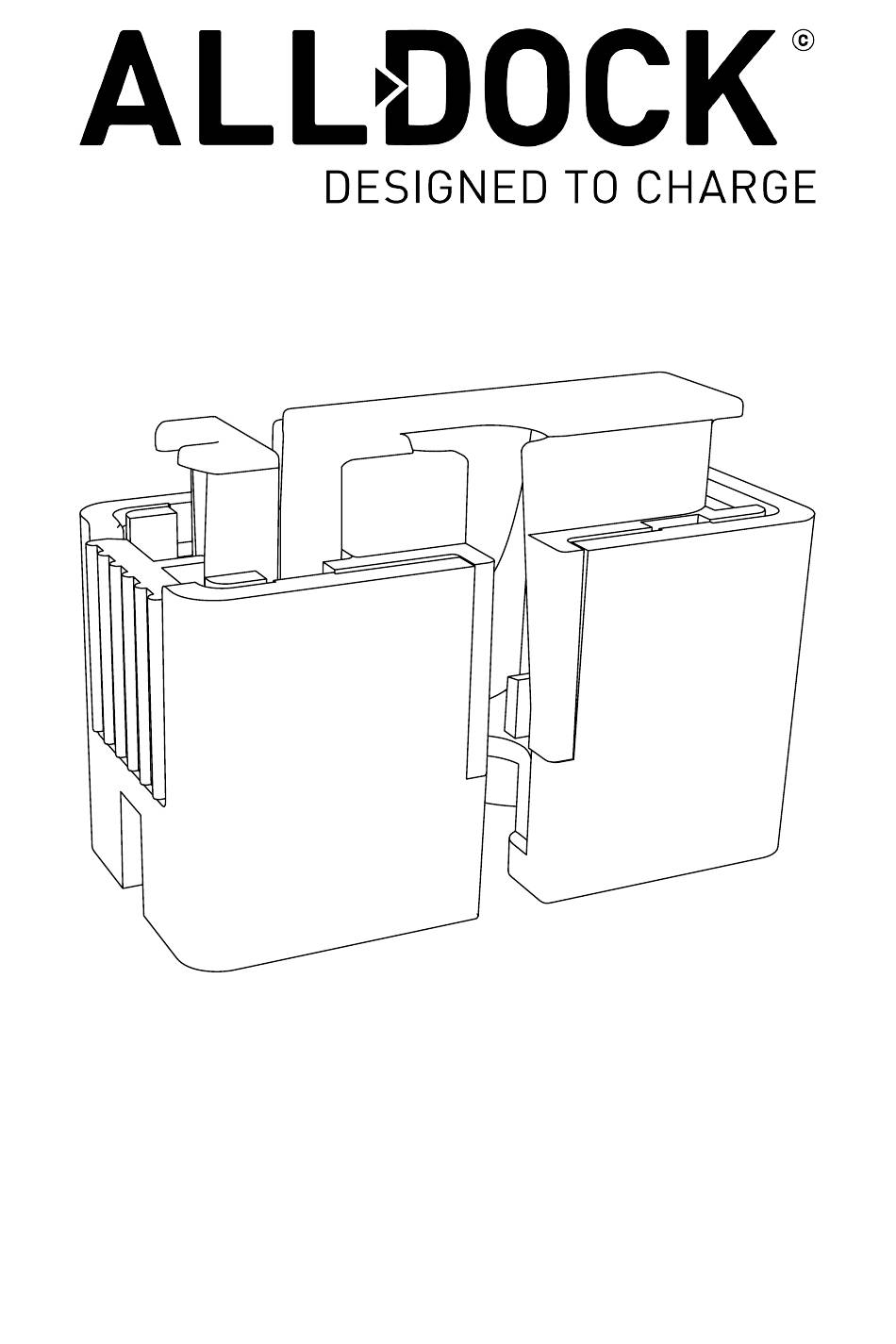

  • Page 1 ASSEMBLY INSTRUCTIONS ONE-HAND-DOCK-ADAPTER...
  • Page 4 rubber inlays 2x2.5mm 2x3.5mm The rubber inlays are provided for the adjustment of the height of the connector to the respective mobile phone protective cover. The thicker the protective cover, the larger the inlays that need to be used.
  • Page 8 Turn the device upside down.
  • Page 9 Wind the cable around the stub on the underside and firmly press the cable into the slot. See the illustration.
  • Page 11 Now first press in the one- hand click-in adapter with the lever in the round corner. The lever is flexible and will give slightly. Then press the entire adapter into the opening. The adapter should now be secure in the opening.
  • Page 12 Connect the USB cable to the ALLDOCK charging device.
  • Page 13 Close the cover. The one-hand click-in adapter is now ready for use.
  • Page 14 © 2018 ALLDOCK. ALL RIGHTS RESERVED. ALLDOCK AND THE ALLDOCK LOGO ARE TRADEMARKS OF DITTRICH DESIGN GMBH . PATENT NR. 102013009880.7 www.alldock.com www.alldock.de...
