Summary of Contents for Cisno TAB-QT560Z

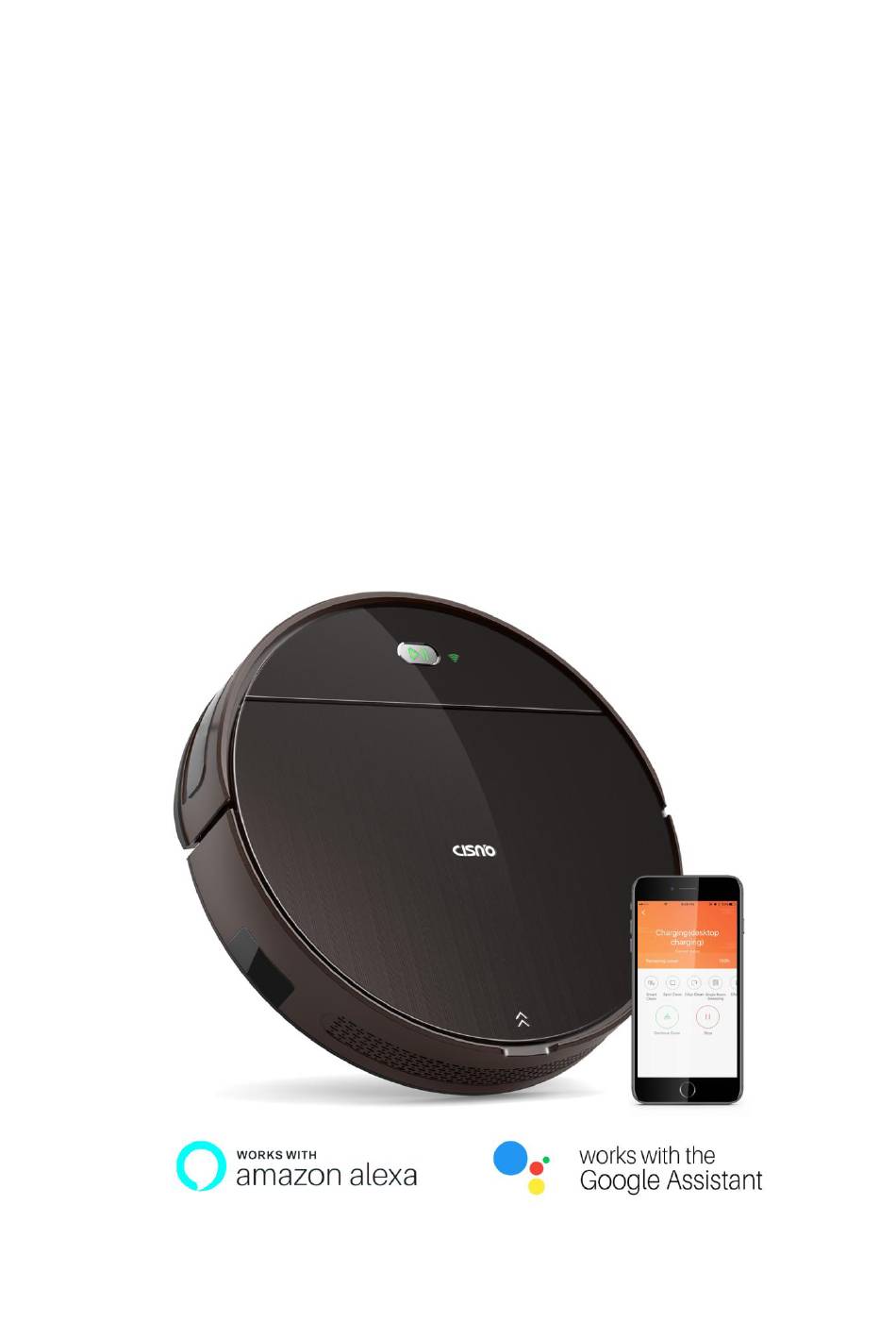

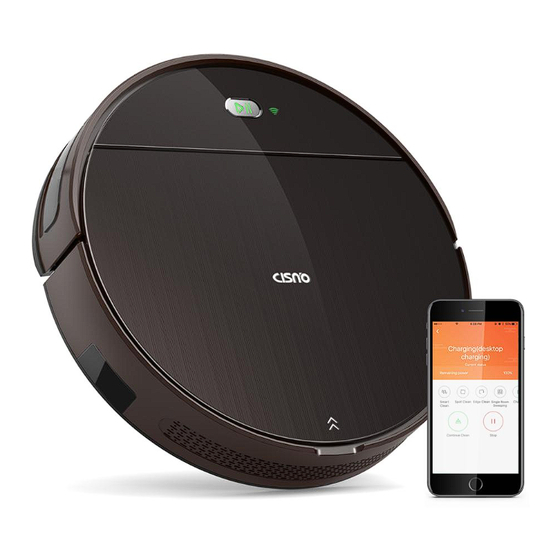

- Page 1 CISNO robotic vacuum cleaner TAB-QT560Z Manual Instructions...
-
Page 2: Table Of Contents
CONTENT Important safety instructions ....................3 Use Restrictions ........................3 Battery and Charging ......................4 Getting to know your CISNO Vacuum Cleaning Robot .............. 5 Product Diagram ........................5 Accessories ..........................6 Dust bin ..........................6 Technical Specifications ......................6 Operating and Programming ..................... -
Page 3: Important Safety Instructions
The robot must be used in accordance with the directions in this Instruction Manual. CISNO cannot be held liable or responsible for any damages or injuries caused by improper use. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. -
Page 4: Battery And Charging
Battery and Charging Use only rechargeable battery packs with the correct specification approved by CISNO. Charge using a standard outlet only. Product may not be used with any type of power converter. Use of other power converters will immediately void the warranty. -
Page 5: Getting To Know Your Cisno Vacuum Cleaning Robot
17. Do not short-circuit the battery pack. 18. Do not immerse the battery pack in any liquid CISNO V ETTING TO KNOW YOUR ACUUM LEANING OBOT Product Diagram... -
Page 6: Accessories
Accessories Dust bin Technical Specifications Voltage: 14.8V Battery type: DC 14.8V Li-ion 2500mAh Expected cleaning time: 100 minutes Expected charging time: 4-6 hours Input Voltage of charging base: 100-240V Output Voltage of charging base: 20V Noise Level: 65dbA(quiet mode), 70dbA(strong mode) & 20dbA(mopping mode) Dimensions: 12.6 x 12.6 x 3.1 inch... -
Page 7: Operating And Programming
PERATING AND ROGRAMMING Using the remote control A Suction icon B Smart mode icon C Dock icon D Time icon E Schedule icon F Single room mode icon G Mop mode icon H Edge mode icon 1 On/Off button 2 Smart mode button 3 Dock button 4/8 UP/DOWN arrows 5 Confirm/Clean Button... -
Page 8: Setting Your Cleaning Schedule On The Remote
Using the APP(See WiFi setup instruction) Quick Start(See User Guide) Cleaning mode selection CISNO robot vacuum cleaner has several cleaning modes to choose from to effectively clean different floors by using the remote control or App. For more information, please see the WiFi setup instruction. - Page 9 To start smart cleaning mode, pres the button on the robot, or on the app, or the on the remote control. Spot Cleaning Mode When you select Spot Cleaning, robot intensely cleans a localized area by spiraling outward about 3 feet (1 meter) in diameter and then spiraling inward to where it started.
-
Page 10: Maintaining Your Cisno Robotic Vacuum
APP. NOTE: You can adjust the vacuum power by pressing the button on remote control, or on the APP. CISNO R AINTAINING YOUR OBOTIC ACUUM Emptying the dust bin 1. -
Page 11: Cleaning The Filters
Cleaning the filters 1. With the dust bin out of the unit, clear dust from the suction channel. 2. Remove the HEPA filter. 3. Clean the dust bin and filters with a cleaning brush NOTE: Wash the dust bin and pre-filter with water only. Do not wash the HEPA filter ... -
Page 12: Replacing The Side Brushes
Replacing the side brushes To remove a bent or damaged side brush, pull it off its post. To install new side brush, align hole in center of brush over post on bottom of unit. Press side brush down over the post until it clicks into place. L and R corresponds to each other. Cleaning the cliff sensors and charging pads For best results, clean cliff sensors and charging pads periodically as needed. -
Page 13: Regular Maintenance
Charging dock pins Tips and tricks CISNO Robot Vacuum cleaner can clean all areas of your floors and navigate its way out of tight spaces. During your first few cleanings, you may need to make some small adjustments to optimize its performance. -
Page 14: One Year Limited Warranty
One- year Limited Warranty CISNO vacuum cleaning robots have a one-year limited warranty, including the motor, 180- day limited warranty for battery charging base and water tank. Consumable components like brushes and filters are not covered. All limited warranties begin on the date of purchase. - Page 15 Please note that we often ship orders in multiple packages. However, if items are apparently missing from your order, please report it to us immediately so we can track packages and replace the shipment if necessary. Defective or Malfunctioning New Merchandise If any item is not working properly, please contact us immediately so that we can send a replacement.
