Eco-Energysavers Air-Con Monitor Advanced Quick Start Manual

First Power Up

For best results use Alkaline AA batteries or better to ensure long life. Please do not use rechargeable batteries.
When the unit is powered up for the first time the
the PIR is being allowed to settle to avoid any false triggers.
This means the unit cannot be interacted with for 20 seconds.
Opening the unit for viewing LED's, battery installation.
To open the unit unscrew the bottom and lift up to release for access to the battery compartment, setup LEDS. Please Make sure when
inserting batteries the - (negative) side of the batteries make contact with the springs.
When programming with the button you will be able to easily view the LED's with the top removed. When closing the top locate the top
notches then lower in place and screw back. Be careful not to bend the raised IR transmitter LED.

Setup

If the unit is not interacted with for 15 seconds it will come out of the setup mode saving any settings you have put in up to that point.

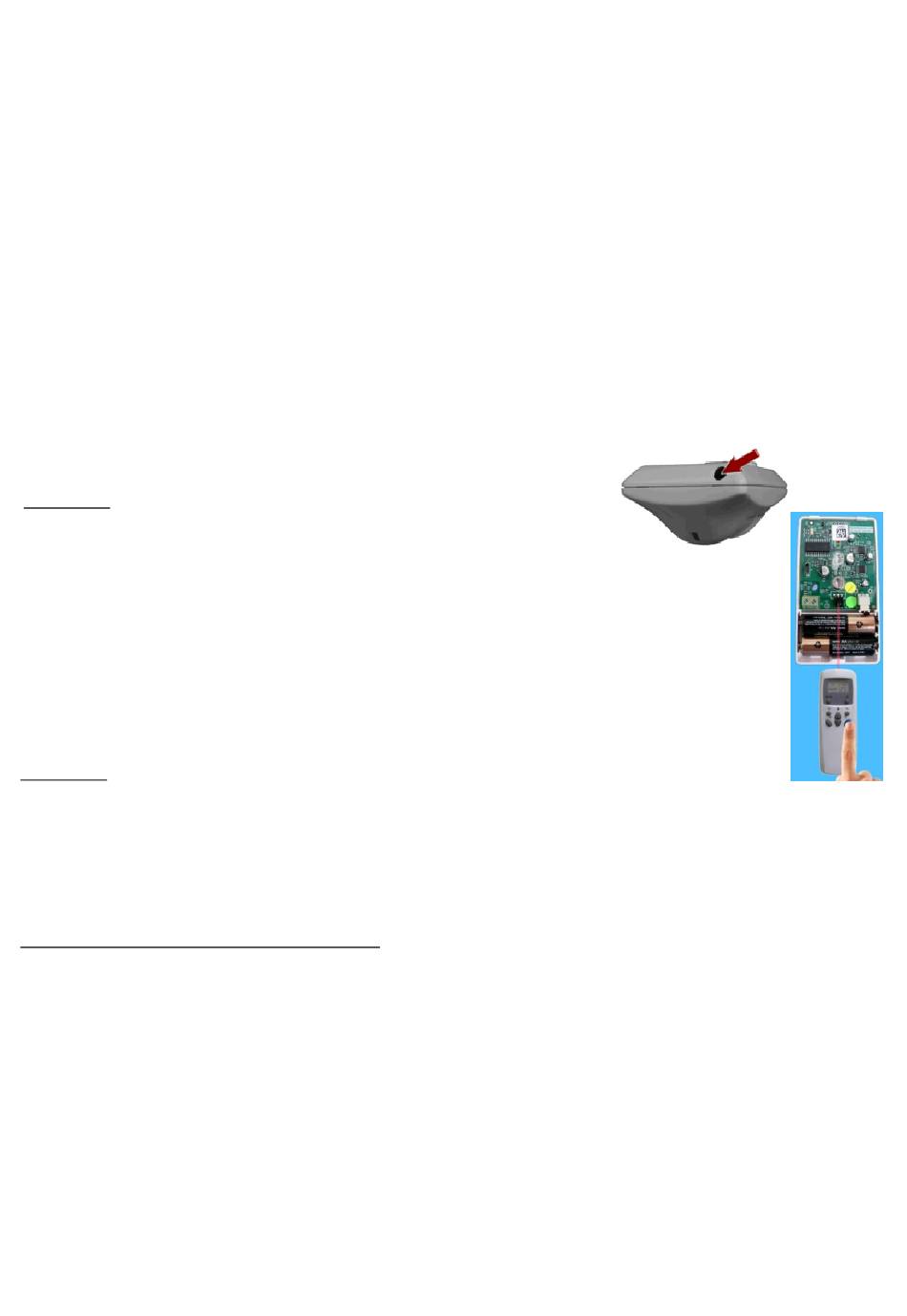

A quick Press of the black set up button (red arrow) will start the first set up mode.

Setup Mode 1

The RED Led flashes once.
This stores the OFF command from your air-con remote control.
First make sure your air-con remote control is on (as you would do when switching on your air-con unit)
Then do a short button press which will turn on the
air-con remote control, point your air-con remote control at the monitor and press the off button, you will see the
LED turn off to indicate that it has stored the off command.
(If the button is pressed and no off command is received after around 5 seconds the unit will timeout and you will need to
do another short press to turn the green led on again)
To move to the next mode press and hold the button until you see 2

Setup Mode 2

The RED Led flashes 2 times.
You can test your OFF command is switching off your air-con from here by a short button press. The command is sent once per button press.
The GREEN LED will flash when the command is transmitted.
To move to the next mode press and hold the button until you see 3
Setup Mode 3 - You can also set this up via the PC software
The RED Led flashes 3 times.
This sets the amount of time that elapses when no movement is detected before sending the off command.
A short button press changes the flashing
indicates the following:-
1 GREEN flash = switch off the air-con if no movement is detected for 15 mins
2 GREEN flashes = switch off the air-con if no movement is detected for 30 mins
3 GREEN flashes = switch off the air-con if no movement is detected for 60 mins
4 GREEN flashes = OFF the monitor movement sensor is disabled.
To move to the next mode press and hold the button until you see 4
Air-Con Monitor Advanced
Quick Start Guide v3-14
RED LED remains illuminated for 15 seconds and then stops for 3 seconds. During this time
GREEN LED, now the monitor is waiting for the off command from your
RED
RED
GREEN LED. Each short press will increase the number of flashes up to 4 flashes. Each
RED
flashes and release.
flashes and release.
flashes and release.
GREEN
GREEN flash
