Description
E 2003 Nordson Corporation
r
MEG
Quick-Electrical Connector
WARNING: Allow only qualified personnel to perform the following tasks.
Follow the safety instructions in this document and all other related
documentation.

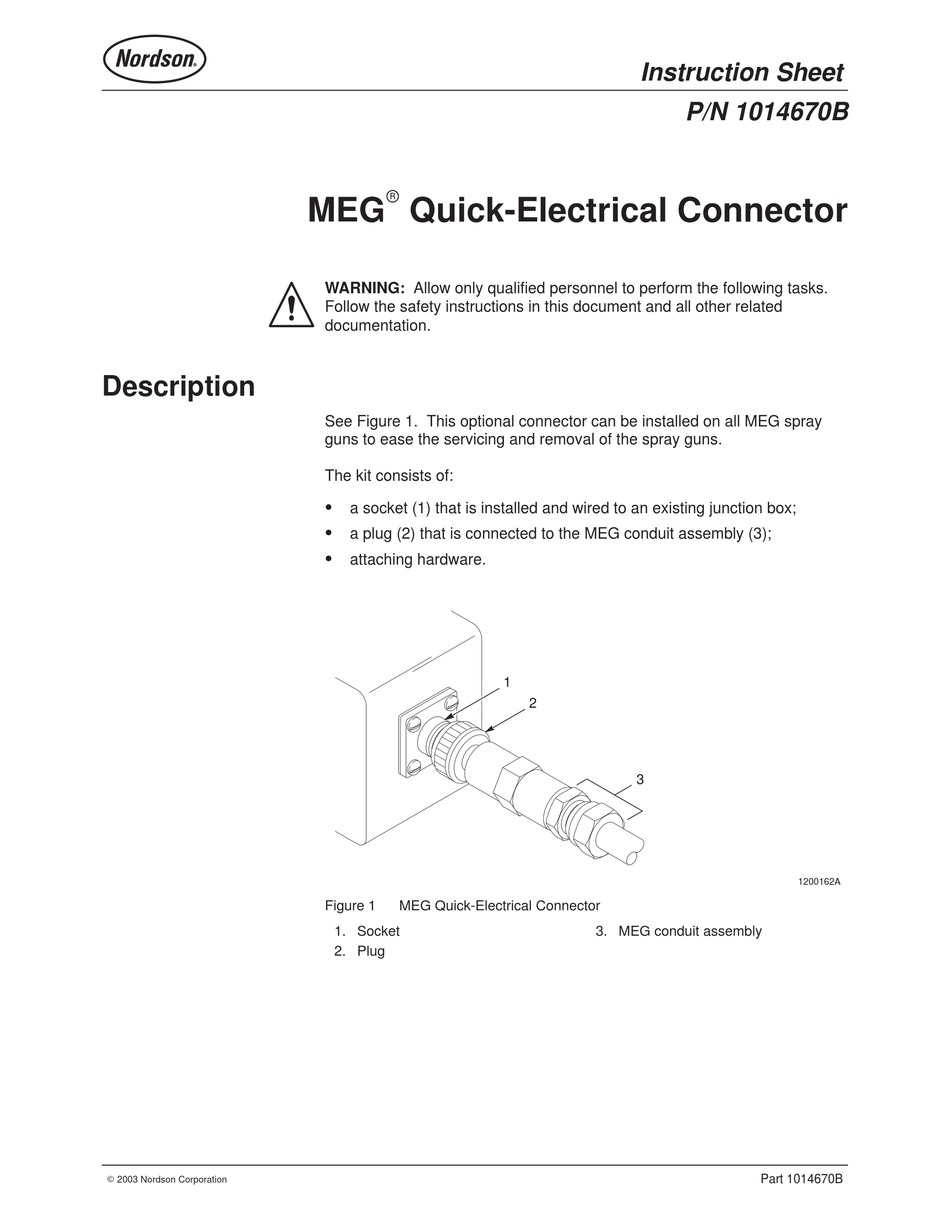

See Figure 1. This optional connector can be installed on all MEG spray
guns to ease the servicing and removal of the spray guns.
The kit consists of:
S
a socket (1) that is installed and wired to an existing junction box;
S
a plug (2) that is connected to the MEG conduit assembly (3);
S
attaching hardware.
Figure 1
MEG Quick-Electrical Connector
1. Socket
2. Plug
Instruction Sheet
1
2
3
3. MEG conduit assembly
P/N 1014670B
1200162A
Part 1014670B
Advertisement
Table of Contents
Summary of Contents for Nordson MEG
- Page 1 Follow the safety instructions in this document and all other related documentation. Description See Figure 1. This optional connector can be installed on all MEG spray guns to ease the servicing and removal of the spray guns. The kit consists of: a socket (1) that is installed and wired to an existing junction box;...
- Page 2 1. Make sure that power to the spray gun is off. 2. Lay the three wires extending from the existing MEG gun conduit assembly on a flat surface. Measure 17.8 cm (7 in.) from the conduit assembly and cut the wires.
- Page 3 MEG Quick-Electrical Connector Wire the Spray Gun to the Plug 1. See Figure 3. The MEG gun conduit assembly (5) includes a conduit seal and a locknut. Remove and discard both of these items from the assembly. 2. Thread the conduit assembly wires through the adapter (4).
- Page 4 S CONNECTOR, plug, MS3106E, pin 1040710 S ADAPTER, electrical connector, MEG 1011320 1200166A Figure 5 MEG Quick-Electrical Connector Issued 4/03 Original copyright date 2001. MEG, Nordson, and the Nordson logo are registered trademarks of Nordson Corporation. E 2003 Nordson Corporation Part 1014670B...
