STEP 1
STEP 5
Technical & Warranty Information
Contact Allegion Customer Care at 877-671-7011
IPB Series Installation Instructions

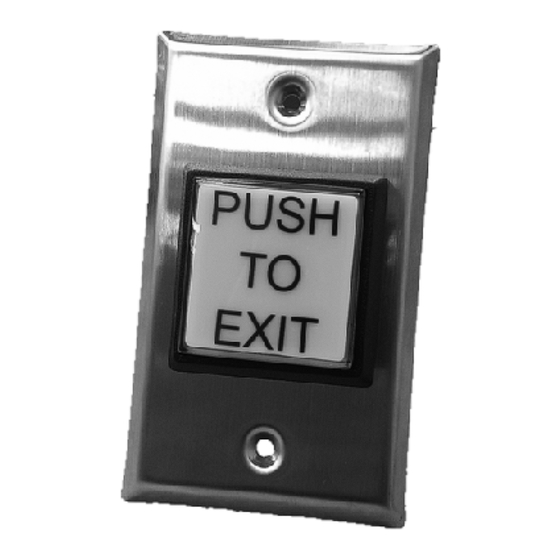

IPB-100, IPB-100-N
STEP 3
and 4
STEP 2
For details regarding the limited warranty:
Customer Service
1-877-671-7011
Specifications
Installation
(1) Insert the push button assembly into the
faceplate
(2) Lock the provided nut onto the push button
assembly from the back side of the faceplate
(3) Choose the preferred lens cap included in the
box
(4) Assemble chosen lens cap to the push button
assembly
(5) Twist the chosen lamp-holder / switch assembly
(SPDT & DPDT Provided) into the push button
www.allegion.com/us
LED
12/24 VDC
24 VDC 10 ma
SWITCH
3A @ 125VAC
-30 to +50 Celsius
47259490 Rev 07/19-c
© Allegion 2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allegion Locknetics IPB-100
Summary of Contents for Allegion Locknetics IPB-100
-
Page 1: Specifications
STEP 5 (5) Twist the chosen lamp-holder / switch assembly (SPDT & DPDT Provided) into the push button Technical & Warranty Information Contact Allegion Customer Care at 877-671-7011 For details regarding the limited warranty: Customer Service 1-877-671-7011 www.allegion.com/us © Allegion 2019... - Page 2 ÉTAPE 5 Renseignements techniques et relatifs à la garantie Communiquez avec le service client d’Allegion au 877-671-7011 Pour plus de détails concernant la garantie limitée : Service à la clientèle 1-877-671-7011...
