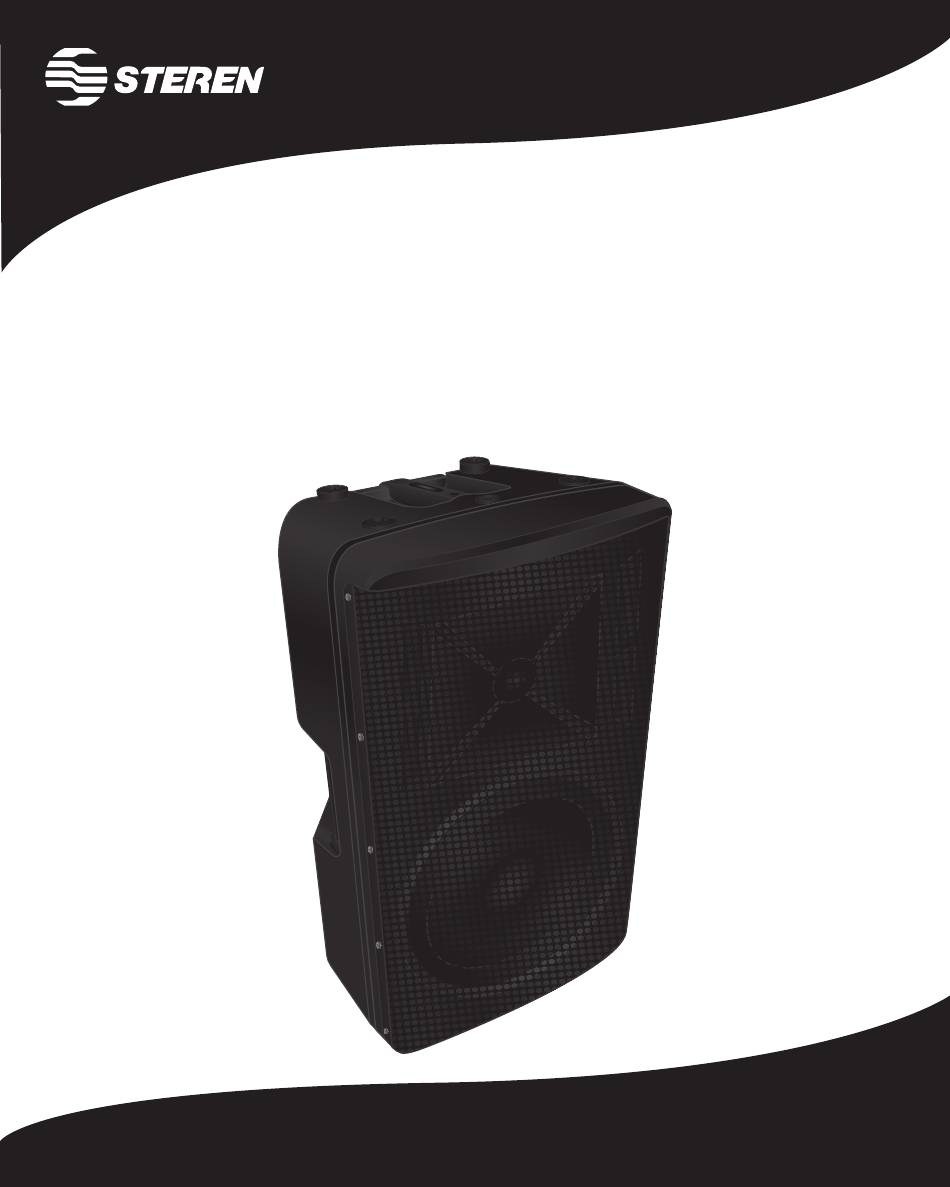

Manual de instrucciones
BAFLE PROFESIONAL DE 15"
V0.2
BAF-1594
BAF-1594BT
0118m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BAF-1594 and is the answer not in the manual?

Questions and answers

Summary of Contents for Steren BAF-1594

  • Page 1 Manual de instrucciones BAFLE PROFESIONAL DE 15” V0.2 BAF-1594 BAF-1594BT 0118m...
  • Page 2 La información que se muestra en este manual sirve únicamente como referencia sobre el producto. Debido a actualizaciones pueden existir diferencias. Por favor, consulte nuestra página web www.steren.com para obtener la versión más reciente de este manual. PRECAUCIONES • Este aparato NO está destinado a ser utilizado por personas con capacidades diferentes, a menos que cuenten con la preparación y supervisión adecuadas.
  • Page 3: Cable De Alimentación

    CONTENIDO Bafle Cable de alimentación Control remoto DESCRIPCIÓN GENERAL DEL BAFLE Módulo de reproducción Volumen del micrófono 1 Volumen del micrófono 2 Volumen de entrada de Línea Frecuencias altas (TREBLE) Frecuencias bajas (BASS) Volumen general (VOLUME) Entrada 6,3 mm para micrófono (MIC1 INPUT) Entrada Cannon para micrófono (MIC1 INPUT) Entrada 6,3 mm para micrófono (MIC2 INPUT) Entrada de Línea con conectores RCA (LINE INPUT)
  • Page 4 MODE MIC 1 INPUT LEVEL LEVEL LINE INPUT LEVEL TREBLE LINE OUTPUT BASS SPEAKER OUT VOLUME CLIP POWER IMPEDANCE:8 OHM POWER AC110V 50/60HZ...
  • Page 5 MÓDULO DE REPRODUCCIÓN BAF-1594 Display Ranura para tarjeta SD (con archivos MP3) Cambiar modo de reproducción Reproducir/Pausar Menú de reproducción Repetir pistas (ALL: todas / Folder: una carpeta / One: una pista /Random: todas aleatoriamente) Pista anterior / Retroceso rápido ** Pista siguiente / Avance rápido **...
  • Page 6: Control Remoto

    CONTROL REMOTO Reproducir/Pausar /Búsqueda automática de estaciones FM (FM sólo para BAF-1594BT) Selección manual de estación FM (sólo para PLAY/PAUSE CHANNEL BAF-1594BT) VOL- VOL+ Ecualización Disminuir / Aumentar volumen PREV NEXT Pista anterior / Estación FM anterior (FM sólo para BAF-1594BT) Pista siguiente / Estación FM siguiente (FM sólo para BAF-1594BT)
  • Page 7 CONEXIONES BAF-1594 MODE MIC 1 INPUT LEVEL LEVEL LINE INPUT LEVEL TREBLE LINE INPUT BASS SPEAKER OUT VOLUME CLIP POWER IMPEDANCE:8 OHM POWER AC110V 50/60HZ...
  • Page 8 CONEXIONES BAF-1594BT MODE MIC 1 INPUT LEVEL LEVEL LINE INPUT LEVEL TREBLE LINE INPUT BASS SPEAKER OUT VOLUME CLIP POWER IMPEDANCE:8 OHM POWER AC110V 50/60HZ...
  • Page 9: Opciones De Reproducción

    Presione el botón MODE en el módulo o en control remoto para cambiar a modo Bluetooth. Ingrese a las opciones de Bluetooth en el dispositivo que desea vincular. Busque y seleccione Steren BAF-1594. Si la vinculación es exitosa, en el display aparecerá la leyenda “Connected!”...
  • Page 10: Menú De Reproducción

    MENÚ DE REPRODUCCIÓN Para entrar al menú de reproducción presione MODE y utilice para desplazarse entre las opciones del menú. Para seleccionar una de las opciones presione el botón Play Mode Modo de reproducción EQ Mode Modo de ecualizador Folder Carpeta Delete files Borrar archivos...
  • Page 11: Especificaciones

    ESPECIFICACIONES Alimentación: 110 – 240 V ~ 50/60 Hz 350 W máx. Potencia: 300 Wrms Consumo nominal: 300 W/h Consumo en espera: No aplica Amplificador Respuesta en frecuencia: 20 a 20 000 Hz Distorsión: THD 0,1 % Woofer Diámetro: 38 cm (15”) Impedancia: 8 ohms Potencia: 250 W Diámetro de bobina: 60 mm (2,37”)
  • Page 12 1.- Para hacer efectiva la garantía, presente esta póliza o factura, comprobante y el producto, en donde fue adquirido o en Electrónica Steren S.A. de C.V. 2.- Electrónica Steren S.A de C.V. se compromete a reparar el producto en caso de estar defectuoso sin ningún cargo al consumidor. Los gastos de transportación serán cubiertos por el proveedor.
  • Page 13 Instruction manual 15” PROFESSIONAL SPEAKERBOX V0.2 BAF-1594 BAF-1594BT 0118m...
  • Page 14 The instructions of these manual are for reference about the product. There may be differences due to update. Please check our web site www.steren.com to obtain the latest version of the instruction manual. CAUTIONS • This device is NOT intended for use by persons with different capacities, unless they are adequately prepared and supervised.
  • Page 15 CONTENT Speakerbox Power cable Remote control SPEAKERBOX GENERAL DESCRIPTION Playback module Microphone volume 1 Microphone volume 2 Line input volume TREBLE BASS General volume (VOLUME) 6.3 mm microphone input (MIC 1 INPUT) Cannon microphone input (MIC1 INPUT) 6.3 mm microphone input (MIC2 INPUT) Line Input with RCA connectors (LINE INPUT) Cannon line input jack (LINE INPUT) Cannon line output plug (LINE OUTPUT)
  • Page 16 MODE MIC 1 INPUT LEVEL LEVEL LINE INPUT LEVEL TREBLE LINE OUTPUT BASS SPEAKER OUT VOLUME CLIP POWER IMPEDANCE:8 OHM POWER AC110V 50/60HZ...
  • Page 17 PLAYBACK MODULE BAF-1594 Display SD card slot (with MP3 files) Change playback mode Play / Pause Playback menu Repeat tracks (ALL/ Folder / One / Random) Previous track / Fast rewind ** Next track / Fast forward ** *Use the buttons to scroll through the options.
  • Page 18: Remote Control

    REMOTE CONTROL Play / Pause / Automatic FM stations searching (FM only for BAF-1594BT) Manual FM station selection (only for BAF-1594BT) PLAY/PAUSE CHANNEL Equalization VOL- VOL+ Decrease / Increase volume PREV NEXT Previous track / Previous FM station (FM only for BAF-1594BT) Next track / Next FM station (FM only for BAF-1594BT) Direct track number selection...
  • Page 19 CONNECTIONS BAF-1594 MODE MIC 1 INPUT LEVEL LEVEL LINE INPUT LEVEL TREBLE LINE INPUT BASS SPEAKER OUT VOLUME CLIP POWER IMPEDANCE:8 OHM POWER AC110V 50/60HZ...
  • Page 20 CONNECTIONS BAF-1594BT MODE MIC 1 INPUT LEVEL LEVEL LINE INPUT LEVEL TREBLE LINE INPUT BASS SPEAKER OUT VOLUME CLIP POWER IMPEDANCE:8 OHM POWER AC110V 50/60HZ...
  • Page 21: Playback Options

    Press the MODE button on the module or on remote control to change to Bluetooth mode. Enter the Bluetooth options in the device that you want to pair. Search and select Steren BAF-1594. If the connection is successful, in the display will appear the “Connected!” legend.
  • Page 22: Playback Menu

    PLAYBACK MENU To enter the playback menu press MODE and use to scroll through the menu options. To select a menu option press the button Play Mode EQ Mode Folder Delete files Return...
  • Page 23: Specifications

    SPECIFICATIONS Input: 110-240 V ~ 50/60 Hz 350 W max Power output: 300 Wrms Nominal consumption: 300 W/h Stand by power consumption: Not applicable Amplifier Frequency response: 20 to 20 000 Hz THD: 0.1% Woofer Diameter: 38 cm (15”) Impedance: 8 ohms Power output: 250 W Coil diameter: 60 mm (2,37”) Magnet: 1 410 g (50 Oz)
  • Page 24: Warranty

    2. If the product is in the warranty time, the company will repair it free of charge. 3. The repairing time will not exceed 30 natural days, from the day the claim was received. 4. Steren sell parts, components, consumables and accessories to customer, as well as warranty service, at any of the addresses mentioned later.
  • Page 26 www.steren.com...
