DIAMEX NixieCroN M4 Manual

Table of Contents

Download this manual

Assembly of the NixieCroN M4

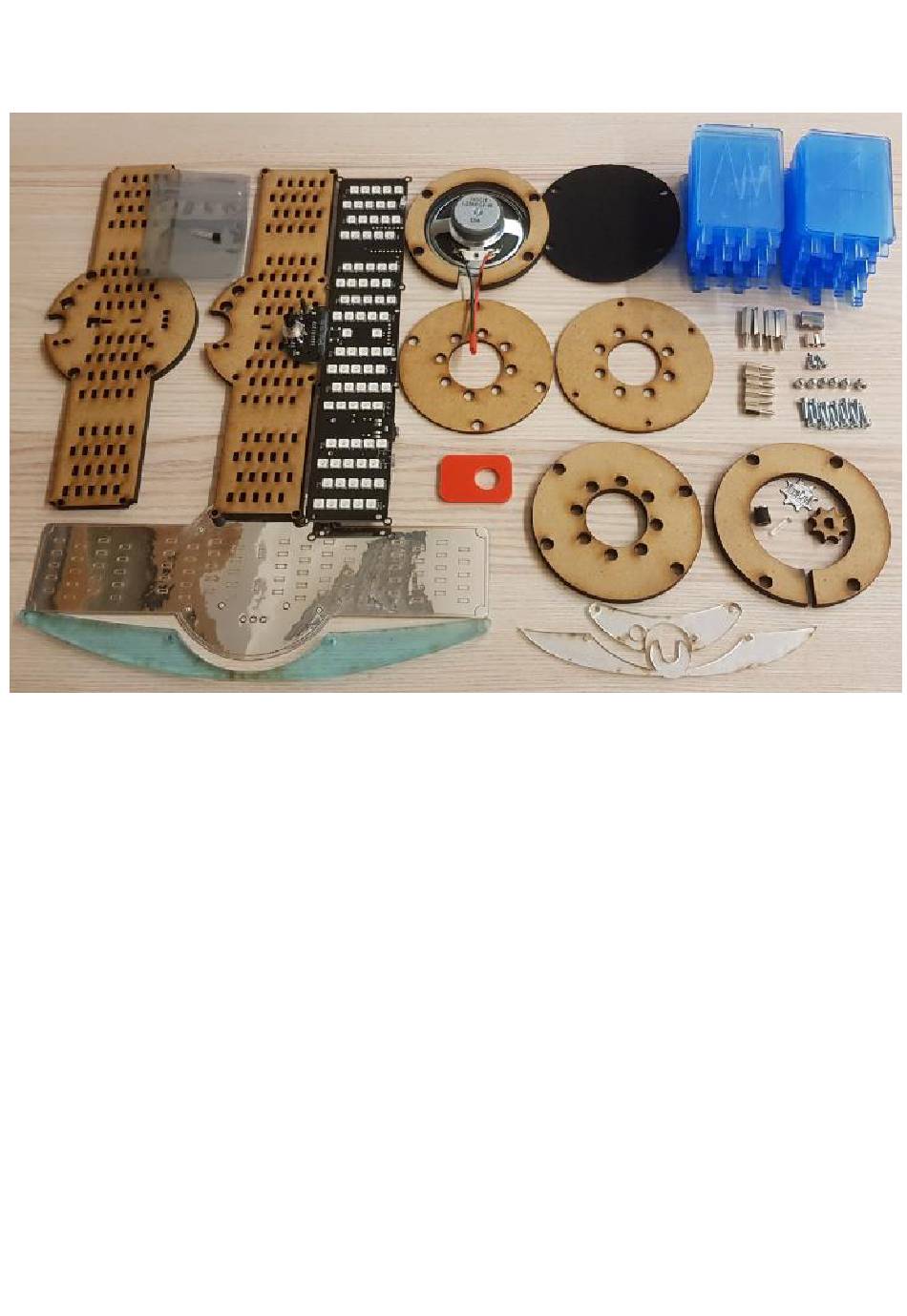

Please unpack all components. The following parts are included in the kit:

Mounting Material:

6 x capping nut M3

6 x spacer M3 8mm, internal thread and external thread

4 x spacer M3 18mm, internal thread and external thread

2 x spacer M3 8mm, internal thread on both sides

2 x spacer M3 12mm, internal thread on both sides

2 x screw Torx M3 6mm

12 (+1 as a reserve) x screw Torx M3 10mm

1 x knob MDF 6mm for encoder

1 x decoration for the knob, engraved ("NixieCroN"), self-adhesive (remove protective film!)

1 x knob aluminum / MDF for push-button

1 x acrylic light pipe

Electronic Components:

1 x motherboard NixieCroN M4, tested

1 x temperature sensor DS18B20

1 x loudspeaker

MDF Components:

3 x rings for the base MDF 6mm, several internal diameters

2 x rings for the base MDF 3mm

Table of Contents

Do you have a question about the NixieCroN M4 and is the answer not in the manual?

Page 1 1 x decoration for the knob, engraved (“NixieCroN”), self-adhesive (remove protective film!) 1 x knob aluminum / MDF for push-button 1 x acrylic light pipe Electronic Components: 1 x motherboard NixieCroN M4, tested 1 x temperature sensor DS18B20 1 x loudspeaker MDF Components:...
Page 2 1 x MDF board with eyelets 1 x MDF board without eyelets Acrylic Components: 2 x mirror element front (remove the protective film from each one!) 1 x decorative component, transparent, front (remove the protective film!) 40 x acrylic numbers and symbols (remove the protective film on both sides!) 1 x red tool for the removal of the protective film Further Components: 1 x chrome foil, laser-cut, self-adhesive...
Page 3: External Synchronization
If you would like to acquire a sync please contact your retailer. LED BASIC: The operating system of the NixieCroN M4 kits is based on LED BASIC. The 32 bit ARM-Cortex M0 controller on the motherboard can process the BASIC code quickly—about 10,000 lines per second.
Page 4 At the beginning of the source code the current manual of the file is included. Feedback: NixieCroN M4 is based on LED BASIC, an interesting and quickly useable free programming language. If you have programmed an interesting component, added a foreign language or implemented new features we would be happy about your feedback.
