ITC Elio VersiControl Install Instructions

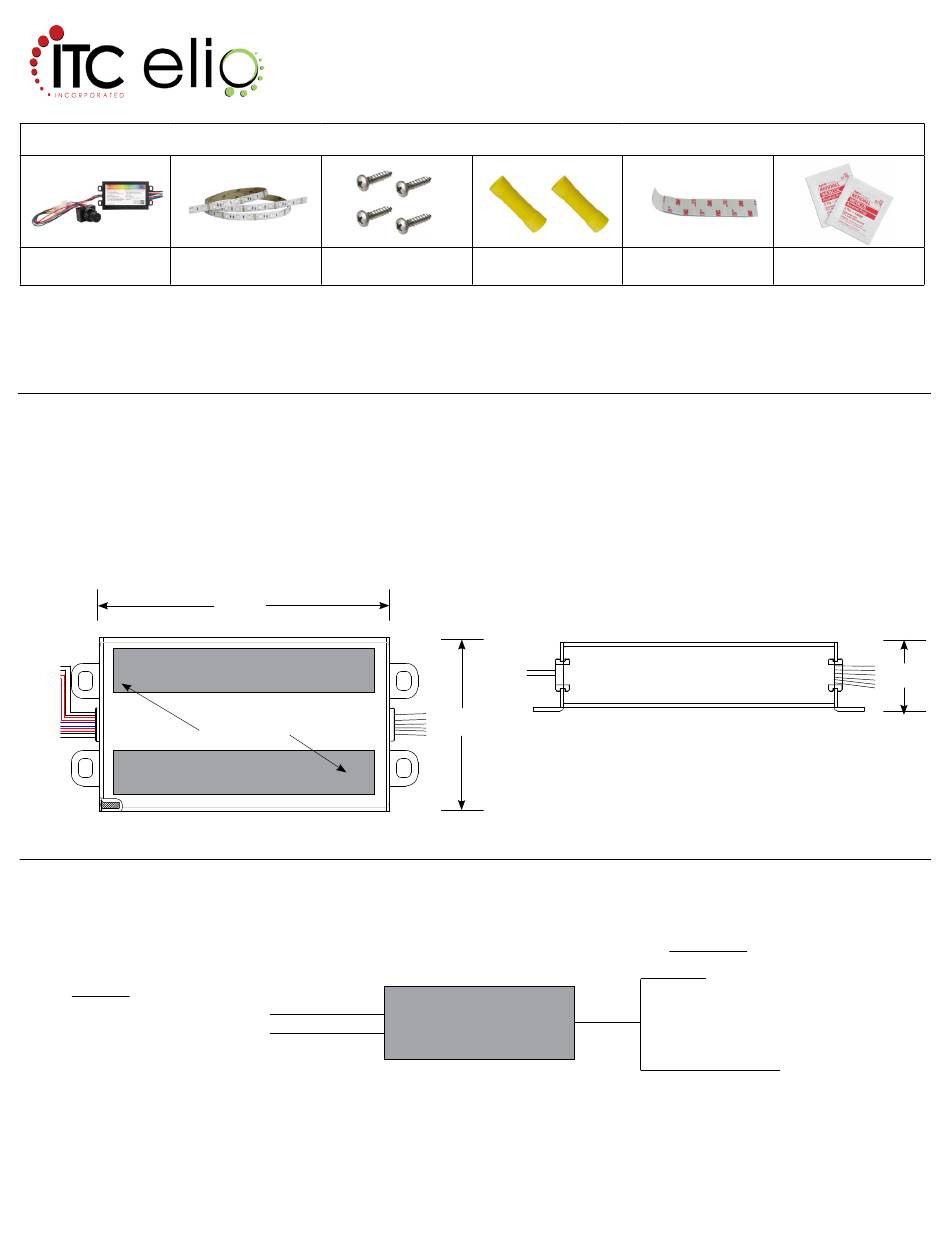

PARTS / TOOLS NEEDED:

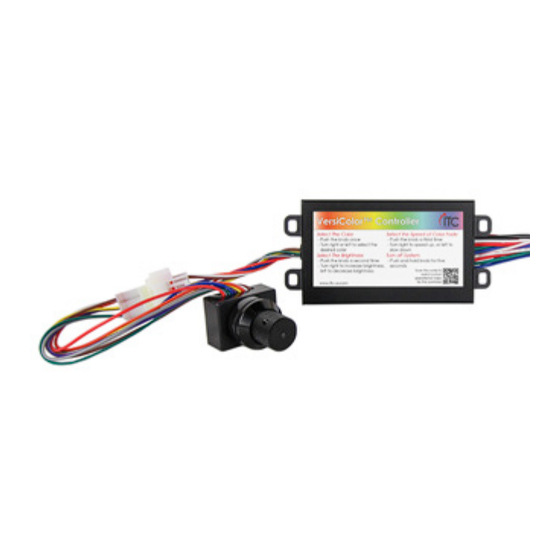

RGB Zone Controller
Safety Instructions
• Disconnect power before installing, adding or changing any component.
• To avoid a hazard to children, account for all parts and destroy all packing materials.
• Do not install any luminaire assembly closer than 6" from any combustible materials.
1.
INSTALL: Determine the installation location for your controller. Make sure to consider the size of the controller
(4.8"L x 2.9"W x 1.2"H) when determining your location. Note, it will require room for access and for wiring.
Once determined the controller can either be screwed in place or attached with double stick tape.
• If using double stick tape first clean the back of the module and the install location with alcohol wipes (not
provided). Place the double stick pads (not provided)on the back of the module as shown below. Remove
the paper and stick the module in place.
• If screwing the controller in place use the four 5x15mm stainless steel Phillips pan head screws provided.
12"
2.
WIRING DIAGRAM: Follow the wiring diagram below to wire the module to your system.
Inputs
Black - 12-24V DC IN (-)
Red - 12-24V DC IN (+)
(Max 16A)
Single Zone - 21060-XX
VersiControl RGB Zone Control Install Instructions
RGB Lighting
Mounting Screws x 4
(Varies)
2.9"
4.8"
Double
Stick Tape
4.8"
For warranty information please visit www.itc-us.com
230 E. Lakewood Blvd. • P.O. Box 8338 • Holland • MI • 49422-8338
Phone: 616-396-1355 • Fax: 616-396-1152 • www.itc-us.com • sales@itc-us.com • 03/08/17
(Part #'s: 21050-XX, 21060-XX, 21053-XX & 21056-XX)
Butt Splices
(not provided)
12"
1.2"
2.9"
Controller
Double Stick Tape -
Optional (not provided)
4.8"
13"
Outputs
Zone 1 -
(Max 16A)
(+) Red/White
(-) Red
(-) Green
(-) Blue
Alcohol Wipes
(not provided)
1.2"
1.6"
1.2"
2"
