Sneaker Dolly Deluxe Kit Owner's Manual

Handheld mobility system

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

OWNER'S MANUAL

Table of Contents

Need help?

Do you have a question about the Deluxe Kit and is the answer not in the manual?

Questions and answers

Summary of Contents for Sneaker Dolly Deluxe Kit

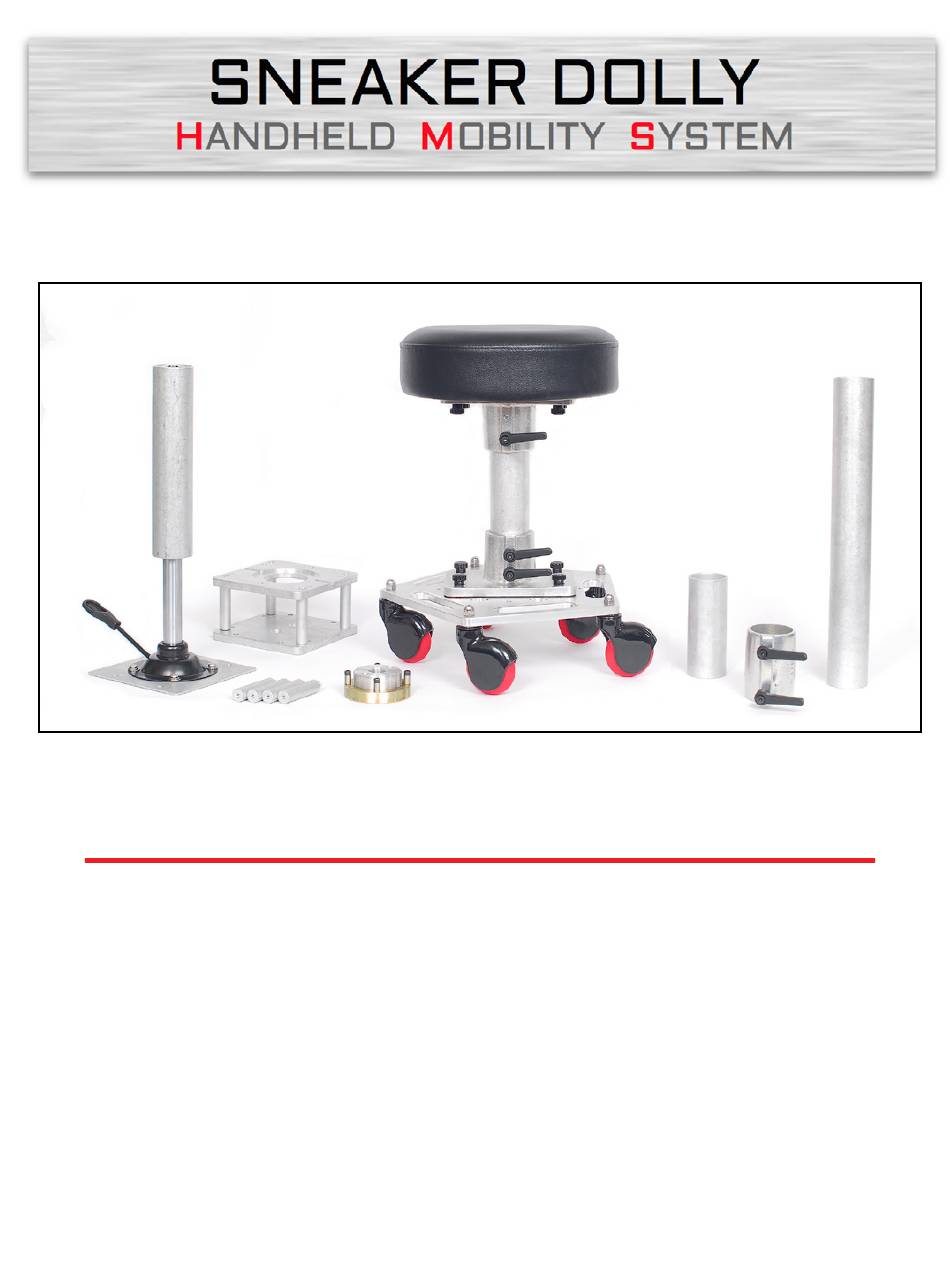

Page 1 OWNER’S MANUAL...
Page 2: Table Of Contents
Contents Sneaker Dolly Components ............. 1 Mitchell Kit Components ..............2 Pneumatic Kit Components ............3 Maintenance ..................4 Build 1 - Standard Modes ..............5 Build 2 - High Modes ................. 6 Build 3A - Low Mode 1 ..............7 Build 3B - Low Mode 2 ...............
Page 3: Sneaker Dolly Components
Sneaker Dolly Components (A) Sneaker Base w/ 5 wheels (B) Base Flange w/ 2 Kipp Handles (C) 4 - Fastening Knobs, 5/16”-18 thread (D) Seat (E) Seat Flange w/ 1 Kipp Handle (F) 4 - Fastening Knobs, 5/16”-18 thread (G) Pipe Coupler w/2 Kipp Handles (H) 18”...
Page 4: Mitchell Kit Components
Mitchell Kit Components (close up) (A) Mitchell Block Top Plate (E) Mitchell Thread (B) Mitchell Block Bottom Plate (F) Mitchell Castle Nut (C) 3 inch Riser Post (4 total) (G) 2 - 3/8” Screws for Mitchell Thread (D) 5/16” screws (6 total) (H) Keyway Screw...
Page 5: Pneumatic Kit Components
Pneumatic Kit Components (A) Pipe Housing w/ Gas Cylinder (B) Pneumatic Seat Plate w/ Adjustment Lever (C) 3 inch Riser Post (4 total)
Page 6: Maintenance
Introduction and Maintenance Congratulations on your purchase of the Sneaker Handheld Mobility System. We at Teknicam are confident that the Sneaker will give you many years of reliable use. Please contact us if you have any questions or problems with your Sneaker system and we’ll do our very best to provide a solution.
Page 7: Build 1 - Standard Modes
BUILD 1 - Standard Mode Build 1A 6” Centerpipe Build 1B 12” Centerpipe High Build 1C 18” Centerpipe...
Page 8: Build 2 - High Modes
BUILD 2 - High Mode The Pipe Coupler combines two pipes for specific heights or when 18” Center Pipe is not high enough. Build 2A 12” Centerpipe and 6” pipe joined with Coupler Build 2B 18” Centerpipe and 6” pipe joined with Coupler...
Page 9: Build 3A - Low Mode 1
BUILD 3A - Low Mode 1 Build 3A A 6” Center Pipe is used and the Base Flange is mounted inverted. This build places the seat 3 inches lower than the lowest Standard-mode build. * Note: It is necessary to temporarily remove the lower Kipp handle from the Base Flange in order for it to fit through the bottom of the Sneaker Base.
Page 10: Build 3B - Low Mode 2
BUILD 3B - Low Mode 2 In this build, the seat and seat flange rest firmly atop the Sneaker Base, but they are not directly attached. This is to achieve a super quick changeover. The seat can be lifted straight off the Base.
Page 11: Build 3C - Low Mode 3
Build 3C This build allows the seat to be FASTENED directly to the Sneaker Base. It’s also the lowest configuration of the Sneaker Dolly. 1/2 inch lower than Low Mode Build 4A. No pipes or flanges are used in this setup.
Page 12: Build 4 - Mitchell High Modes
BUILD 4 - Mitchell High Mode Build 4 By replacing the Sneaker Seat with the Mitchell Block, you now have a rolling Mitchell Base. There are 4 threaded 5/16” holes in the Mitchell Block Bottom Plate. Use these holes and 4 Knobs to attach the the Mitchell Block to the Seat Flange.
Page 13: Build 5 And 6 - Mitchell Low Modes
BUILD 5 and 6 - Mitchell Low Modes Build 5 This setup puts the height of the Mitchell base at 8” from the ground. Step 1: Remove both Pipe flanges from the Sneaker Base and the Mitchell Block. Step 2: Locate the 4 non-threaded holes in the Mitchell Block Bottom Plate.
Page 14: Build 7 - Mitchell Base Seat
BUILD 7 - Mitchell Mount Seat This setup adds a Mitchell Base to the Sneaker Seat. Mount it to a dolly boom arm, a dolly offset, a vehicle rig or any special configuration you can dream up. Mitchell Thread Castle Nut 5/16”...
Page 15: Build 8 - Pneumatic Mode
BUILD 8 - Pneumatic Mode Build 8 The Pneumatic Kit provides 6 inches of height range using the adjustment lever and gas lift. Remove the Seat Flange from the seat and replace with the Pneumatic assembly. There are four 3-inch riser posts included with the Pneumatic Kit.
