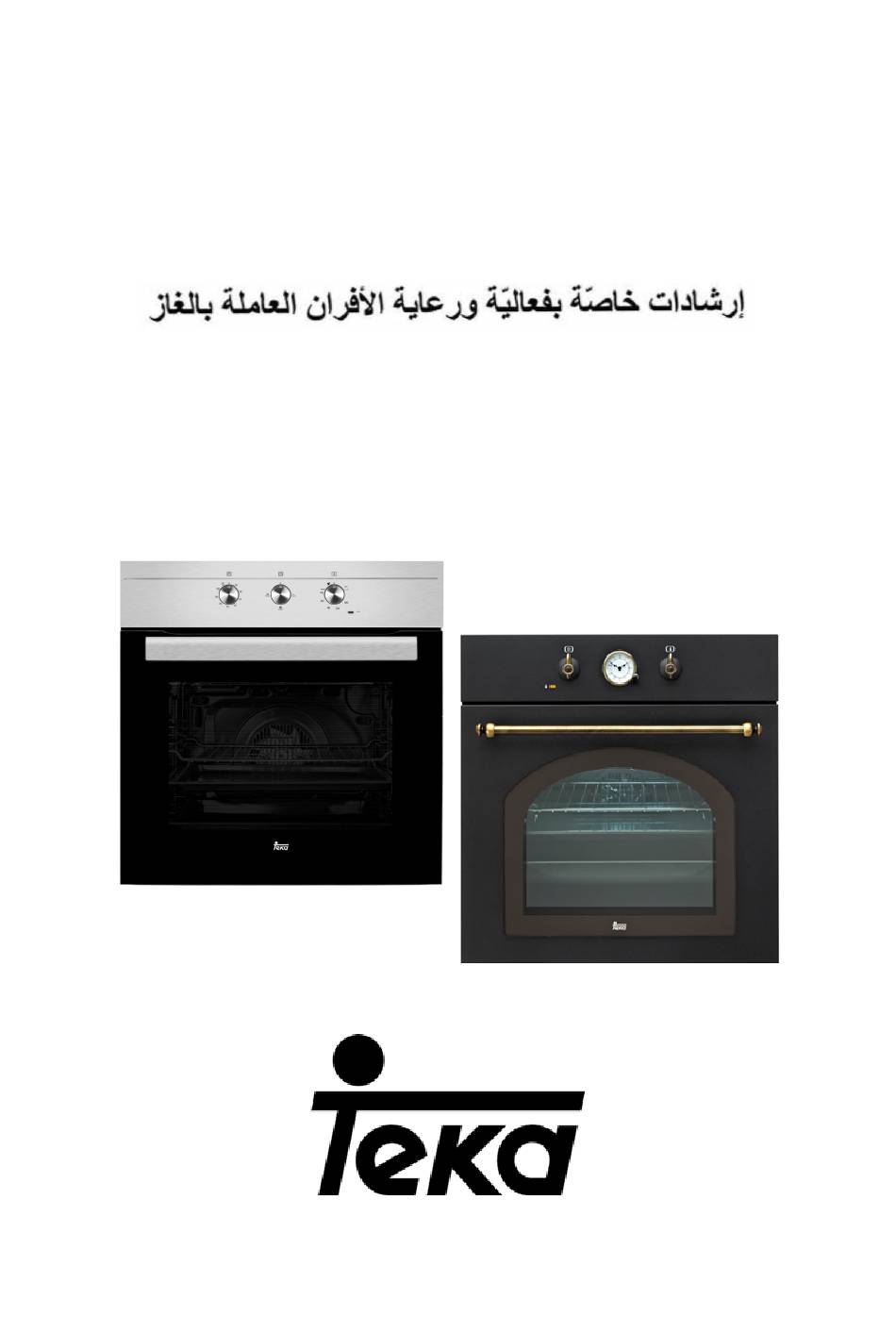

INSTRUCTION MANUAL
ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ
ΕΓΧΕΙΡΊΔΙΟ ΟΔΗΓΙΏΝ
HGS 740 SS 230 NAT / HGS 740 SS 230 LPG
HGR 650 230 NAT
P21220R05

Advertisement

loading
Need help?

Need help?

Do you have a question about the HGS 740 SS 230 NAT and is the answer not in the manual?

Questions and answers

Summary of Contents for Teka HGS 740 SS 230 NAT

  • Page 1 INSTRUCTION MANUAL ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ ΕΓΧΕΙΡΊΔΙΟ ΟΔΗΓΙΏΝ HGS 740 SS 230 NAT / HGS 740 SS 230 LPG HGR 650 230 NAT P21220R05...
  • Page 3: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS ............WARNINGS FOR PROPER TRANSPORTATION ....... INSTALLATION INSTRUCTIONS ..........ELECTRICAL CONNECTION ............ PRODUCT SPECIFICATIONS AND USAGE........ CONNECTING TO THE GAS SUPPLY........TECHNICAL SPECIFICATIONS ..........CLEANING AND MAINTENANCE ..........
  • Page 4 Dear Customer, We would like to thank you and congratulate you on your choice. This new product has been carefully designed and built using top quality materials, and meticulously tested to ensure that it meets all your culinary requirements. Please read this user manual thoroughly before you use this appliance.
  • Page 5: Safety Precautions

    SAFETY PRECAUTIONS WARNING : this appliance must be earthed. This appliance complies with all current Europcan safety legislation, however the producer do wish to emphasise that compliance does not remove the fact that the appliance surfaces will be come hot during use and head after operation.
  • Page 6 -Do not attempt to lift or move cooking appliances by pulling on any door or handle as this can cause damage. -Always use oven gloves when moving food in or out of the cavity. -Before any cleaning operation inside the oven, wait until it has cooled down.
  • Page 7: Warnings For Proper Transportation

    WARNINGS FOR PROPER TRANSPORTATION  Keep the original package of the appliance.  To move the appliance properly, use the original package with consideration to the markings on the package.  In cases where the original package could not be kept; Care for any possible measures to prevent any impact to the appliance.
  • Page 8: Installation Instructions

    that this product is disposed of correctly, the user contributes to preventing potential negative consequences for the environment and health. THE SYMBOL on the product or accompanying documentation indicates that this product must not be treated as domestic waste but must be delivered to a suitable collection point for the recycling of electrical and electronic equipment DISPOSAL MUST BE MADE in conformity with local laws on waste disposal.
  • Page 9 shown in the figure, secure the oven to the kitchen unit with the screws. Before Installation. Comments . To unpack the oven, pull the tab located on the lower part of the box and to move it, hold door handle . . A nichle is required in the kitchen unit as per the dimensions shown on the figure, pro-viding a minumun depth of 580 mm.
  • Page 11: Electrical Connection

    INSTALLATION LOCATION In order for the gas unit to work properly it is essentital that the air necessary for burning the gas flows into the area naturally. The installer must follow the safety norms for the country of installation. The flow of air into the area must come directly througy openings made in the exterior walls.
  • Page 12 Make sure that the voltage stated on te appliance rating plate is the same as the voltage in your home. The rating plate is on the lower front edge of the oven (visible with the door open.) If teh power supply cable needs replacing, make sure that it is replaced with a cable similar to the one provided by the Manufacturer (H05 RR-F type) and that installation is performed by Service Center or a...

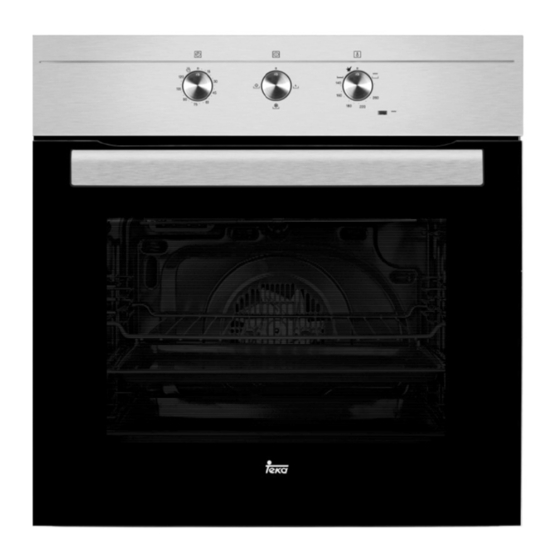

  • Page 13 Control Panel HGS 740 SS 230 NAT (Gas oven & Gas grill) HGS 740 SS 230 LPG (Gas oven & Gas grill) HGR 650 230 NAT (Gas oven & Gas grill) 1. On/Off (heating) indicator light 2. Oven light selector knob 3.
  • Page 14 in 15 seconds, keep the oven door open and wait for at least 1 minute before trying again the electric ignition. Note: When doing the electric ignition for the first time, it is quite normal having to try many times the electric ignition, because of the air inside the gas pipe.
  • Page 15 GRILL+ TURN SPIT This type of cooking allows you to brown the food. With the selector in this posi ons, the grill and spit automa cally operate together. OVEN LIGHT This allows the user to be able to see inside the oven easier. TURNSPIT This func on allows using the spit while gas oven is running to cook without grill.
  • Page 16 SPIT Slide the food onto the spit rod between the two forks, securing it in a stable position by means of the forks to prevent straining the motor. Fit the spit rod into the hole of the spit motor. and rest it on the support provided.
  • Page 17 ELECTRONICAL MINUTE MINDER On connecting the oven, you will notice that 12:00 appears on the clock and that a light begins to flash above the symbol. Pressing the"+" and"-" buttons the correct time can be set on the clock, which is subsequently stored and the flashing light goes out. MANUAL USE After setting the correct time, the oven is ready for use.
  • Page 18 WARNING FUNCTION 1) Press the MODE button until the signal above the symbol begins to flash. 2) Choose the time when you want the alarm to sound, pressing the"+" or"-" buttons. 3) Subsequently, the light will remain on indicating that the alarm is programmed.
  • Page 19: Connecting To The Gas Supply

    NOTES Use of gas cooking appliance produces heat and moisture in the room in which it is installed. ThE room must therefore be well ventilated by keeping the natural air vents clear (fig. 1) and by acti- vating the mechanical aeration device (suction hood or electric fan fig.
  • Page 20 The connection between the gas connection and thE pipe must be made in one of the two following ways (see the drawing on bottom page): -using a connector without a sealing ring (the oven connector is conical: ISO R 7) -interposing the metal sealing ring provided.
  • Page 21 CHANGING THE BURNER INJECTOR Make sure that the oven is not connected to the electric power supply. Open the oven door completely. Remove the burner by unscrewing its screws, then unscrew the injector and replace it. Reassemble the burner. Adjusting the minimum The oven thermostat is equipped with a by- pass for the minimum.
  • Page 22 Light the oven and let it burn at the maximum temparutere for at least 30 minutes. Turn the thermostat knob to the minimum and adjust the by-pass to the minimum so that you achieve a reduced by stable flame. Perform this operation with the oven door closed. Use a flat-head screwdriver on the by-pass screw.
  • Page 23: Technical Specifications

    TECHNICAL SPECIFICATIONS CLEANING AND MAINTENANCE CLEANING Always allow the appl'ance to cool down before cleaning to avoid a burn injury. Do not use caustic or abrasive agents, coarse wire wool or hard tools as these can damage the surface finishes. Normally, wiping with a soft cloth dampened with hot detergent is sufficient, but for stubborn marks the following is recommended: Vitreous Enamel Parts...
  • Page 24 DOOR GLASS Do not use any abrasive medium thet could cause damage. Remember that if the surface of the glass panel becomes scratched, this could lead to a dangerous failure. To facilitate cleaning, the door glass can be lifted out after removing the fixing screws.
  • Page 25 – Exchange the bulb and replace the lens. The replacement bulb must 300°C. These can be ordered from the Technical Service Department. CLEANING THE OVEN DOOR Depending on the oven model, you can remove the door to simplify its cleaning. To do so: Open the door fully Completely turn the two clips or insert small pins into holes (E)
  • Page 26 Close the door until it inserts into the two clips. Take hold of the door on both sides. Pull the oven door forward until it is totally free from the hinges (F). To re-assemble the door, proceed in reverse order.
  • Page 27 For hinges with clips; Open the clips as wide as possible by means of a screwdriver, when the oven is open. Hold the clips aside in your hand and remove the hinges (F) from their seats, as the mechanism is opened partially. Follow the reverse row to install the cover.
  • Page 28 Caution Please be careful the oven door is closed when the glass is removed. 4. Clean the inner glass and the oven door from the inside. 5. Insert the glass into the guideways on the top of the oven door(B) 6.
  • Page 29 Trouble Shooting PROBLEM SOLUTION The oven does not work Check the connection to the electrical cir cuit. Check the fuses and cur rent limiter of your installation. Ensure the clock is in the manual or programmed mode. Check the position of the function and temperature selectors The inside light of the oven does not work writ...
  • Page 30 Product fiche according to Commission Delegated Regulation (EU) No 65/2014 of 1 October 2013 and 66/2014 of 14 January 2014 Trade mark TEKA HGS 740 SS 230 NAT HGS 740 SS 230 LPG Model HGR 650 230 NAT 112,88 Energy Efficiency Index (EEI)
  • Page 31 Teka Chile S.A. China No.1506, Shengyuan Henghua Bldg. No.200 Wending Rd. Xuhui, Dist. 200030 Shanghai +86 2 153 076 996 Teka International Trading (Shanghai) Co. Ltd. Czech Republic V Holesovickách, 593 182 00 Praha 8 - Liben +420 284 691 940 Teka CZ S.R.O.
