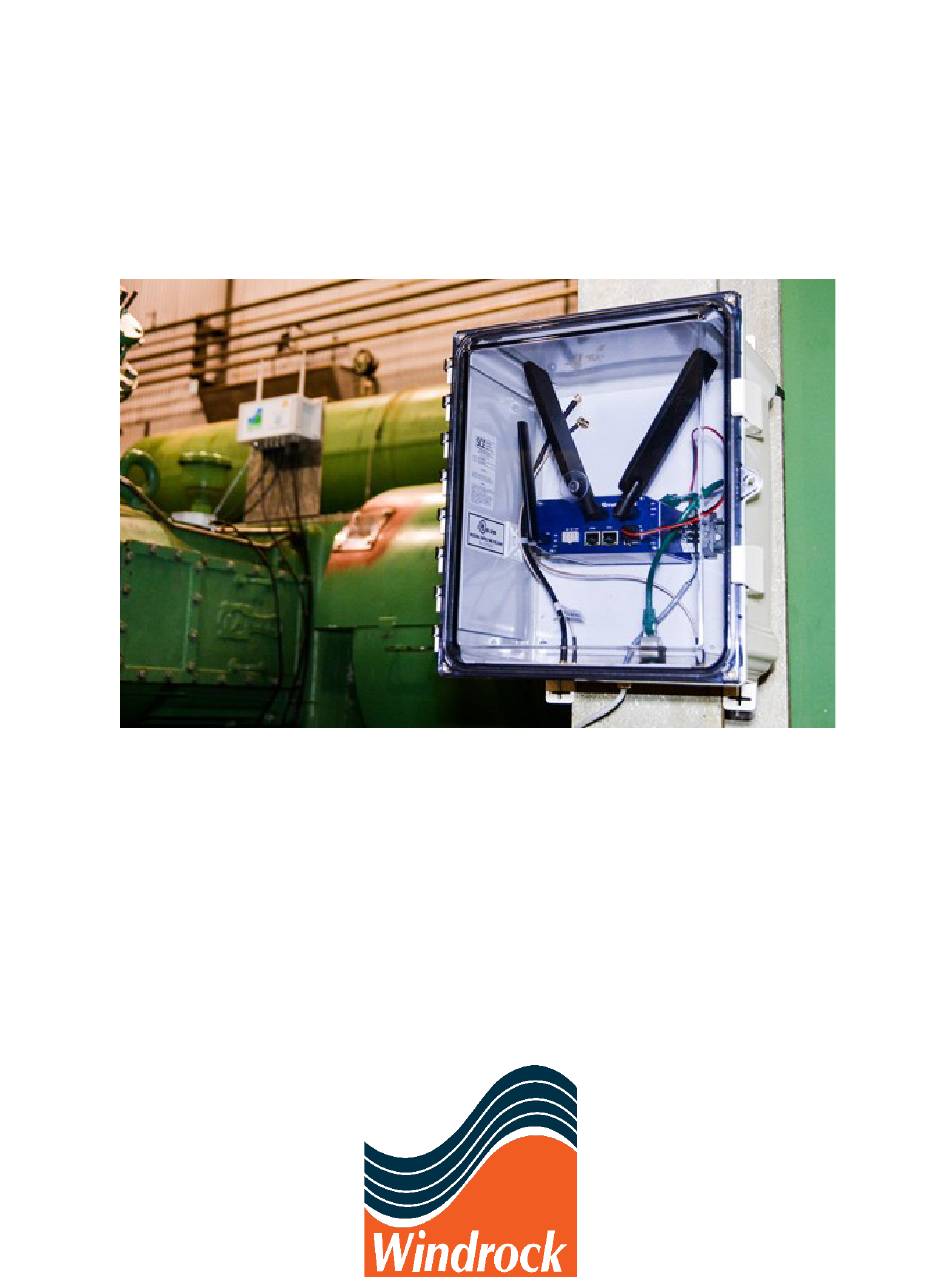

- Page 1 User Manual Enterprise Gateway...
-
Page 2: Doc No. A3930_Um Rev
When used in accordance with the instructions in this manual and the associated control drawings, Windrock Spotlight is approved for use in Class 1 Division 2 and unclassified areas. Failure to follow this manual may result in an explosion hazard when used in hazardous locations or improper operation. -
Page 3: Table Of Contents
When pressure washing, be cautious on length of time and intensity of spray on all parts of the system, including sensors and cabling. If parts of a Spotlight system were removed in order to perform cleaning and/or maintenance, contact Windrock Product Support at 865-330-1100 and ask for Spotlight Installation Support to verify operation. -
Page 4: A3930 Windrock Spotlight Gateway
This router utilizes two (2) 4G LTE Antennas to communicate to the cellular network. There is one (1) WiFi Antenna connection for direct communication to WiFi enabled Windrock devices, such as the Spotlight Controller. The unit operates on a low voltage DC supply, refer to the Spotlight Datasheet for further details. -
Page 5: Operation
Gateway is not required. When applying initial power to the Gateway, the installer should verify proper operation by calling Windrock and asking for Spotlight Installation Support. WARNING: If A3930 is not operating properly, then unit must be returned to Windrock for repair service. -
Page 6: Gateway Lte Antennas
Windrock salesperson or Windrock Customer Support. ADVERTISSEMENT – Cette section du manuel est uniquement à des fins de référence. Contacter votre vendeur Windrock ou Windrock service clientèle pour toute question concernant l'installation. 3.2 Hazardous Locations THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS 1, DIVISION 2, GROUPS A-D OR NON-HAZARDOUS LOCATIONS ONLY. -
Page 7: Installation Overview
14) To verify entire system operation, please call (865) 330-1100 and ask for Spotlight Installation Support. 15) Once configured, it is not necessary to interact with the system locally as its status and operation can be observed within the Cloud and accessed from Windrock Enterprise and downloaded to Windrock MD. -
Page 8: Gateway Mounting
The Gateway can be structurally mounted in two different ways. The first way (Option # 1, Figure 3-2) uses two slotted aluminum mounting bars that accept #10-32 screws. Windrock recommends using this mounting method. Attach the mounting bars to the enclosure using the flathead screws included with the plastic mounting feet (Option # 2, Figure 3-3). -
Page 9: Environment
Windrock Product Support at 865-330-1100 and ask for Spotlight Installation Support to verify operation. The Windrock Spotlight contains no user serviceable parts and requires no routine maintenance. Repair and support are provided by Windrock Inc. only.
