Summary of Contents for NKE BOX Wi-Fi

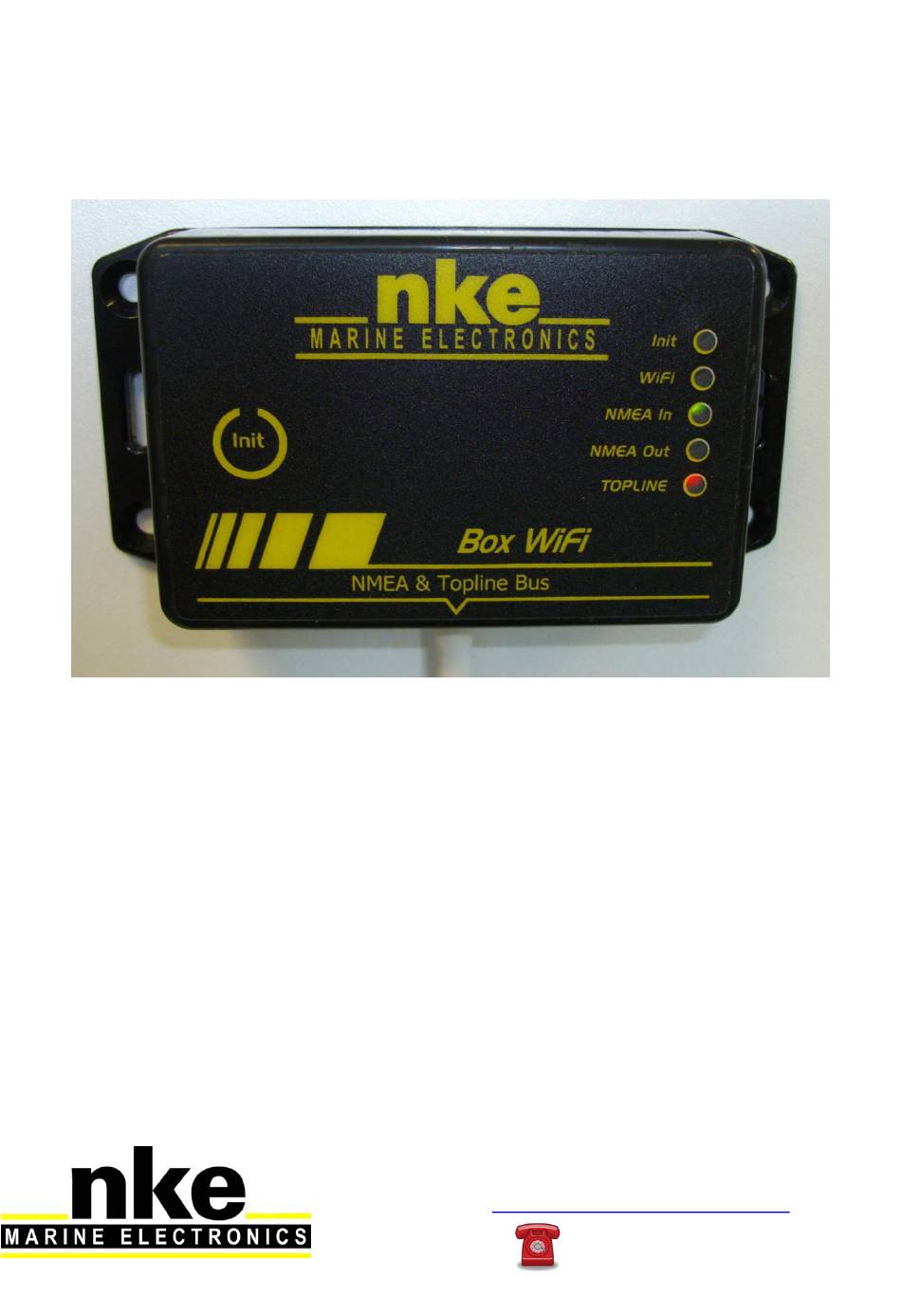

- Page 1 BOX Wi-Fi Product part number: 90-60-508-002 USER MANUAL AND INSTALLATION GUIDE Zi de Kerandré – Rue Gutemberg – 56700 – HENNEBONT – FRANCE www.nke-marine-electronics.com +33 297 365 685...
-
Page 2: Table Of Contents
OUNTING THE ..........................9 ONNECTION TO THE OPLINE NMEA .............................. 10 INPUT SETUP ..............................11 ETUP PROCEDURE SET A WIFI CONNECTION TO A SMARTPHONE .......... 11 TECHNICAL SPECIFICATIONS ............... 13 10. DIAGRAMME DE FLUX ..................14 33-60-059-002 Box WI-FI user manual... -
Page 3: Introduction
1. INTRODUCTION The nke Box Wi-Fi allows data to be exchanged between the Topline bus and wireless peripheral equipment such as smartphones, tablets and PCs. It features a NMEA 183 input to receive AIS data or other data coming from a NMEA 183 compatible instrument and a NMEA 183 output wire. - Page 4 B_PILOT YEAR MONTH F_HEADING F_APPARENT WIND ANGLE LAT_DEGMIN LAT_MILMIN LON_DEGMIN LON_MILMIN SPEED TO WP TARGET SPEED NEXT TACK HEADING OPTIMUM TWA TARGET VMG POLAR SPEED CMG OPTIMUM ANGLE VMG OPTIMUM ANGLE TARGET CMG TARGET VMG 33-60-059-002 Box WI-FI user manual...
-
Page 5: Wired Nmea Output
The following data is converted and sent via NMEA 183, depending on the relevant sensors being connected to the TOPLINE bus: Canaux Topline MAST ANGLE RUDDER ANGLE DEPHT TRIP LOG TOTAL LOG SPEEDO MAGNETIC HEADING TRUE HEADING CORRECTED AWA MAST ANGLE 33-60-059-002 Box WI-FI user manual... - Page 6 BEARING TO WP HEEL PITCH TARGET SPEED NEXT TACK HEADING OPTIMUM WIND ANGLE TARGET VMG TARGETPOLAR CMG OPTIMUM ANGLE TARGET CMG VMG OPTIMUM ANGLE TARGET VMG CURRENT DIRECTION SPEED CURRENT CURRENT DIRECTION SPEED CURRENT MAN OVER BOARD 33-60-059-002 Box WI-FI user manual...
-
Page 7: Wi-Fi Connection
NMEA data from the Topline bus. It can also forward NMEA data (i.e. bearing and distance to waypoint) to the Topline bus (providing the relevant channels are available) and to the NMEA output. The nke Box Wi-Fi creates a wireless access point 802.11b+g with the following parameters: SSID : NKE-xxxxxx ... -
Page 8: Using The " Init " Key
With this function, you can add NMEA channels coming from the WiFi connection without editing the configuration of the wired NMEA input. Press and hold 9 sec to perform a full reset and return to factory settings. 33-60-059-002 Box WI-FI user manual... -
Page 9: Installation
Mounting the Box WiFi Use Ø4mm screws WARNING: The connection of the nke Box Wi-Fi must be carried out before power to the unit is switched on. Connection to the Topline Bus 1. Run the nke Box Wi-Fi cable to the TOPLINE junction box in your system. -
Page 10: Nmea Input Setup
It will be directly echoed on the Wi-Fi and wired NMEA outputs. The NMEA input must be set-up to identify and save the NMEA sentences received from the connected instruments (GPS, PC, etc...). NMEA channels are created and 33-60-059-002 Box WI-FI user manual... -
Page 11: Setup Procedure
WARNING If there is no NMEA data coming in, this procedure gives a slave address to the nke Box Wi-Fi. In this case, the Interface is considered as a slave unit by the “master” display. 8. SET A WIFI CONNECTION TO A SMARTPHONE Connect the device to the WiFi Box network and use the data coming from your Topline bus. - Page 12 Type in the password (WPA indicated on the WiFi Box label) and press “Connect” Set the application you want to use (“nke Display” in this example) with the WiFi Box IP address “192.168.56.1”, Port “50000” and the protocol “UDP or TCP”...
-
Page 13: Technical Specifications
IP address: 192.168.56.1 Port: 50000 Protocol: TCP + UDP Environment IP54 protection (against dust and water splashing) Storage temperature: -20°C to +60°C Operating temperature: -10°C to +50°C Power cable Ø5,5mm, 4 wires + ground, 3m long. 33-60-059-002 Box WI-FI user manual... -
Page 14: Diagramme De Flux
DIAGRAMME DE FLUX Wifi INPUT NMEA OUTPUT NMEA Init Topline/NMEA BOX Wifi Topline Bus 33-60-059-002 Box WI-FI user manual... - Page 15 33-60-059-002 Box WI-FI user manual...
