(1) With Riser Card Expansion system integration, -
The Slim ODD+2.5"HDD Bay and/or 3.5" HDD Bay are no
longer installable due to space limitation in the smaller
dimensioned Mini-ITX Chassis.
(3) Insert your Expansion Card horizontally into the PCI Slot of
the Riser Card.
Fit back the Card Holder Bracket on the Rear Panel and, -
Use 1 pc of 6-32*L6 Hexagon Head Screw secure the Card
Holder Bracket on the Rear Panel.
ECE0528i/ECE0548i Mini-ITX Chassis
RISER CARD & FRONT 2.5" HDD ASSEMBLY

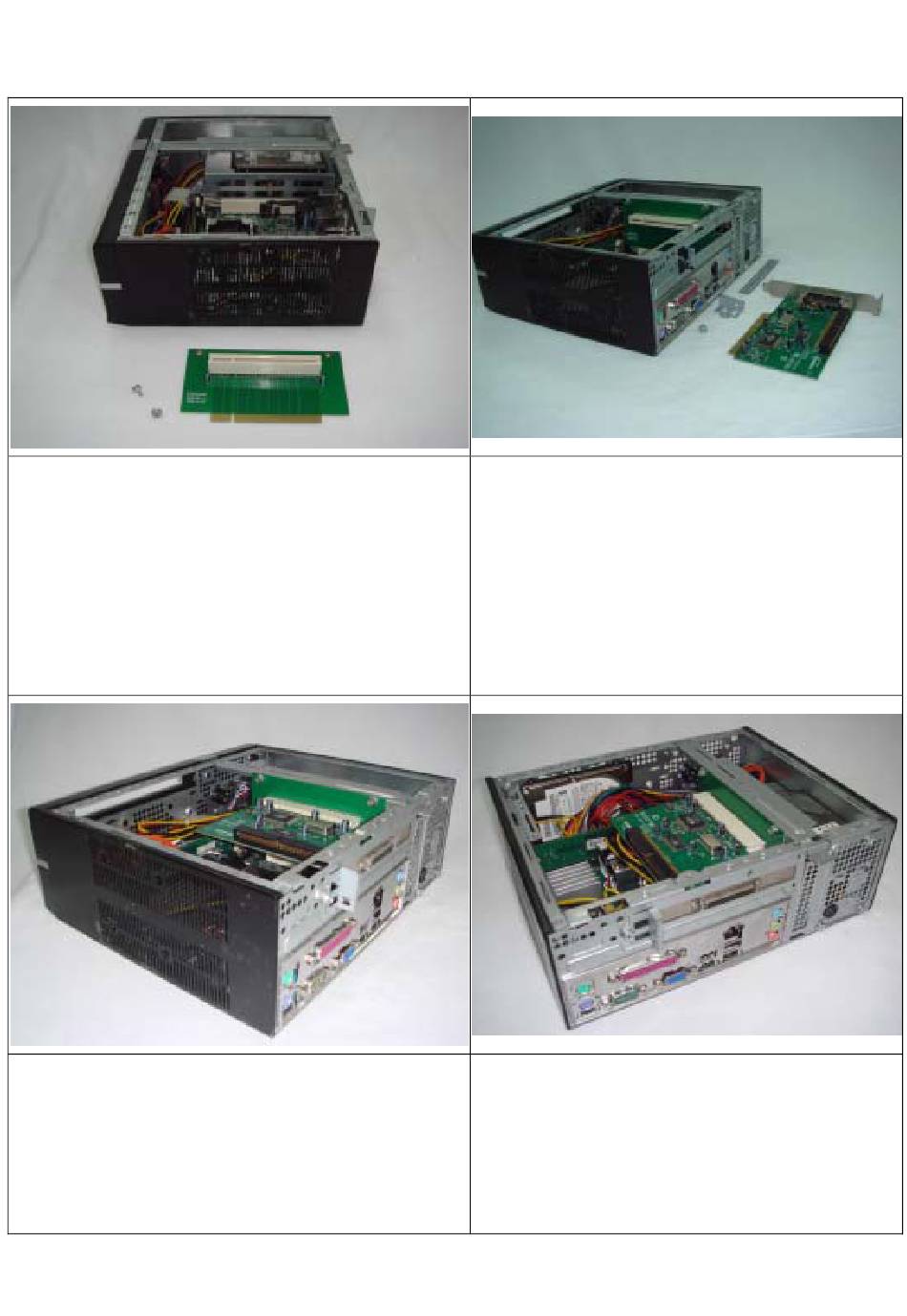

(2) To install the Riser Card, -
Break off and remove the 'Punched-but-not-perforated'
Slot Cover (For Standard PCI Card) from the Rear Panel,
Unscrew and take out the Card Holder Bracket.
Insert the Riser Card into the Motherboard's PCI Slot and,
Use 2 pcs of 6-32*L6 Hexagon Head Screws to secure the
Riser Card on the Center Bar.
(4) With Riser Card expansion system integration, -
1 pc of 2.5" HDD is installable on the inner side of the Steel
Front Panel.
Note: This installation of the 2.5" HDD would obstruct and
invalidate the Card Reader integration.
Advertisement
Summary of Contents for evercase ECE0528i
- Page 1 ECE0528i/ECE0548i Mini-ITX Chassis RISER CARD & FRONT 2.5” HDD ASSEMBLY (1) With Riser Card Expansion system integration, - (2) To install the Riser Card, - The Slim ODD+2.5”HDD Bay and/or 3.5” HDD Bay are no Break off and remove the ‘Punched-but-not-perforated’...
- Page 2 (5) To install the 2.5” HDD on the inner side of the Steel Front (6) Use 2 pcs of 6-32*L4 Flat Head Screws to secure the Panel – 2.5" HDD Fixture Bracket onto the Chassis Frame First, dismantle the Front Panel from the Chassis Frame. (Blocking and covering the Slim ODD’s Inlet).
- Page 3 (9) Use 4 pcs of M3*0.5*L8 Hexagon Head Screws included with EMI Clips to secure the 2.5" HDD on the Front Steel Panel from the front to complete the installation.
-
Page 4: Hdd Assembly
ECE0528i/ECE0548i Mini-ITX Chassis 3.5” HDD ASSEMBLY (1) Before assembling the systems, - (2) Use 2 pcs of 6#-32*L4 Flat Head Screws to – Dismantle the Front Panel from the Chassis Frame, Secure the 2.5” HDD Bracket onto the front steel panel of Unscrew and remove the 3.5”... -
Page 5: Standard Assembly
ECE0528i/ECE0548i Mini-ITX Chassis STANDARD ASSEMBLY 1. Before assembly, - 2. To install the bigger size FSP170-60SI/FSP220-6PLA Dismantle the Plastic Slim ODD Cover from the Front Panel, Power Supply, - Remove the Slim ODD+2.5” Bay (Or 3.5" HDD Bay) and the Break off and remove the excess Center Bar from the Main Chassis Frame. - Page 6 (5) Insert the Low Profile Expansion Card into the (6) Fit back the Center Bar and secure it on the Main Motherboard's Slot. Chassis Frame with 2 pcs of 6-32*L4 Flat Head Screws. (7) The Slim ODD Bay is designed with a detachable 2.5" HDD (8) Use 4 pcs of M2*0.4p*L3 Flat Head Screws to secure Bay to match multiple Motherboards’...
- Page 7 (9) The Slim ODD Bay can be installed with, or without the 2.5” (10) The 2.5" HDD Bay can be exempted for systems HDD Bay. Above photo shows – integration of D201GLYA/D945GCLF/D945GCLF2 Slim ODD+2.5”HDD Bay installed with 2.5" HDD and, - Motherboards.
- Page 8 (13) Seat the assembled Slim ODD Bay back into the case (14) When only the Slim ODD Bay is used, there is internal and, - space to allow the insertion of Low Profile Expansion Card. Use 2 pcs of 6-32*L4 Flat Head Screws to secure the Slim ODD Bay onto the Center Bar and Main Chassis Frame.
