Summary of Contents for Maritime CD110

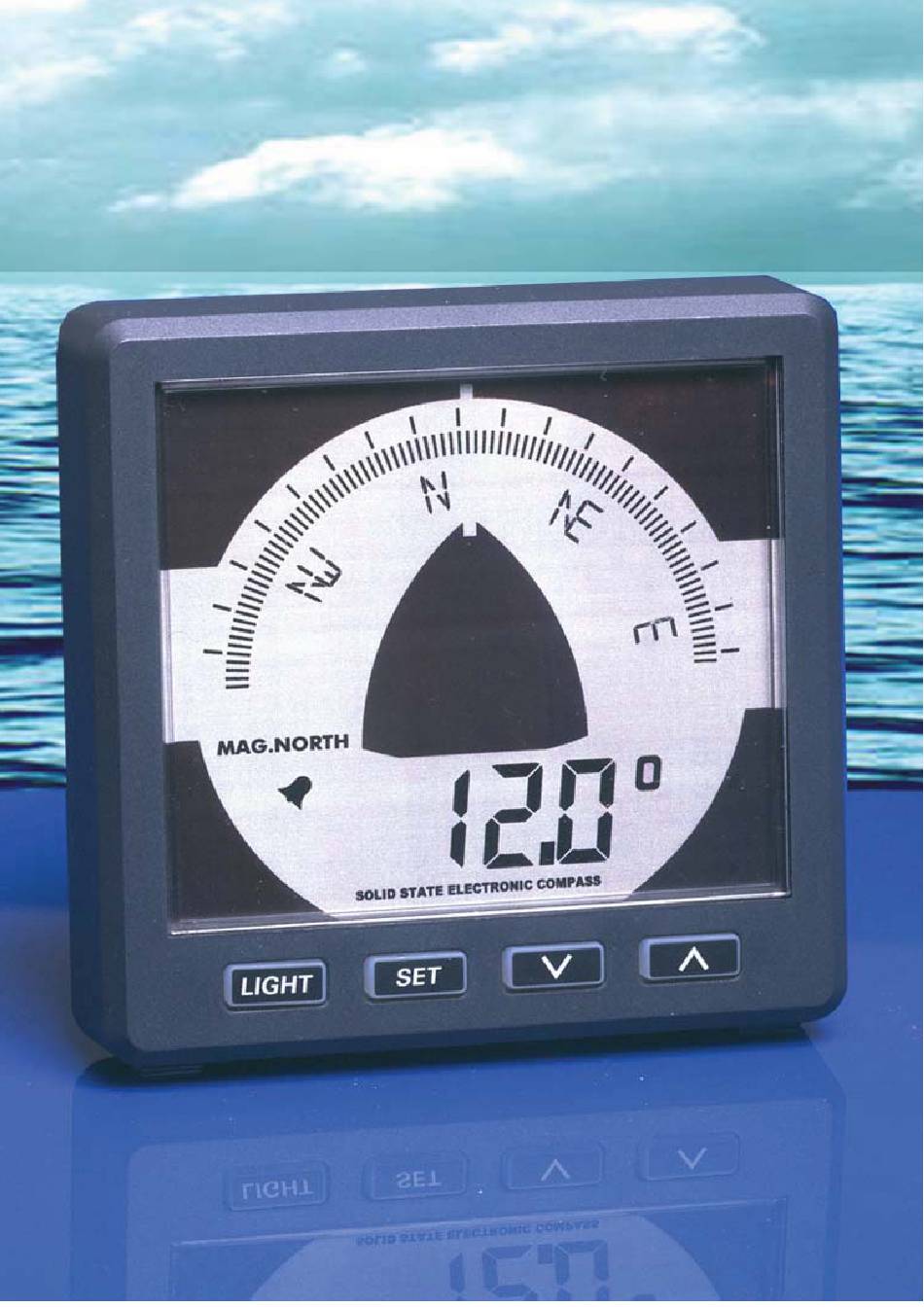

- Page 1 CD110 COMPASS display CD110-REV. 1.3 20-12-2004 Electronic Compass Indicator ECS1...
-
Page 2: Table Of Contents
4.1.9 Error messages ..................6 5 Installation ....................... 7 5.1 Mechanical......................7 5.2 Connections ...................... 7 6 CD110 Specifications ....................7 6 CD110 Specifications ....................8 6.1 Hardware ......................8 6.2 NMEA0183 messages ..................8 6.3 Bluetooth (optional) ................... 9 6.4 NMEA2000 (optional).................. -
Page 3: Introduction
1 Introduction This manual contains information about the operation, calibration and installation of the Compass Display ‘CD110’. The following information can be read from the CD110 display: x Heading on electronic compass rose x Heading on 7 segment display x True North or Magnetic North... -
Page 4: Working
DOWN buttons have an automatic repeat function. The buttons have a timeout of 1 minute. 2.2.1 Button sound On the release of a button you will hear a key sound. This sound can be switched off in the menu ‘Key Sound’ (ST4). Compass Display CD110... -
Page 5: Operating
This can be done in setting is chosen the brightness of the Variation menu (ST8). backlight will be set by a voltage applied to the backlight pin on the connector. See ‘Connections’ for pin information. Compass Indicator CD110... -
Page 6: Menu
Use the up/down buttons to change the value. x Press SET short to enter the selected value or x Press the Light button to reset the value to default (2) or x Keep SET pressed for two seconds to exit to the default view. Compass Display CD110... -
Page 7: Layout (St3)
This Calibration menu can only be used in combination with the LCS, ECS1 or ECS3 compass. Press SET and use the up button to select the ST6 menu. Press SET to enter the menu and now you can choose Auto or Manual by pressing the up/down buttons. Compass Display CD110... -
Page 8: Align (St7)
To exit the menu press SET once or keep SET pressed for two seconds to exit to the default view. 4.1.9 Error messages No data input : The CD110 has not received data for more than 5 seconds, Please check the connections No response : No response after send a command: x Check the connections or another not fully compatible compass is connected. -
Page 9: Installation
If you need to cut and rejoin the cable be sure to connect colour to colour. The CD110 display is suitable for both 12 and 24 Volt DC. Connect the power supply as per diagram. -
Page 10: Cd110 Specifications
110 x 110 x (24,5 + 31,5mm) Weatherproof Sealed: according to IP66 Alarm Output: Open collector, max. 100mA 6.2 NMEA0183 messages The CD110 uses standard NMEA0183 messages but also some special calibration commands and messages. Receive standard message: $HCHDG,X.X,Y.Y,v,Z.Z,Q*CC<13><10> = compass heading Y.Y,v = not used... -
Page 11: Bluetooth (Optional)
0=True 1=Magnetic 2=Error 3=Null 6. Reserved bits variable 6.5 Certifications Maritime Navigational and Radiocommunication Equipment & Systems : according to IEC 60945 EMC : Conducted/Radiated Emmission : according to IEC 60945-9 Conducted/Radiated Immunity : according to IEC 60945-10 Safety : Dangerous voltage, etc. :... -
Page 12: Overall Dimensions
7 Overall dimensions 7.1 Drill pattern (included on separate sheet) 7.2 Outside dimensions Compass Display CD110... -
Page 13: Wiring Diagrams
OUTPUT NMEA0183-out NMEA0183-INA INPUT NMEA0183-INB 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Backlight Dim input (+) SHIELD NMEA in - NMEA in + fuse 12 / 24 V Compass Display CD110... -
Page 14: Optional Connections
Press set to view: Compass type, interface, software version. 8.3.1 Display reset Press SET to reset the display to factory settings. 8.3.2 Compass reset Press SET to reset the compass to factory settings. 8.3.2 Close menu To exit the service menu press SET. Compass Display CD110...
