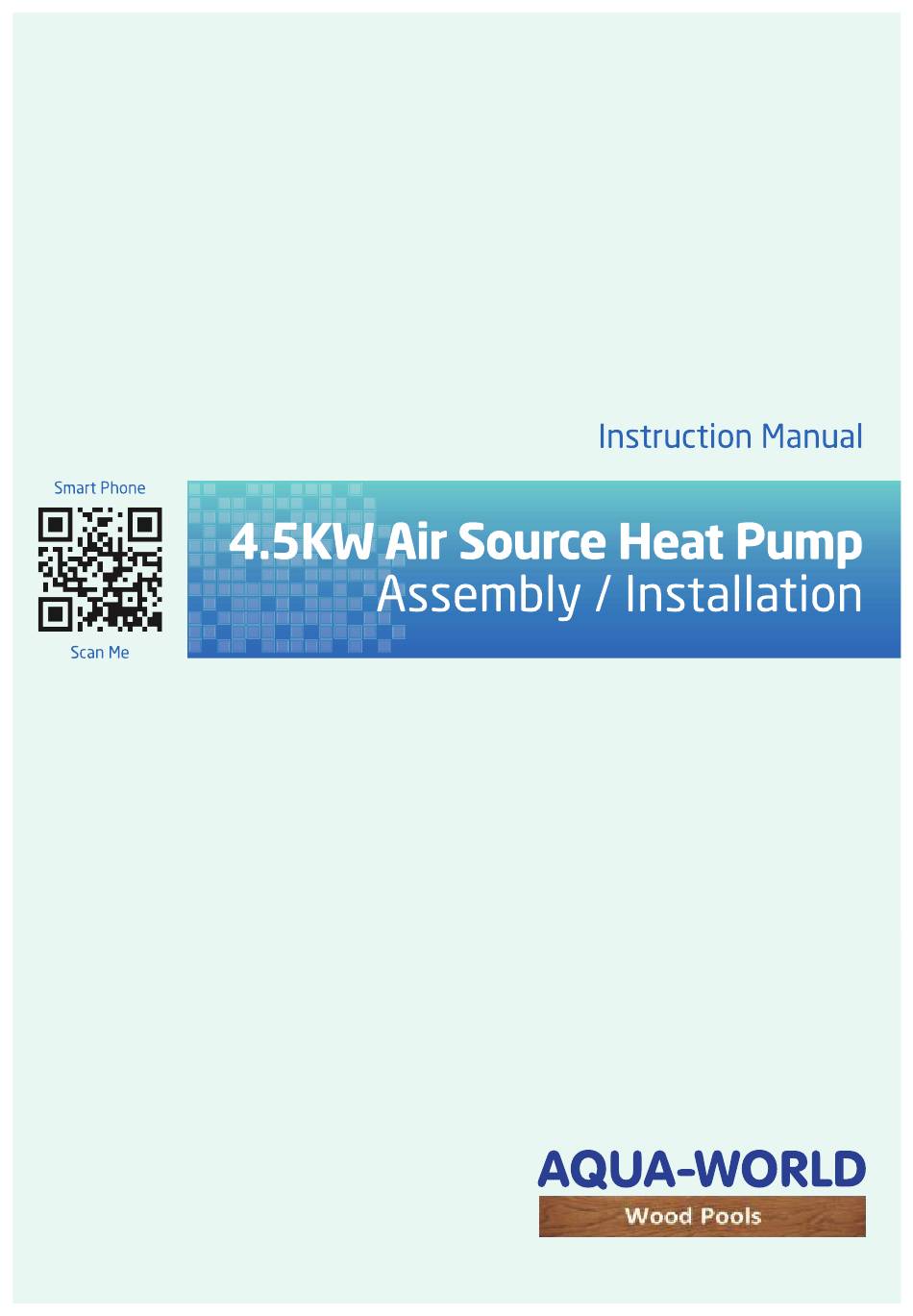

- Page 1 www.aquaworldwoodpools.co.uk...
-
Page 2: Table Of Contents
CONTENTS 1. Preface 2. Specifications 2.1 Performance Data of Swimming Pool Heat Pump Unit 2.2 Dimensions for Swimming Pool Heat Pump Unit 2.3 How to disassemble the electric box cover 3. Installation and Connection 3.1 Installation of System 3.2 Swimming Pool Heat Pumps Location 3.3 How Close to Your Pool? 3.4 Swimming Pool Heat Pumps Plumbing 3.5 Swimming Pool Heat Pumps Electrical Wiring... -
Page 3: Preface
1. PREFACE In order to provide our customers with quality, reliability and versatility, this product has been made to strict production standards. This manual includes all the necessary information about installation, debugging, discharging and maintenance. Please read this manual carefully before you open or maintain the unit. The manufacture of this product will not be held responsible if someone is injured or the unit is damaged, as a result of improper installation, debugging, or unnecessary maintenance. -
Page 4: Specifications
2.SPECIFICATION 2.1 Performance data of Swimming Pool Heat Pump Unit *** REFRIGERANT : R410A UNIT PASRW020 PASRW010 PASRW015 Heating capacity 3.53 7.55 5.03 Btu/h (24/19 12002 25768 17102 Heating Power Input 0.82 1.56 1.03 Running Current 3.62 7.17 4.58 Heating capacity 6.12... -
Page 5: Performance Data Of Swimming Pool Heat Pump Unit
2.SPECIFICATION 2.1 Performance data of Swimming Pool Heat Pump Unit *** REFRIGERANT : R410A UNIT PASRW030 Heating capacity (24/19 Btu/h 34000 Heating Power Input 1.95 Running Current 8.92 Heating capacity 8.02 Btu/h (15/12 27262 Heating Power Input 1.80 Running Current 8.24 Power Supply 230V /50Hz... -
Page 6: Dimensions For Swimming Pool Heat Pump Unit
2.SPECIFICATION 2.2 The dimensions for Swimming Pool Heat Pump Unit PASRW010 Water outlet Water inlet... - Page 7 2.SPECIFICATION 2.2 The dimensions for Swimming Pool Heat Pump Unit PASRW015 Water outlet Water inlet...
- Page 8 2.SPECIFICATION 2.2 The dimensions for Swimming Pool Heat Pump Unit PASRW020/PASRW030 Water outlet Water inlet...
-
Page 9: How To Disassemble The Electric Box Cover
2.SPECIFICATION 2.3How to separate and install the electric box cover the electric Pull up box cover Pull on the electric box cover Attention: 1. Please be careful when handle with the electric box cover in case of damage; 2. During installation to buckle matched with the clamping groove of the electric box cover, so that it can cover the electric box cover. -
Page 10: Installation And Connection
3.INSTALLATION AND CONNECTION 3.1 Installation illustration Valve Chlorinator cell Water outlet Water supply Pool Water inlet Sand filter Water pump (or other type filter) Installation items: The factory only provides the main unit and the water unit; the other items in the illustration are necessary spare parts for the water system ,that provided by users or the installer. -
Page 11: Swimming Pool Heat Pumps Location
3.INSTALLATION AND CONNECTION 3.2 Swimming Pool Heat Pumps Location The unit will perform well in any outdoor location provided that the following three factors are presented: 1. Fresh Air - 2. Electricity - 3. Pool filter piping The unit may be installed virtually anywhere outdoors. For indoor pools please consult the supplier. -
Page 12: Swimming Pool Heat Pumps Plumbing
3.INSTALLATION AND CONNECTION 3.4 Swimming Pool Heat Pumps Plumbing The Swimming Pool Heat Pumps exclusive rated flow titanium heat exchanger requires no special plumbing arrangements except bypass(please set the flow rate according to the nameplate). The water pressure drop is less than 10kPa at max. Flow rate. Since there is no residual heat or flame Temperatures, The unit does not need copper heat sink piping. -
Page 13: Swimming Pool Heat Pumps Electrical Wiring
3.INSTALLATION AND CONNECTION 3.5 Swimming Pool Heat Pumps Electrical Wiring NOTE: Although the unit heat exchanger is electrically isolated from the rest of the unit, it simply prevents the flow of electricity to or from the pool water. Grounding the unit is still required to protect you against short circuits inside the unit. -
Page 14: Usage And Operation
4. USAGE AND OPERATION 4.1 Function of wire controller LED display Auto indicator light AUTO Heating indicator light Cooling indicator light Turn on indicator light Timer on Timer off indicator indicator Key function Key name ON/OFF Press this key to turn on/off the unit MODE Mode Press this key to change the working mode... -
Page 15: Usage Of The Controller
4. USAGE AND OPERATION 4.2 Usage of wire controller 4.2.1 Turn ON/OFF the unit When the unit is off, press the key 0.5s to turned on the unit; When the unit is on, press the key 0.5s to show down the unit; Cooling System Temp. - Page 16 4. USAGE AND OPERATION 4.2.4 Setting temperature In the main interface press and the current mode target-temperature flashes, then press to increase the temp.value, or press to decrease it. Press MODE can save setting parameter and back to the main interface Press can not save setting parameter but back to the main interface Attention If there is no operation for 5s system would remember parameter setting and back to...
- Page 17 4. USAGE AND OPERATION 4.2.5 Clock setting In the main interface press CLOCK twice Hours start to flashing and press to increase value or press to decrease value and press CLOCK to setting At the same time, minute start to flashing press to increase value or press to decrease value and press...
- Page 18 4. USAGE AND OPERATION 4.2.6 Timer setting (1) You can set the timer of unit on In the on or off state, Press "TIME ON" to enter timer-on interface Press "TIME ON" and time-hour-bit flashing Press " or " " to change the hours value Press "TIME ON" to save hours At the same time, minutes-bit flashing Press "...
- Page 19 4. USAGE AND OPERATION (2) The setting of cancelling the timer If there is no need to set timer on or timer off, the timer setting can be cancelled. At unit on or off state, press TIME On to enter timer-on setting interface, then press to cancel the timer-on, at this timer, the timer-on light turn off.
-
Page 20: Parameter Table
4. USAGE AND OPERATION 4.2.8 Malfunction display There will be malfunction code showing on the controller screen when relative malfunction occurs. You can refer to the malfunction table to find out the failure cause and solution. For example Water inlet temp. Sensor failure AUTO 4.3 Parameter table Default... -
Page 21: Maintenance And Inspection
5. MAINTENANCE AND INSPECTION 5.1 Maintenance Check the water supply device and the release often. You should avoid the condition of no water or air entering into system, as this will influence unit's performance and reliability. You should clear the pool/spa filter regularly to avoid damage to the unit as a result of the dirty of clogged filter. -
Page 22: Appendix
6.APPENDIX 1.Connection of PCB illustration OUT1 OUT2 CN19 AI06 OUT3 AI05 OUT4 AI04 OUT5 AI03 AC-N AI02 AI01 CN1 CN2 CN16 Connections explanation Meaning Symbol Compressor of system1 220-230VAC OUT1 Water pump 220-230VAC OUT2 OUT3 4way valve 220-230VAC OUT4 Fan motor 220-230VAC OUT5 No use AC-N... - Page 23 6.APPENDIX Caution & Warning 1. The unit can only be repaired by qualified installer centre personnel or an authorised dealer. for Europe market 2. This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 24 6.APPENDIX (2) Cable specification Single phase unit Nameplate Creepage protector Signal line maximum Phase line Earth line current No more 1.5mm 30mA less than 0.1 sec 2 1.5mm than 10A 2.5mm 30mA less than 0.1 sec 10~16A 2 2.5mm 30mA less than 0.1 sec 16 ~25A 2 4mm 30mA less than 0.1 sec...
- Page 25 Code 20160606-0006...
