Trendway Intrinsic FSTD Open Hutch Installation Instructions

Intrinsic FST D
Open Hutch
INSTALLAT ION INST RUCT IONS

TOOLS REQUIRED:

• #2 Phillips Screw Driver or Power Driver
Note: Two people are required to assemble
the hutch.
NOTE: A fl oor support element (end panel,
C-Leg, storage unit, etc) is required directly
below each end panel of the hutch.
INSTALLATION INSTRUCTIONS:
1. Unpack all components and place on clean,
non-marring surface.
2. Install the connector bolts into the pre-drilled
holes on each side panel and the top.
(FIG. 1)
3. Install (2) wood dowels into the back panel.
(FIG.2)
4. Assemble a side panel to the back by
inserting the connector bolts into the
corresponding holes on the back. (FIG. 3)
Tighten the cam locks by turning clockwise.
(FIG. 4)
5. Assemble the other side panel (see step 4).
6. Stand the unit up and install the top by
inserting the connector bolts into the
corresponding holes. (FIG. 5) Tighten the
cam locks. (FIG. 4)
7. Test fi t the Hutch in the desired location.
8. Note the location of the end panels on the
worksurface.
9. Remove hutch unit.
10. Place 12" of double sided tape on the
worksurface where the end panels will be.
Keep the backing on until just before the
hutch is put in place.
11. Remove tape backing. Carefully lift Hutch
and set on the tape. (FIG. 6)
12. Place (4) shelf pins per shelf in the desired
location(s) and place shelf on pins. (FIG. 7)
07/30/09

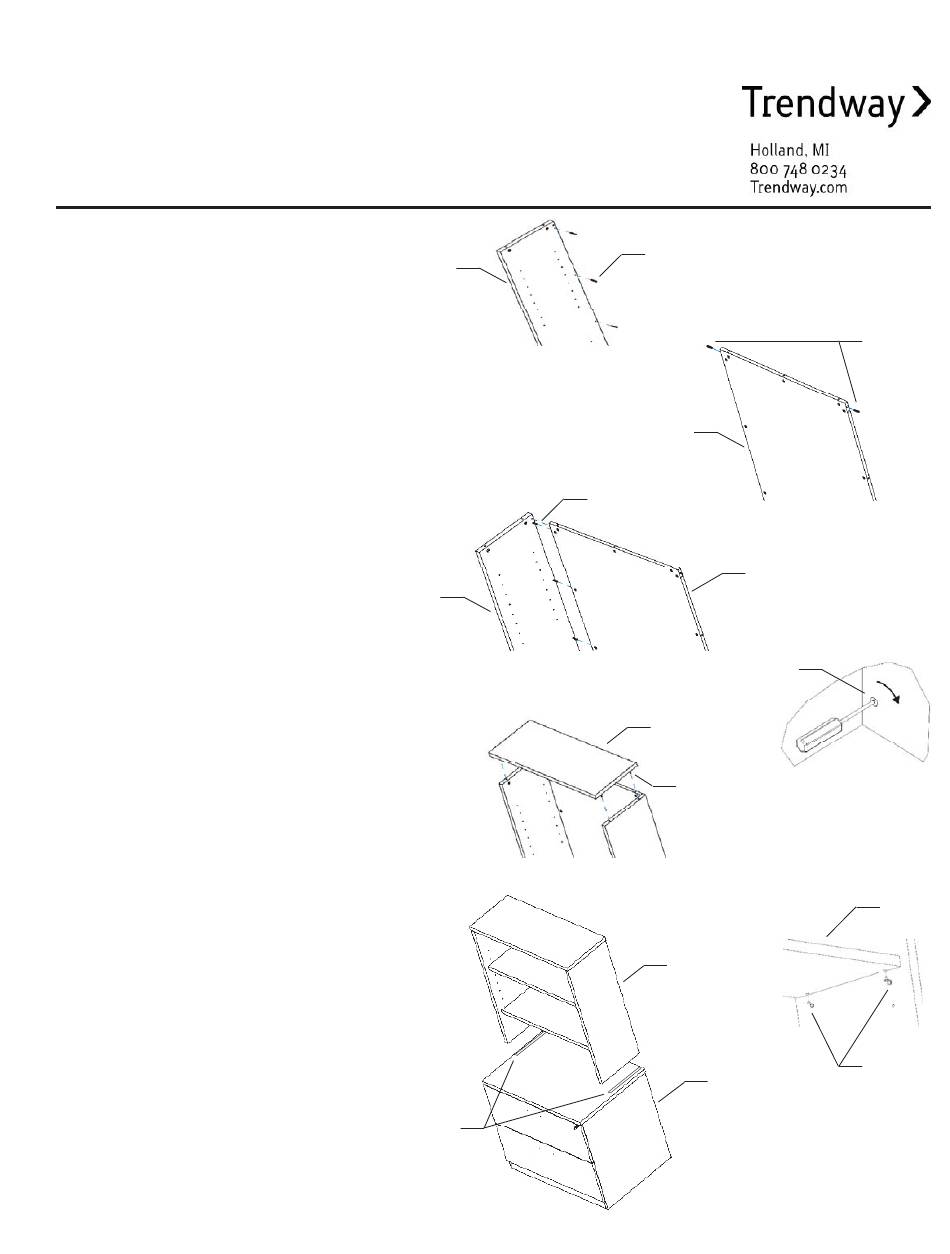

FIG. 1
Side
•
Panel
FIG. 3
Side
•
Panel
FIG. 5
FIG. 6
•
Double
Side
Tape
Page 1 of 2
Connector
Bolts
•
•
Back
Panel
Connector
Bolts
•
•
Top
•
•
Connector
Bolts
Hutch
•
End
•
Panel
•
FIG. 2
Wood
Dowels
•
•
Back
Panel
FIG.
Cam
Lock
•
FIG.
Shelf
•
•
•
Shelf
Pins
INS429, REV D
