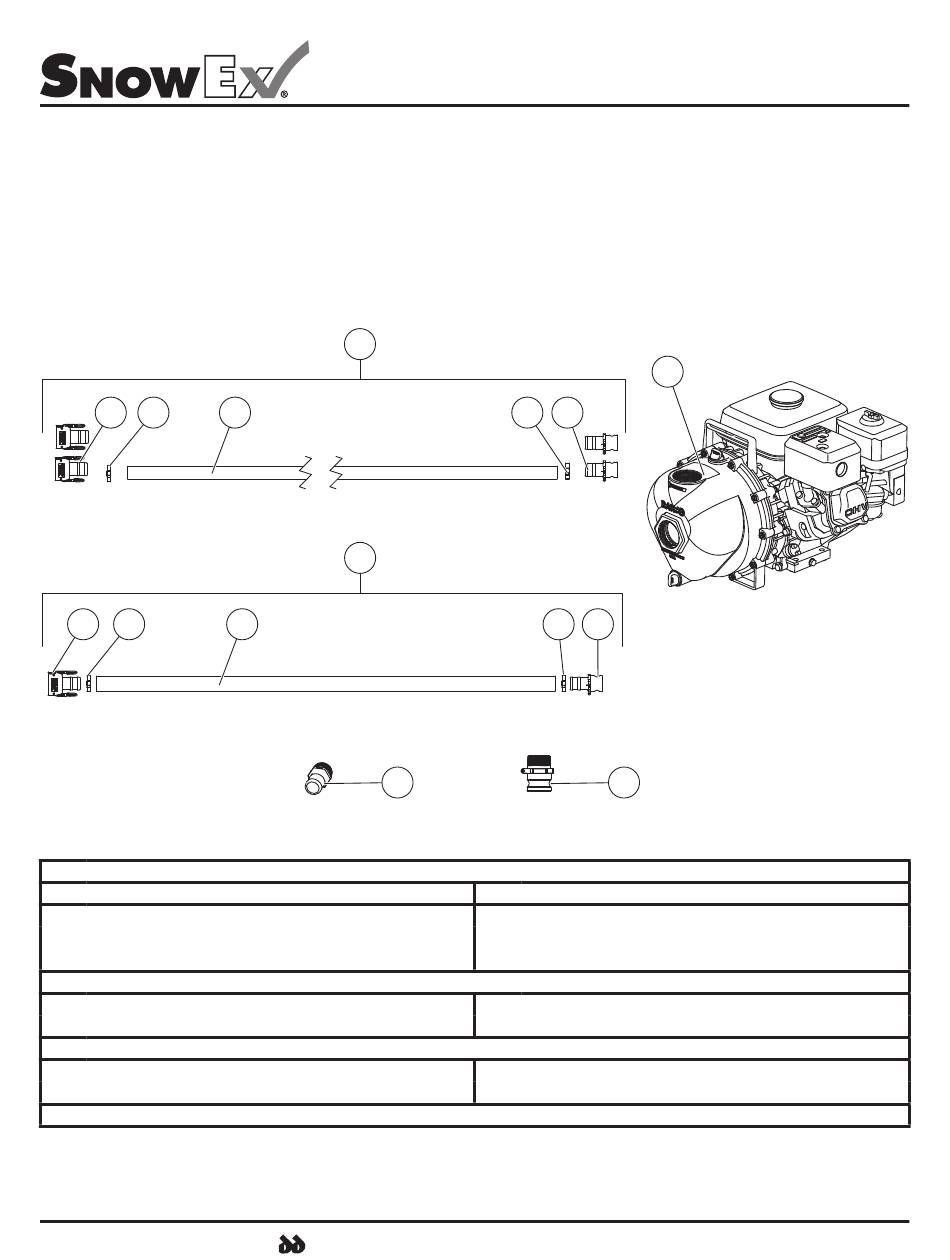

Gas Engine Transfer Pump
PARTS LIST
7
8
7
8
Item
Part
Qty Description
1
10781
1
Transfer Pump, Hypro 2" w/Cage
2
10937
1
Extension Hose Kit
3
11118NN
1
Suction Hose, 6'
Item 2
6
2
2" Male Adapter − 2" Hose Shank
7
2
2" Female Coupler − 2" Hose Shank
Item 3
6
1
2" Male Adapter − 2" Hose Shank
7
1
2" Female Coupler − 2" Hose Shank
Brine Pro™ 2000 Brine Maker
2
9
3
10
4
TPS-200 Gas Engine Transfer Pump
10937 Extension Hose Kit
11118NN Suction Hose 6'
SS = Stainless Steel
A DIVISION OF DOUGLAS DYNAMICS, LLC
8
6
8
6
5
Item
Part
Qty Description
4
F51731
1
Hose Barb, 2" NPT x 2"
5
F51766
1
2" Male Adapter − 2" Male NPT
8
2
Band Clamp, 1-3/4 − 2-3/4
9
1
2" x 25' Hose, EPDM
8
2
Band Clamp, 1-3/4 − 2-3/4
10
1
2" x 72" Suction Hose
TPS-200
October 1, 2017
Lit. No. 11814, Rev. 00
