Sternberg Lighting LUNARIA LU300 Installation Instructions

Bollard

Advertisement

Quick Links

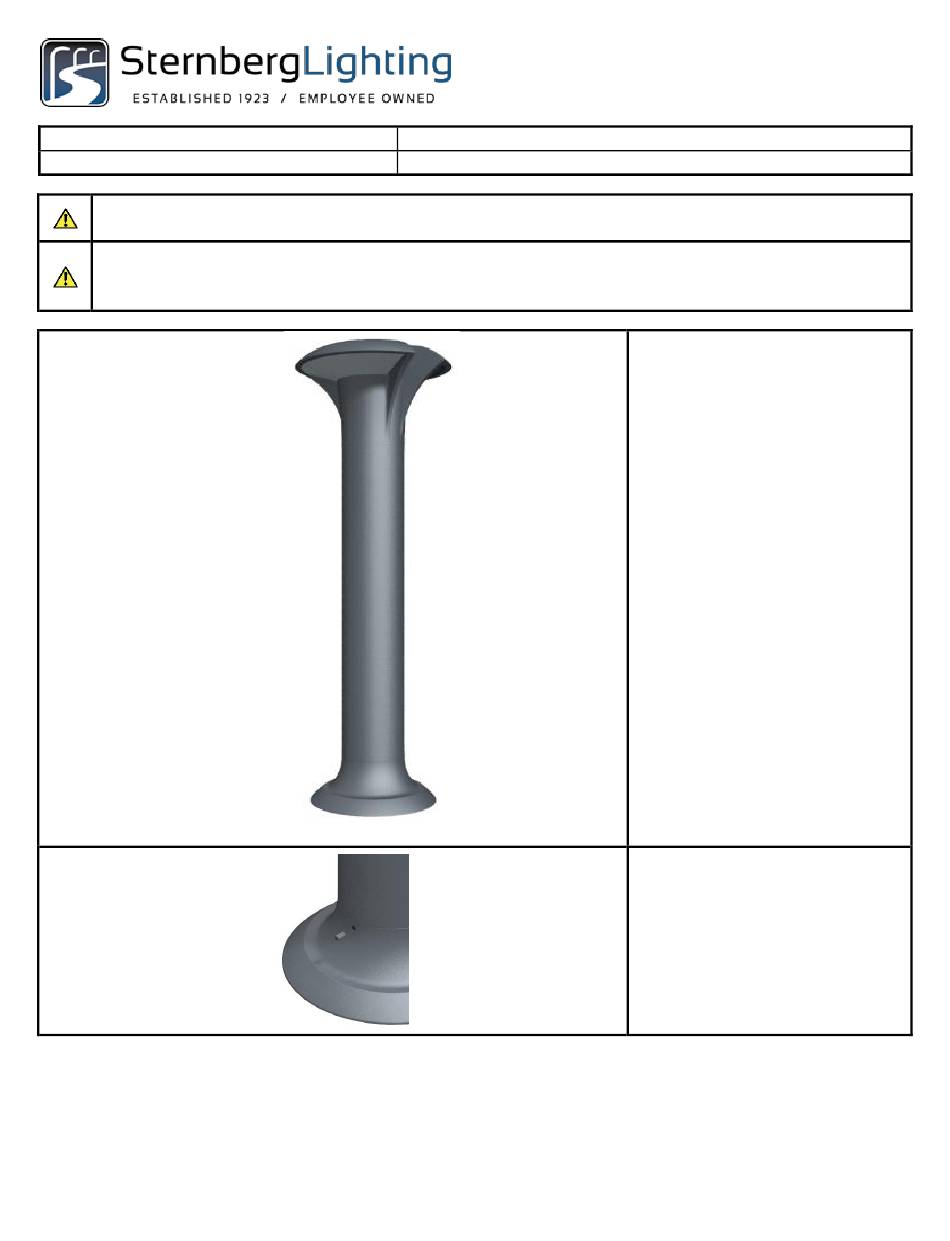

Installation Instructions
Effective Date: 10/14/2019
WARNING:
To avoid fire, shock or death, turn off and lockout power before performing any
maintenance.
CAUTION:
This Fixture must be wired in accordance with the National Electric Code (NEC)
and all applicable local codes. Proper grounding is required. A qualified electrician must do
all work.
[LU300 – LUNARIA Bollard], Installation Instructions, Revision A
Product: LU300 - LUNARIA Bollard
Part Description: Customer Installation Instructions

Step 1: Unpack Bollard.

Handle with care. Recycle the empty
packaging.

Step 2: Remove three set screws

from base to separate it with top of
bollard and save them.
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUNARIA LU300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sternberg Lighting LUNARIA LU300

  • Page 1 Installation Instructions Product: LU300 - LUNARIA Bollard Effective Date: 10/14/2019 Part Description: Customer Installation Instructions WARNING: To avoid fire, shock or death, turn off and lockout power before performing any maintenance. CAUTION: This Fixture must be wired in accordance with the National Electric Code (NEC) and all applicable local codes.
  • Page 2 Step 3: Carefully lift the top of bollard - UP then TWIST in 10 and UP as shown and put to the side. NOTE: Do not disconnect wires with driver assembly. Step 4: Remove the LED driver- bracket assembly and save the two sets of screws and washers.
  • Page 3 Step 6: Install the LED driver- bracket assembly back in to the base with existing two sets of screws and washers. Wiring Diagram Step 7: Connect supply wires to the driver assembly according to the wiring diagram. [LU300 – LUNARIA Bollard], Installation Instructions, Revision A Page 3 of 4...
  • Page 4 Step 8: Return the top of bollard onto the base – slide DOWN then TWIST in 10 and DOWN as shown. NOTE: Confirm assembly is level. Step 9: Secure with three saved set screws and fully tighten. FINAL VIEW Revision History Rev Description of Revision Release Date Manufacturing Design Engineer...
