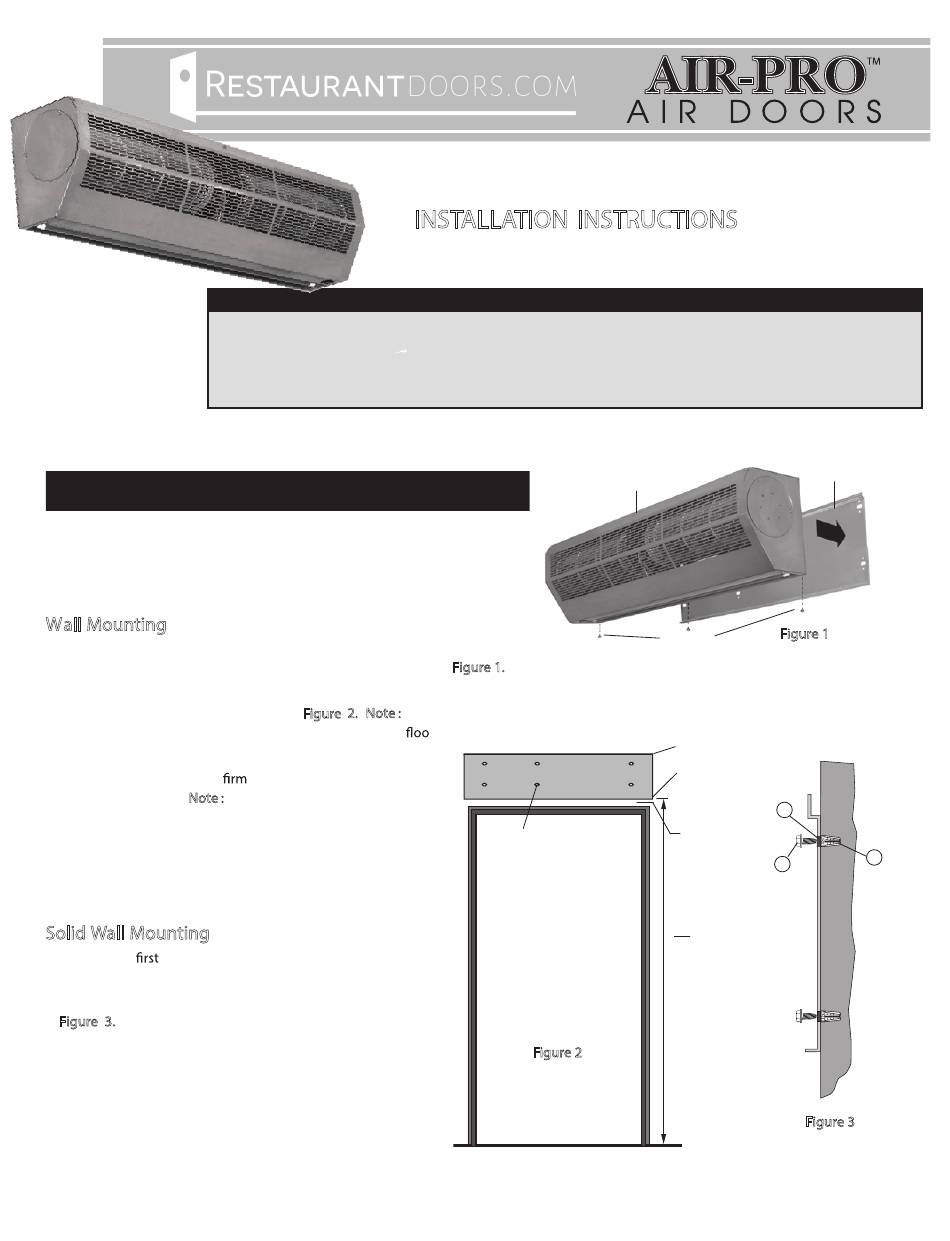

RESTAURANTDOORS.COM AIR-PRO AP-2-36-1-S S Installation Instructions

If the Air Door unit
By dropping the Air Door on its side during shipping the blower wheels may come out of the side bushing. This must be corrected
has been damaged in
prior to operating the unit. 1) Remove the intake grill and the four screws on the side of the unit to remove the end plate. 2) Loosen
shipping, immediately
the screw that attaches the blower wheels to the motor shaft and remove the blower wheels. 3) Insert the metal wheel from the
notify the transport
end of the blower wheels into the rubber bushing. 4) Slide the blower wheels into the side of the unit over the motor shaft and
company.
reattach the four screws to the side of the unit. 5) Tighten the blower wheels to the motor shaft and replace the intake grill.
MOUNTING (Interior Applications)
Never install your Air-Pro Air Door in an adverse environment,
such as, near splashing water, excess steam, explosive or
corrosive gases.
Wall Mounting
1. Remove the mounting plate locking screws from the back bottom corners of
the unit and detach the mounting plate from the back of the unit. Figure 1.
2. Keeping the mounting plate level, center it over the doorway opening. Be sure
the lipped edge of the plate is at the top. Figure 2. Note : The bottom edge of
the mounting plate should be no more than 86'' from the
3. Mark the pre-drilled holes, remove the plate and check to
make sure you are tying into
studs, header or block. Note : There should be at least 4
secure mounting holes used. If not, drill 4 new holes in the
mounting plate to accommodate a secure attachment. Drill the
wall holes.
4. Attach the mounting plate. (Screws not supplied)
Solid Wall Mounting
1. Perform the two steps under "Wall Mounting" (see above).
2. Mark the 4 outside pre-drilled holes and remove the plate.
3. Drill the 4 anchor holes and place anchors in each hole.
Figure 3.
4. Attach the mounting plate. (Screws not supplied)

INSTALLATION INSTRUCTIONS

BEFORE PROCEEDING, PLEASE READ AND SAVE THESE INSTRUCTIONS
r.
supporting material, i.e.
IMPORTANT
Air Door
Assembly
Mounting Plate
•
Pre-Drilled Mounting Holes
DOORWAY
OPENING
Figure 2
FLOOR
Mounting
Plate
Figure 1
Locking
Screws
Lipped Edge
Smooth Edge
2
Not to
exceed 3''
4
No more
than 86''
from
the floor
Figure 3
3
