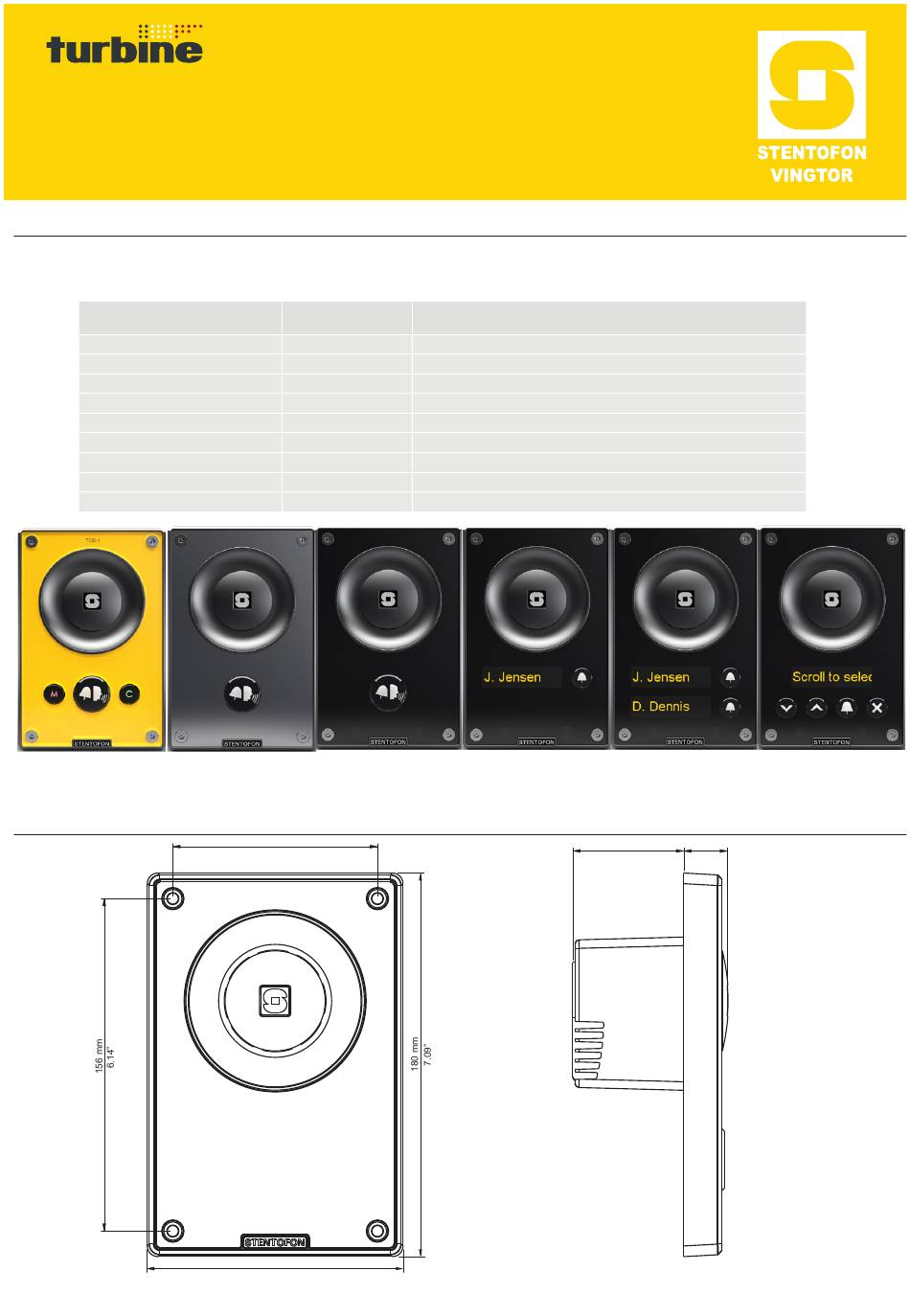

TCIS Turbine Compact IP Stations
Mounting Guide
1
Turbine Compact IP Stations
This document describes the dimensions, mounting procedure, and connections of the STENTOFON Turbine
Compact IP Stations. The Turbine Compact IP product range comprises the following stations & accessories:
ITEM NUMBER
1008111010/1028111010
1008111020
1008111030
1008111040
1008111050
1008111060
1008140010
1008140020
1008140050
TCIS-1/TCIS-1-V
1.1
TCIS Compact Station Dimensions
TYPE
TCIS-1/TCIS-1-V
TCIS-2
TCIS-3
TCIS-4
TCIS-5
TCIS-6
TA-1
TA-2
TA-5
TCIS-2
TCIS-3
96 mm
3.78"
120 mm
4.72"
ITEM NAME
Turbine Compact IP Standard-1
Turbine Compact IP Standard-2
Turbine Compact IP Standard-3
Turbine Compact IP Standard-4
Turbine Compact IP Standard-5
Turbine Compact IP Standard-6
Turbine On-Wall Back Box
Turbine Flush Mount 2-Gang Double-Depth Back Box
Turbine Bracket for Flush Mount Back Box
TCIS-4
TCIS-5
52 mm
20.5 mm
2.05"
0.81"
TCIS-6
Advertisement
Table of Contents
Related Manuals for Stentofon Vingtor Turbine Compact IP TCIS Series
Summary of Contents for Stentofon Vingtor Turbine Compact IP TCIS Series
- Page 1 TCIS Turbine Compact IP Stations Mounting Guide Turbine Compact IP Stations This document describes the dimensions, mounting procedure, and connections of the STENTOFON Turbine Compact IP Stations. The Turbine Compact IP product range comprises the following stations & accessories: ITEM NUMBER TYPE ITEM NAME 1008111010/1028111010...
- Page 2 On-Wall Surface Mounting On-Wall Surface Mount Back Box - TA-1 Mounting Hole Mounting Hole 25 mm 1” Mounting holes are to be drilled as shown. Max. recommended screw diameter: ISO M6 or ANSI 1/4". Screw length must be greater than 25 mm or 1". A4 stainless steel socket head screws/bolts are recommended.
-
Page 3: Flush Mounting
Flush Mounting Flush Mount 2-Gang Double-Depth Back Box - TA-2 1.81? 0.98? 46 mm 25 mm 89 mm / 3.50? 96 mm / 3.78? 23 mm 0.90? SIDE L It is recommended to utilize back boxes with weep holes at the bottom Flush Mount Bracket - TA-5 L The TA-5 Bracket is mandatory for flush mounting. - Page 4 Flush Mounting Procedure Flush Mount 2-Gang Back Box Bracket Gasket Turbine Station Mount the 2-gang back box into the wall Mount the bracket onto the back box Fit the gasket onto the bracket with the ridged side facing down – Plug the Ethernet cable into the RJ-45 port on the station Mount the Turbine station onto the bracket with the M5 fasteners provided Connections...
