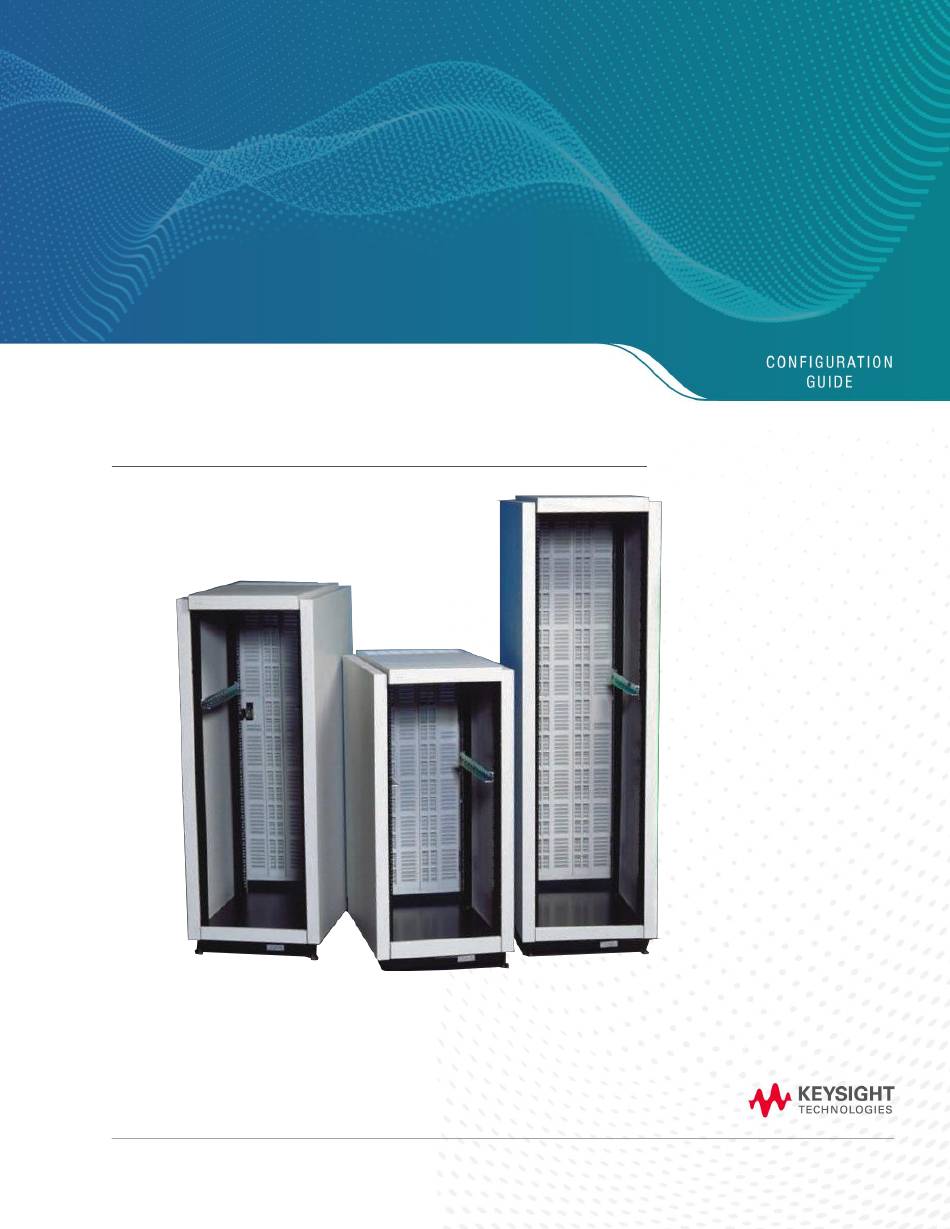

- Page 1 Enclosure Solutions Rack Cabinets, Accessories, and Rackmount Kits Find us at www.keysight.com Page 1...
-
Page 2: Table Of Contents
Table of Contents Rack Solution for Keysight Systems ............................4 Keysight Rack Features ..............................4 Rack Specifications ................................7 E7590A Configurations................................8 E3661B and E3662B Configurations ............................. 9 Multi-Bay System Configurations ............................11 Rack Accessories .................................. 12 Power Distribution Units ..............................12 PDU Specifications .................................. - Page 3 Ordering information for Testmobile Carts ........................38 Testmobile Printer/Plotter Stand............................39 Testmobile Work Surface ..............................40 Storage Drawer ................................. 41 Find us at www.keysight.com Page 3...
-
Page 4: Rack Solution For Keysight Systems
Standar d rack cabinet (E3661B Standard rack cabinets: E3661B (32 EIA), E7590A (25 EIA), E3662B (41 EIA) Shipping Features equipment installation saving time and money. Accessories can be ordered and All racks and accessories are shipped with will be shipped ready to be integrated basic assembly completed, as shown. - Page 5 Load a Rack in Less Time power to the cabinet. An illuminated master More than just a way of storing The design of Keysight support rails can switch, which is conveniently located on the instruments, the racks reflect Keysight’s cut in half the time required to install front of the rack, provides easy access to reputation for quality and design.
- Page 6 Enhance Stability Improve Cable Management Ventilation Keysight racks, including the 1.3 m, 1.6 m and Keysight standard racks include a A front mounted retractable anti-tip 2.0 m, have an additional 100 mm of internal vented top cap and 100 mm additional stabilizer that can be extended into space that is available at the rear of the rack.
-
Page 7: Rack Specifications
851 mm (33.5 in) *Interior = EIA units = Rack-mountable space. Front to rear column hole spacing: 610 mm (24 in) Note: Local versions – order E7590AA, E3661BA, E3662BA for Asia, or E7590AE, E3661BE, E3662BE for Europe. Find us at www.keysight.com Page 7... -
Page 8: E7590A Configurations
Solid side panels and a lockable vented rear door are standard equipment on the Factory installed PDUs are available in a Keysight E7590A (1.3 m, 25 EIA Units) 100-120V North American configuration rack cabinet. To provide better value and (AW3) or a 200-240V International save integration time, choose a variety of configuration (AW5). -
Page 9: E3661B And E3662B Configurations
E3661B and E3662B Configurations The Keysight E3661B (1.6 m, 32 EIA Units) Factory installed PDUs are available in a and E3662B (2.0 m, 41 EIA Units) rack 100-120 V North American configuration (AW3) or a 200-240 V International cabinets have a variety of options. Each configuration (AW5). - Page 10 Option AW5 (To add a 2nd PDU by yourself, order accessory E4457-67000) 5-20 P non-locking Must read box E3661B & E3662B Racks require one option Configuration Examples PDU option (AW3 or AW5) Rack with sides, rear door and PDU (100-120 V) :...
-
Page 11: Multi-Bay System Configurations
Multi-Bay System Configurations Keysight tie kits allow you to create multi- bay solutions. These kits connect rack columns, and provide clearance for front and rear door operation. Start by filling in the configuration guide (left) and then select the kits for your application. -
Page 12: Rack Accessories
AW5, 220 V). A second PDU can be ordered purposes if no fan is installed. per the chart below. Power cord and plug • Keysight offers various power cords. See the power cord selection to select the power cord that is appropriate for your location and rack solution. -
Page 13: Pdu Specifications
2 m (78.74 in) Plug 5-20 P non-locking No plug; cord is undetermined Receptacle Types: IEC-320 C13 IEC-320 C13 Receptacle — IEC-320 C19 IEC-320 C19 Receptacle Standards Meets UL/CSA standards Meets IEC-950 and VDE standards Find us at www.keysight.com Page 13... -
Page 14: Plexiglas ® Front Door
60 mm (2.4 in) 60 mm (2.4 in) Width 513 mm (20.2 in) 513 mm (20.2 in) 513 mm (20.2 in) Compatibility 1.3 m rack, bare rack 1.6 m rack, bare rack 2.0 m rack, bare rack Find us at www.keysight.com Page 14... -
Page 15: Rear Doors
1 Vented rear door 1 Latch catch Mounting Ordering Information – Vented Rear Doors hardware Part No. Description E4477-67000 Vented rear door for 1.6 m rack E4479-67000 Vented rear door for 2.0 m rack Find us at www.keysight.com Page 15... -
Page 16: Extractor Fans
Extractor Fans Extractor fans are used to increase air flow through the rack cabinet. Keysight’s fan improves natural convection cooling by increasing the airflow in the rack. Use of the fan enhances the movement of warm air from the bottom of the rack up... -
Page 17: Drawers
8.16 kg (18 lbs) Color Quartz gray Quartz gray Length 521 mm (20.5 in) 521 mm (20.5 in) Height 89 mm (3.5 in) 133 mm (5.25 in) Width 483 mm (19 in) 483 mm (19 in) Find us at www.keysight.com Page 17... -
Page 18: Stationary Shelf
Sliding Shelf The sliding shelf provides a flat surface with full product accessibility. It can Specifications be used in all Keysight racks to support equipment that may not have its own J1526 rackmount kit. The shelf and slides are Material Cold-rolled steel preassembled for easy installation. -
Page 19: Work Surface
610 mm (24 in.) to 387 mm (15.24 in.) Width 600 mm (23.6 in.) Load Capacity 22.7 kg (50 lbs) Work surface (46298SZ) What you get in the box Work surface Support rails 2 Left, 2 right filler rail panels Mounting hardware Find us at www.keysight.com Page 19... -
Page 20: Ballast
Keysight rack cabinets include a standard, pull-out anti-tip foot that can be extended temporarily for servicing. Ballast provides an extra margin of safety to counteract the... -
Page 21: Monitor And Keyboard Rack Mount Kits
Monitor base Safely and securely install your monitor with Decorative panels the Keysight monitor rackmount kit. The Keysight monitor rackmount kit can 2 Rear brackets accommodate 14” to 19” monitors. The kit Mounting hardware consists of a shelf, all required mounting hardware, and cosmetic panels for the sides of the monitor. -
Page 22: Keyboard And Mouse Rackmount Kits
(keyboard and mouse not included). Consider purchasing the ballast kit for added stability (C2790AC) Retractable Keyboard Kit Keysight’s compact shelving kit provides a convenient enclosed keyboard system that requires minimum rack space, saving valuable space for your instruments. Retractable keyboard kit, retracted in rack The kit can accommodate any standard keyboard and mouse. - Page 23 Mounting hardware Depth 318 mm (12.52 in) Width 600 mm (23.62 in.) Mouse pad EIA Unit Ordering Information Part No. Description EIA Units E7714AC Fixed keyboard kit, fits all racks Fixed keyboard kit (E7714AC) Find us at www.keysight.com Page 23...
-
Page 24: Instrument Rackmount Kits
25-30, include metric fasteners Mounting Other Instruments to make them compatible with metric-fastener Some Keysight instruments are use non- cabinets. Metric-fastener cabinets are identified with System II cabinets. These products typically a “metric” embossment have rackmounting options. -
Page 25: Handles And Rackmount Flange Kits
Flanges secure the instrument to the the appropriate option at the time of order. Handles with Rack Flanges front mounting column of the rack. All Keysight flange kits attach to the Flange Kit for Instruments with instrument using pre-existing holes in Previously Supplied Handles... - Page 26 This kit includes both flanges and handles. • Flanges attach to pre-existing holes in the instrument case Flange kit with handles (5063-9223) (1CP020A) What you get in the box 2 Handles 2 Flanges Metric fasteners Mounting screws Find us at www.keysight.com Page 26...
- Page 27 Rackmount Flange Kit for Instruments with Previously Supplied Handles Certain Keysight instruments are supplied with front handles. These flange kits have a special cut out to accommodate the handles. • Flanges attach to pre-existing holes in the instrument case What you get in the box...
-
Page 28: Rackmount Adapter Kits
+ screws + screws + screws Side by side modules of equal depth require a Lock Link Kit (5061-9694) 1/4 MW can be center mounted using two of these kits Find us at www.keysight.com Page 28... - Page 29 133.4 mm (5.25 in.) 177.8 mm (7 in.) Width 447.5 mm (17.618 in.) 489 mm (19.25 in.) 489 mm (19.25 in.) Load Capacity 22.7 kg (50 lbs) 22.7 kg (50 lbs) 22.7 kg (50 lbs) Find us at www.keysight.com Page 29...
- Page 30 Description Module Height All heights 1494-0015 Support shelf slide kit, required for installation of the support shelf. What you get in the box Slide kit Mounting hardware Support shelf (5063-9255) and slide kit (1494-0015) Find us at www.keysight.com Page 30...
- Page 31 Lock link kit for linking submodule cabinets of equal height 5062-3999 Locking feet kit for full module vertical combinations What you get in the box – Locking Feet Kits Locking feet Mounting hardware Locking feet kit (5062-3999) Find us at www.keysight.com Page 31...
-
Page 32: Rail And Slide Kits
Rail and Slide Kits Proper rail selection is important to to each EIA unit in the rack. Vertical Keysight offers a variety of rail kits to maximize the use of all EIA units in a adjustment between instruments is meet instrument and controller rack rack and to assure proper fit vertically minimized by selecting the proper rail. - Page 33 What you get in the box 1 Slide assembly Mounting hardware End Brackets For non-Keysight racks, end-bracket kits are available for both Keysight standard- and heavy-duty slide kits. Slotted hole arrays in the brackets provide for front- to-back rack column spacing of up to a maximum of 609.45 mm (24 in) for standard slides and...
-
Page 34: Small Parts
Nominal impedance 50 ohms Voltage rating 500 V RMS Frequency range DC to 300 MHz Contact resistance Center: 1.5 Milliohm (max) Outer: 0.2 Milliohm (max) Life Minimum 10,000 insertion/withdrawal cycles BNC specifications Meets MIL-C-39012 Find us at www.keysight.com Page 34... -
Page 35: Rack Filler Panels
Rack Filler Panels Spaces between instruments on the front face of the Keysight rack cabinet can be filled with metal filler panels. Filler panels provide an attractive system and eliminate dust from gathering on equipment. • Quartz gray • Each panel is 19 inches wide. -
Page 36: Testmobiles And Accessories
Unlike general-purpose cart design, or standing at the test area. Additionally, instruments easy. All casters swivel, which Keysight testmobile carts have a nylon several operators can cost effectively share lets the cart move right up to the strap and steel buckle that secure expensive equipment that has been workbench. -
Page 37: Testmobile Key Features
Testmobile Key Features Keysight’s Testmobile Carts offer the following attractive features: • Ergonomic design. Test equipment is Testmobile Scope Cart, 1180CZ operator-accessible whether seated or The Scope Cart is conveniently shipped standing. virtually assembled, except for its handle • Heavy-duty casters make moving and casters. -
Page 38: Testmobile System Cart, 1181Bz
432 mm (17.0 in) 635 mm (25.0 in) 12 EIA units) Instrument Depth Casters 101 mm (4 in) diameter 127 mm (5 in) diameter * Vertical rack space is reduced the more the tilt tray is angled. Find us at www.keysight.com Page 38... -
Page 39: Testmobile Printer/Plotter Stand
What you get in the box Printer tray Testmobile Printer/Plotter Stand Vertical side supports Conveniently mount a printer or plotter Torx T15 screwdriver on top of a system or instrument testmobile with the Keysight testmobile printer/plotter stand. Specifications 35181HZ Material Cold-rolled steel Weight 8.16 kg (18 lbs) -
Page 40: Testmobile Work Surface
Testmobile Work Surface Keysight’s testmobile work surface Specifications 250.4 mm provides additional work space on a 35181KZ Material Cold-rolled steel testmobile cart. It can be used for Weight 4.99 kg (11 lbs) 457.2 mm accessories, writing, or a keyboard Color Quartz gray and mouse. -
Page 41: Storage Drawer
16.375 in 16.375 in 20.5 in 20.5 in inside Storage Drawer inside inside inside Keysight’s testmobile storage drawer provides storage space for 79.5 mm miscellaneous items such as tools, 124 mm 3.125 in 4.875 in manuals, probes or cables. inside... - Page 42 For more information on Keysight Technologies’ products, applications or services, please contact your local Keysight office. The complete list is available at: www.keysight.com/find/contactus Find us at www.keysight.com Page 42 This information is subject to change without notice. © Keysight Technologies, 2019, Published in USA June 4, 2019, 5980-0450E...
- Page 43 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Keysight 34192A 34190A 34191A 34194A 34193A...
