Summary of Contents for HEATpool Titan Series

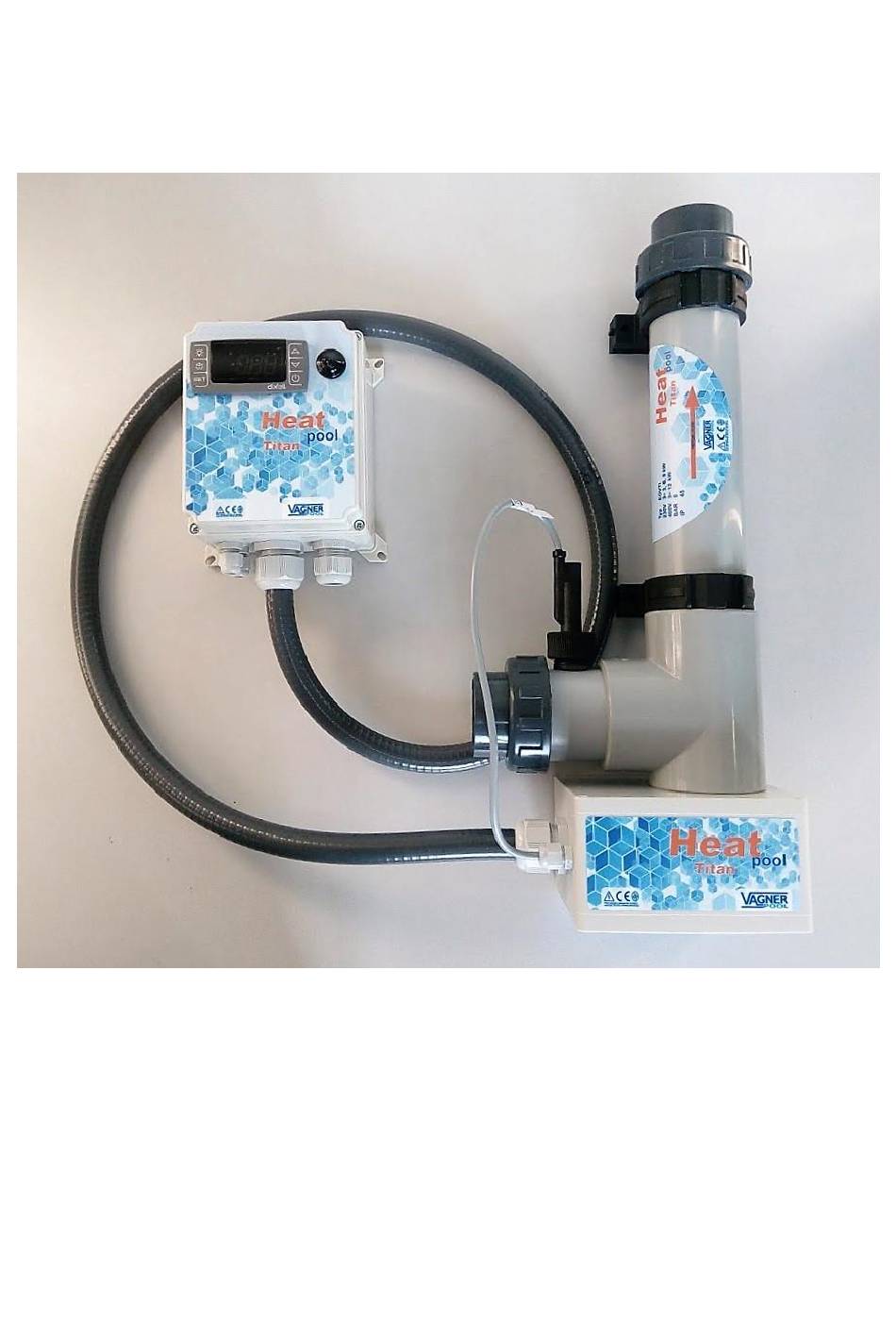

- Page 1 HEATpool ELEKTRICKÝ PRŮTOKOVÝ OHŘÍVAČ VODY HEATpool Titan THE ELECTRIC FLOW WATER HEATER OF THE HEATpool Titan TYPE ELEKTRISCHER DURCHLAUFWASSERERHITZER TYPE HEATpool Titan ЭЛЕКТРИЧЕСКАЯ ВОДОГРЕЙНАЯ КОЛОНКА НЕПРЕРЫВНОГО ДЕЙСТВИЯ ТИП HEATpool Titan HEATpool - TITAN ELECTRIC HEATERS...
-
Page 2: Safety Measures
✓ Install the electric heater in a place inaccessible to the public. ✓ It is necessary to use a feedback with the filtration pump. ✓ HEATpool – TITAN is also suitable for pools with water treatment using salt water as well as sea water. -
Page 3: Installation
50cm in the direction of water flow before the heating. After installation, the connection must be tested. HEATpool - TITAN heaters are equipped with detachable connection to water circuit, enabling easy handling if necessary. - Page 5 ✓ Cables used for the installation of the length of up to 20 m are cables with 5 conductors (3 phases + protective conductor + grounding conductor) (5x2,5 mm² for 3 and 6kW heaters and 5x4 mm² for 9 and 12kW heaters. ✓...
- Page 6 TYP : EOV EOV - elektrický ohřev - tepelná pojistka - topné těleso - průtoková klapka - proudový chránič FI 30mA - stykač - jistič - ovládací pojistka - regulační termostat - vypínač topení 1R1 - kontakt stykače filtrace EOV = electric heating TP = thermal fuse TT = heating unit PK = flow flap...
- Page 7 For single-phase 3 and 6 kW heaters ✓ Cables used for the length of pipe of up to 20 m are cables with 3 conductors (phase + protective conductor + grounding conductor) (3x4 mm² for 3 kW heaters and 3x6 mm² for 6 kW heaters.
- Page 8 For single-phase 9 kW heaters ✓ Cables used for the length of pipe of up to 20 m are cables with 3 conductors (phase + protective conductor + grounding conductor) (3x10 mm²) ✓ Grounding conductor (green & yellow) must be connected to the grounding terminal marked with the symbol (┴).
- Page 9 TYP : EOV EOV - elektrický ohřev - tepelná pojistka - topné těleso - průtoková klapka - proudový chránič FI 30mA - stykač - jistič - ovládací pojistka - regulační termostat - vypínač topení 1R1 - kontakt stykače filtrace EOV = electric heating TP = thermal fuse TT = heating unit PK = flow flap...
- Page 10 Switching filter feedback on Filter feedback must be switched on using a cable of grey terminals marked with the letter (P) to an auxiliary switching contact of filtration contactor. A cable with two conductors of the cross-section of 1,5 mm² is used. Cable inlet in the heater box is sealed in a cable bushing.
-
Page 11: Control Measures
- water flow to heater intake stops - thermostat instruction interrupted Safety thermostat HEATpool – TITAN heaters are equipped with a safety thermostat limiting temperature to max. 54- C for manual control. Activities within the frame of the warranty shall not extend the warranty.
