Lutron Electronics AuroRA AR-CA Installation Instructions

Troubleshooting

Symptom
Possible Cause
The Central Antenna appears to be not
DC Adapter not plugged in.
working.
• Check to be sure DC Adapter is fully plugged into the Central Antenna and
the 120 V
DC Adapter faulty.
• Replace DC Adapter with Lutron model T120-9DC-3-WH.
Central Antenna not activated.
• Follow the steps under "Activating the Central Antenna" on page 3.
Central Antenna not in range.
• Verify Central Antenna is within 60 ft. (18 m) of the Security Interface or
another Central Antenna.
LIMITED WARRANTY
Subject to the exclusions described below, for a period of one (1) year after the date of
shipment by Lutron, Lutron warrants each new product ("Product") to be free from manu-
facturing defects. Lutron will, at its option, repair the defective part or provide comparable
replacement parts so long as Lutron is promptly notified of the defect within the warranty
period. Replacement parts provided by Lutron may be new, used, repaired, reconditioned,
and/or made by a different manufacturer.
EXCLUSIONS TO LIMITED WARRANTY
This Warranty does not cover, and Lutron and its suppliers are not responsible for:
1. Damage, malfunction or inoperability diagnosed by Lutron or a Lutron approved third
party as caused by normal wear and tear, abuse, misuse, incorrect installation, neglect,
accident, or interference from radio frequency or infrared sources or obstacles, such as,
but not limited to (a) use of incorrect line voltages, fuses or circuit breakers; (b) failure to
install, maintain and operate the Product pursuant to the operating instructions provided
by Lutron and the applicable provisions of the National Electrical Code and of the Safety
Standards of Underwriter's Laboratories; (c) use of incompatible devices or accessories;
(d) failure to maintain equipment under specified ambient temperature; (e) unauthorized
repairs or adjustments; (f) vandalism; and (g) an act of God, such as fire, lightning, flood-
ing, tornado, earthquake, hurricane or other problems beyond Lutron's control.
2. On-site labor costs to diagnose issues with, and remove, repair, replace, adjust, reinstall
and/or reprogram the Product, at Lutron's option, all of which will be paid by Customer at
the then current service price.
3. Where applicable, components and equipment external to the Product, such as, lamps;
non-Lutron ballasts, sockets, and fixtures; fixture wiring between ballasts and lamps;
building wiring between dimmers or dimmer panels and lamps and between controls and
controls, dimmers or dimmer panels; and other manufacturers' equipment not provided
by Lutron, such as time clocks; audio-visual equipment; motion detectors; photosensors;
driveway sensors; pressure pads; shades; and spas.
4. The cost of repairing or replacing other property that is damaged when the Product does
not work properly, even if the damage was caused by the Product.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. ALL IMPLIED
WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM THE DATE
OF SHIPMENT.
NO LUTRON AGENT, EMPLOYEE OR REPRESENTATIVE HAS ANY AUTHORITY TO BIND
LUTRON TO ANY AFFIRMATION, REPRESENTATION OR WARRANTY CONCERNING THE
PRODUCT. UNLESS AN AFFIRMATION, REPRESENTATION OR WARRANTY MADE BY AN
AGENT, EMPLOYEE OR REPRESENTATIVE IS SPECIFICALLY INCLUDED HEREIN, OR IN
STANDARD PRINTED MATERIALS PROVIDED BY LUTRON, IT DOES NOT FORM A PART
OF THE BASIS OF ANY BARGAIN BETWEEN LUTRON AND CUSTOMER AND WILL NOT IN
ANY WAY BE ENFORCEABLE BY CUSTOMER.
IN NO EVENT WILL LUTRON OR ANY OTHER PARTY BE LIABLE FOR EXEMPLARY,
CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO DAMAGES FOR PERSONAL INJURY, FAILURE TO MEET ANY DUTY, INCLUDING
OF GOOD FAITH OR REASONABLE CARE, NEGLIGENCE, OR ANY OTHER LOSS
WHATSOEVER), NOR FOR ANY REPAIR WORK UNDERTAKEN WITHOUT LUTRON'S
PRIOR WRITTEN CONSENT ARISING OUT OF OR IN ANY WAY RELATED TO THE
INSTALLATION, DEINSTALLATION, USE OF OR INABILITY TO USE THE PRODUCT OR
OTHERWISE UNDER OR IN CONNECTION WITH ANY PROVISION OF THIS WARRANTY,
EVEN IN THE EVENT OF THE FAULT, TORT (INCLUDING NEGLIGENCE), STRICT
LIABILITY, BREACH OF CONTRACT OR BREACH OF WARRANTY OF LUTRON OR ANY
SUPPLIER, AND EVEN IF LUTRON OR ANY OTHER PARTY WAS ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
receptacle.
NOTWITHSTANDING ANY DAMAGES THAT CUSTOMER MIGHT INCUR FOR ANY REASON
WHATSOEVER (INCLUDING, WITHOUT LIMITATION, ALL DIRECT DAMAGES AND ALL
DAMAGES LISTED ABOVE), THE ENTIRE LIABILITY OF LUTRON AND OF ALL OTHER
PARTIES UNDER THIS WARRANTY ON ANY CLAIM FOR DAMAGES ARISING OUT OF
OR IN CONNECTION WITH THE MANUFACTURE, SALE, INSTALLATION, DELIVERY, USE,
REPAIR, OR REPLACEMENT OF THE PRODUCT, AND CUSTOMER'S SOLE REMEDY
FOR THE FOREGOING, WILL BE LIMITED TO THE AMOUNT PAID BY CUSTOMER FOR
THE PRODUCT. THE FOREGOING LIMITATIONS, EXCLUSIONS AND DISCLAIMERS
WILL APPLY TO THE MAXIMUM EXTENT ALLOWED BY APPLICABLE LAW, EVEN IF ANY
REMEDY FAILS ITS ESSENTIAL PURPOSE.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS WHICH VARY FROM STATE TO STATE. SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
WARRANTY CLAIMS, TECHNICAL ASSISTANCE AND WARRANTY INFORMATION
Contact the Lutron Technical Support Center at the numbers provided below or your local
Lutron sales representative with questions concerning the installation or operation of the
Product or this Warranty, or to make a warranty claim. Please provide the exact model
number when calling.
USA and Canada (24 hrs/7days)
+1.800.523.9466
Other countries (8 a.m. - 8 p.m. ET)
+1.610.282.3800
Fax +1.610.282.3090
http://www.lutron.com
FCC INFORMATION
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equip-
ment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio or television
reception. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the seperation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by Lutron Electronics Co. could
void the user's authority to operate this equipment.
These products may be covered under one or more of the following U.S. patents: 5,838,226;
5,848,054; 5,905,442; 6,687,487; 6,803,728 and corresponding foreign patents. U.S. and
foreign patents pending.
Lutron, AuroRa and the sunburst logo are registered trademarks of Lutron Electronics Co., Inc.
NEC is a registered trademark of the National Fire Protection Association.
© 2007 Lutron Electronics Co., Inc.
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299, U.S.A.
Made and printed in the U.S.A. 3/07 P/N 044-117 Rev. A
Installation Instructions for
Central Antenna
Read all instructions completely before installation.
Important Notes
1. Install in accordance with all national and local electrical
codes.
2. Operate system in temperatures between 0 °C
(32 °F) and 40 °C (104 °F).
3. To clean, wipe with a clean damp cloth. Do not use
any chemical cleaning solutions.
4. Do not paint the Central Antenna.
5. All AuroRa controls must be located within 30 feet (9 m)
of an AuroRa Security Interface or Central Antenna. The
Central Antenna must be located within 60 feet (18 m)
of the Security Interface or another Central Antenna.
6. A maximum of one additional Central Antenna may be
added to an AuroRa system.
7. Use only the DC adapter provided by Lutron
(T120-9DC-3-WH) with your Central Antenna. Using an
adapter not rated at the following specifications could
damage the Central Antenna and possibly overheat the
adapter:
• Input: 120 V 60 Hz 6.5 W
• Output: 9 V 300 mA NEC Class 2; IEC PELV
®
8. The range and performance of the AuroRa system is
highly dependant on a variety of complex factors such
as:
• Distance between system components
• Geometry of the home
• Construction of walls separating system
components
• Electrical equipment located near system
components
If you are unsure how to lay out your system, or have any
questions, call the Lutron Technical Support Center at
1.800.523.9466.

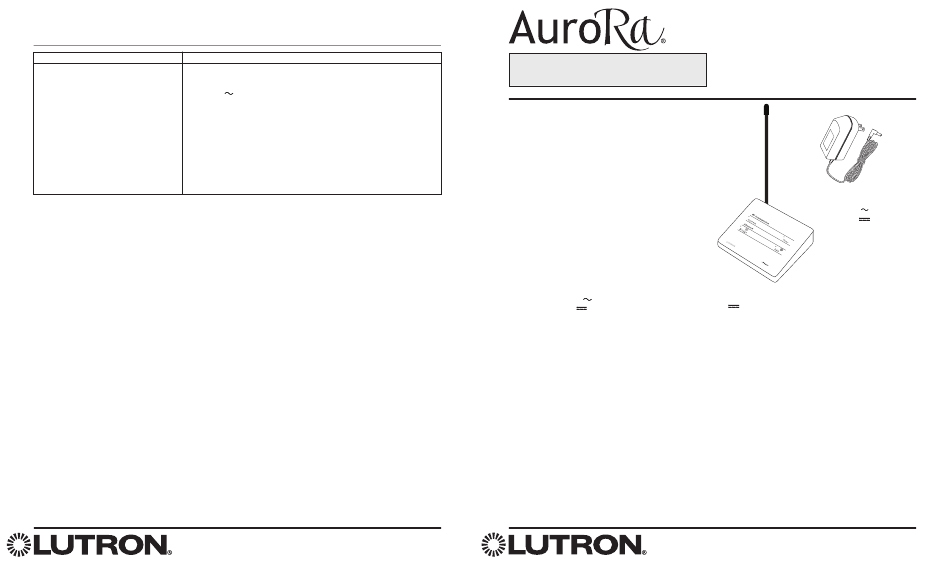

AuroRA Central Antenna
®
AR-CA
Plug-in Adapter
T120-9DC-3-WH
Plug-in Adapter
T120-9DC-3-WH
Input: 120 V 60 Hz 6.5 W
Output: 9 V 300 mA
NEC Class 2;
®
IEC PELV
Central Antenna
AR-CA
9 V 300 mA
